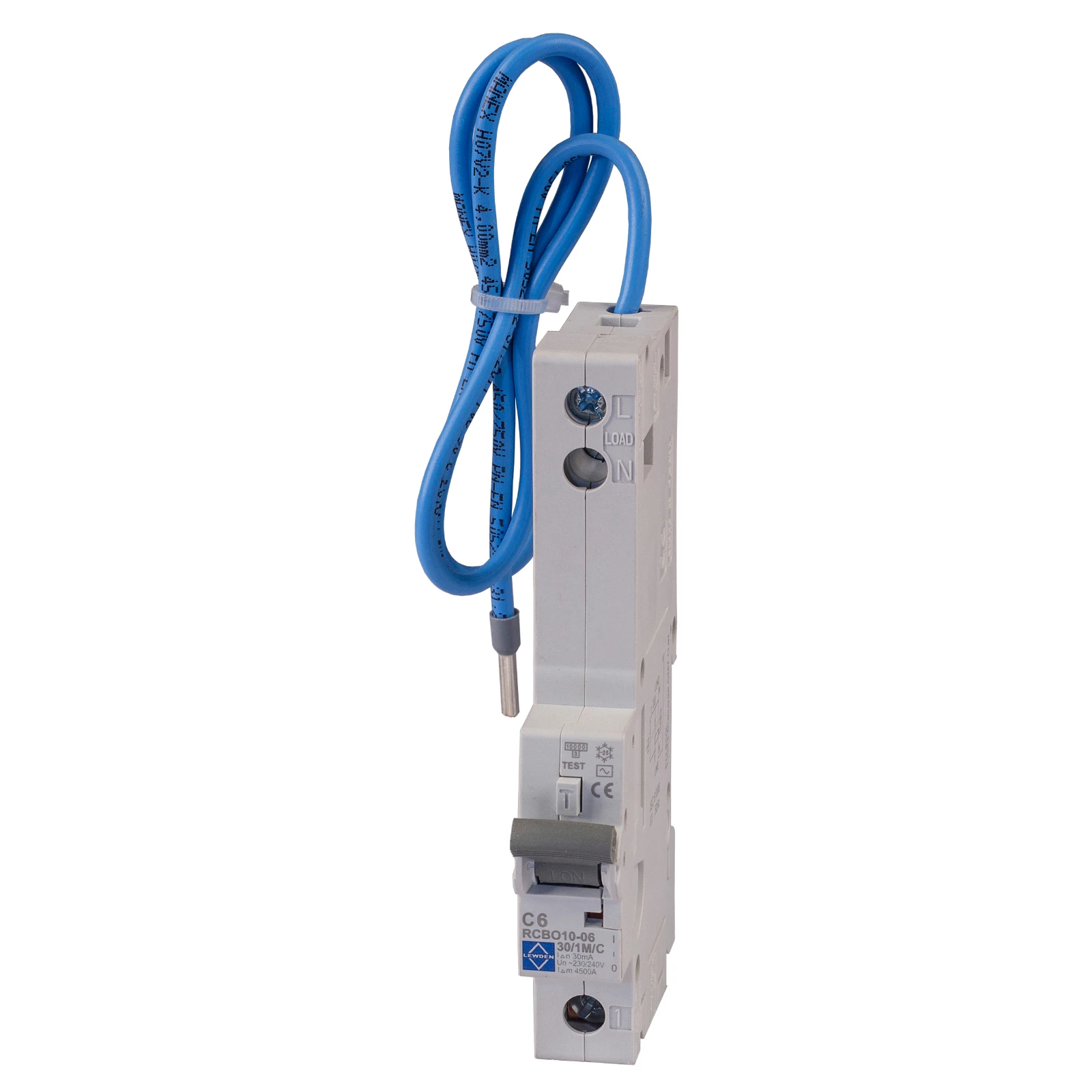

Lewden RCBO 6A, 30mA Trip, C Type, 10kA, 1 Module (RCBO10-06/30/1M/C)
Lewden RCBO 6A, 30mA Trip, C Type, 10kA, 1 Module (RCBO10-06/30/1M/C)
Lewden RCBO 6A, 30mA Trip, C Type, 10kA, 1 Module (RCBO10-06/30/1M/C) - Image 2
Lewden RCBO 6A, 30mA Trip, C Type, 10kA, 1 Module (RCBO10-06/30/1M/C) - Image 3

Lewden RCBO 6A, 30mA Trip, C Type, 10kA, 1 Module (RCBO10-06/30/1M/C)

£41.95 Incl. VAT

Protects against earth leakage, over currents and short circuits within one module. · · · 6A · · Single Pole · · C Type · · Short-circuit breaking capacity 10kA · · Din rail mounted

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RCBO10-06/30/1M/C Categories: , , Brand: Part Number: 2500976613

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Mounting method DIN rail Number of poles 1 Recess depth 76.1 mm Width in number of modular spacings 1 Rated insulation voltage Ui – V Surge current capacity – kA Rated fault current 0.03 A Short-circuit breaking capacity (Icw) 10 kA Rated voltage 230 V Rated current 6 A Pollution degree – Rated impulse-withstand voltage (Uimp) – kV Connectable conductor cross section solid-core – mm² Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C With interlocking device No
