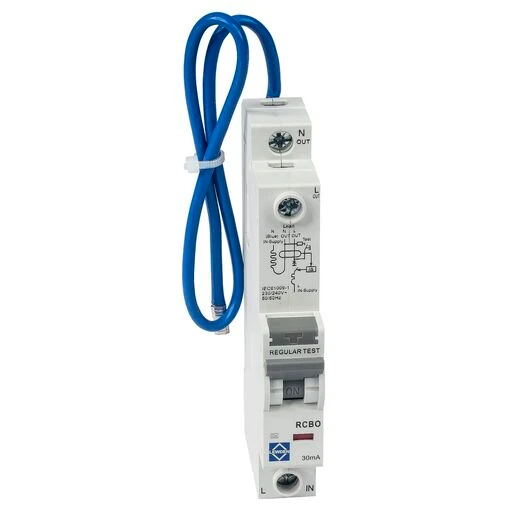

Lewden RCBO (RCBO-16/30/SPA) 16A 30mA B Curve 6kA Type A
Lewden RCBO (RCBO-16/30/SPA) 16A 30mA B Curve 6kA Type A
Lewden RCBO (RCBO-16/30/SPA) 16A 30mA B Curve 6kA Type A - Image 2
Lewden RCBO (RCBO-16/30/SPA) 16A 30mA B Curve 6kA Type A - Image 3
Lewden RCBO (RCBO-16/30/SPA) 16A 30mA B Curve 6kA Type A - Image 4

Lewden RCBO (RCBO-16/30/SPA) 16A 30mA B Curve 6kA Type A

£19.88 Incl. VAT

RCBO device compatibale with Denmans Steeple and Curve consumer units. These devices are ‘Type B’ in Terms of tripping curve and ‘Type A (or class A) for the RCD side. · · · Tripping Characteristic: B · · 230-240VAC · · Rated Residual Current: 30mA

112 in stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RCBO-16/30/SPA Categories: , , , Brand: Part Number: 2501148589

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Mounting method DIN rail Rated short-circuit breaking capacity according to EN 61009 6 kA Rated current 16 A Rated voltage 230 V Width in number of modular spacings 1 Number of poles (total) 2 Rated fault current 3 A Recess depth 76 mm Anti-nuisance tripping version No Flush-mounted installation No Concurrently switching N-neutral No With interlocking device No
