Circuit Breakers & Devices

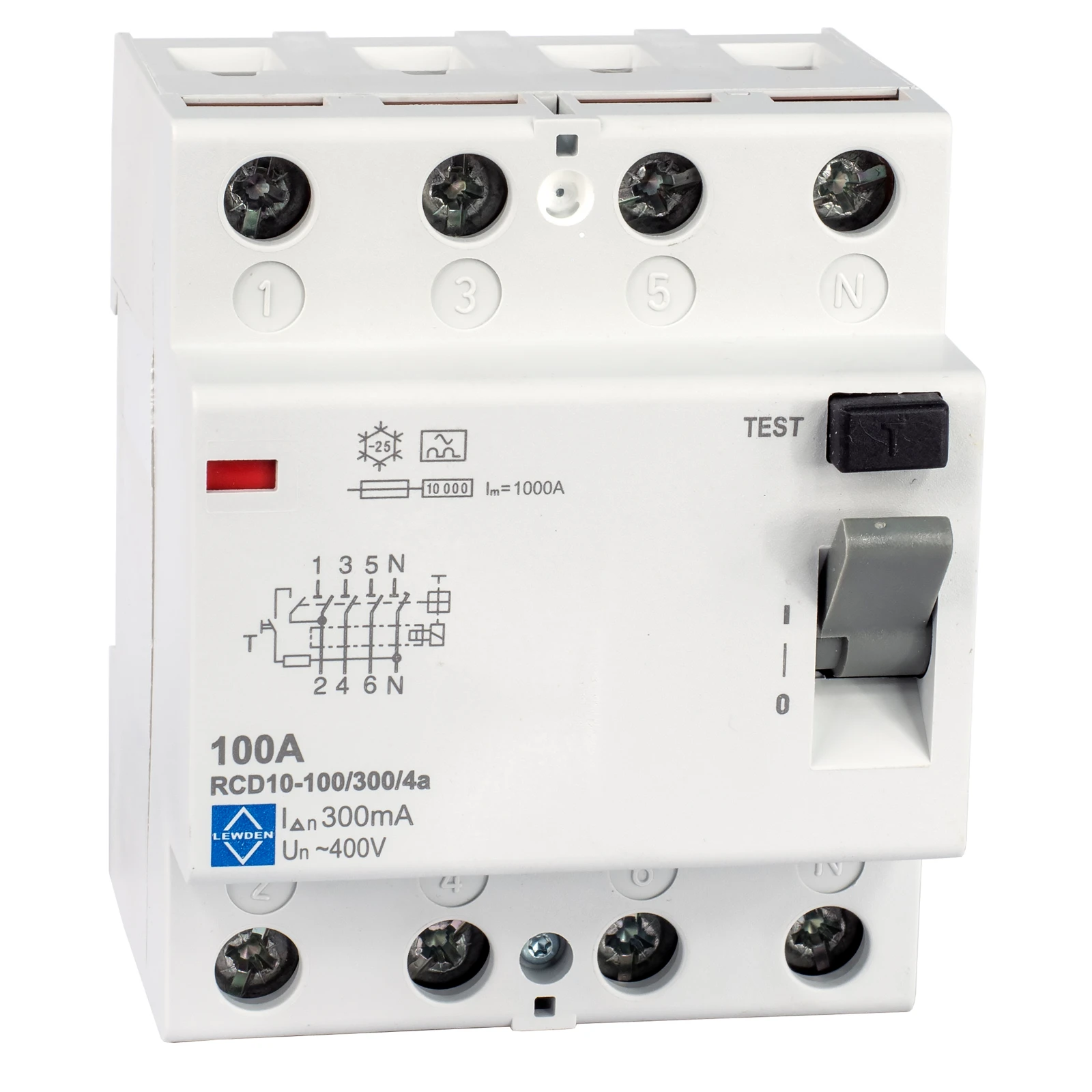

Lewden RCD 4 Pole Type A 100A 300mA 10kA

Brand: LewdenProduct code: RCD10-100/300/4AGo Magpie Ref: 5060062360602

RCCBs are designed for installation within a Lewden distribution boards, Residual current circuit breakers for single phase applications. Lewden RCCBs are part of our Dual RCCB solutions offer, which are a range of High Integrity Consumer Units, providing individual circuits arranged across two RCCBs, with the additional capability to provide Residual current protection to designated circuits via RCBOs connected directly to the Main Switch · · · Residual current circuit breakers for single phase applications · · Designed and tested for use with Lewden branded distribution boards · · Suitable for use in TN-S,TN-C-S, & TT network systems

£156.00inc VAT£130.00 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Recess depth – mm Rated current 100 A Rated impulse-withstand voltage (Uimp) – kV Pollution degree 3 Surge current capacity – kA Rated insulation voltage Ui – V Rated fault current 3 A Number of poles 4 Short-circuit breaking capacity (Icw) 10 kA Rated voltage 400 V Width in number of modular spacings – Connectable conductor cross section multi-wired – mm² Connectable conductor cross section solid-core – mm² Ambient temperature during operating – °C Explosion-proof No Selective protection No Additional equipment possible No Short-time delayed tripping No With interlocking device No · Technical Data Sheet – Click to Download
