Circuit Breakers & Devices

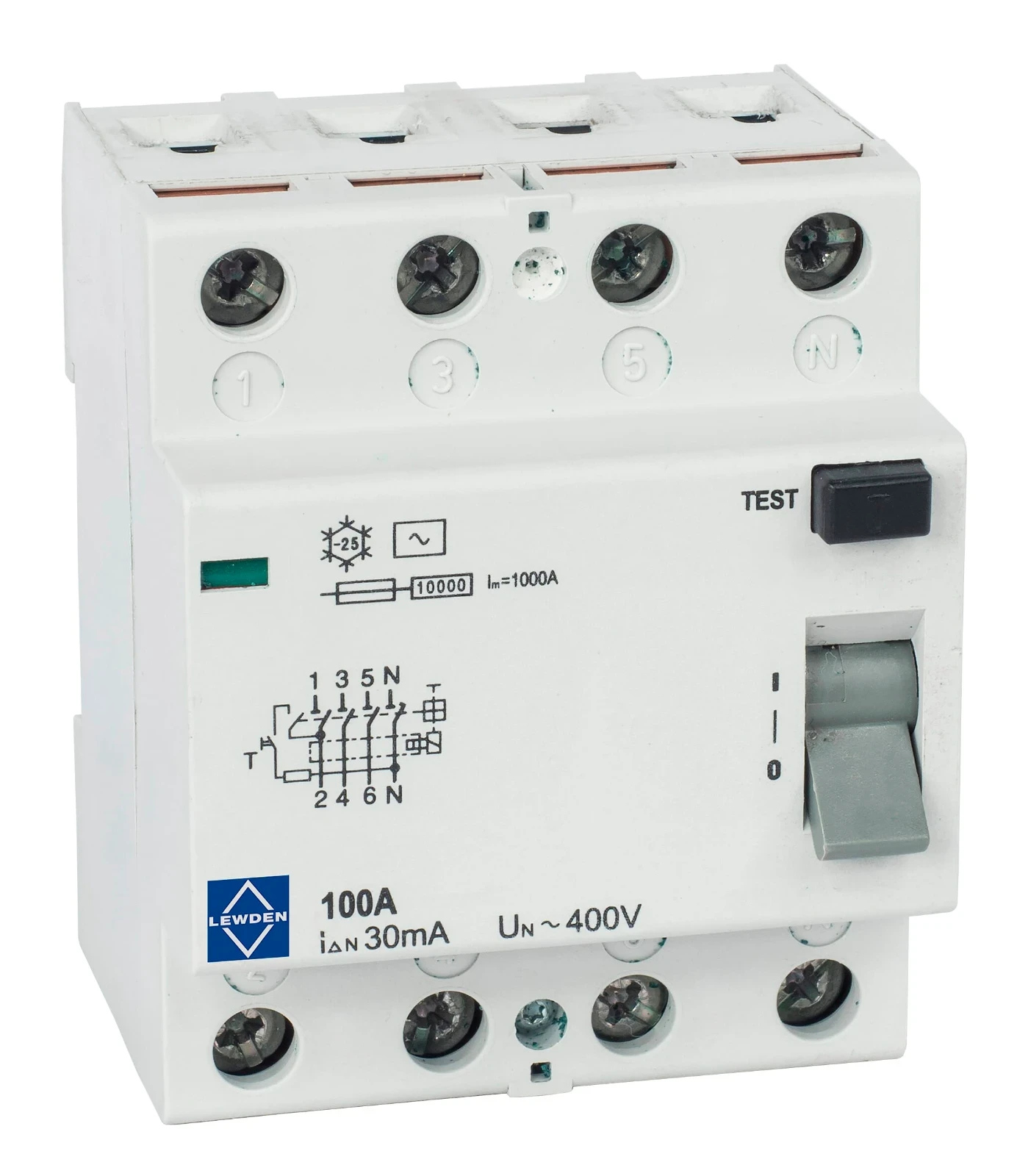

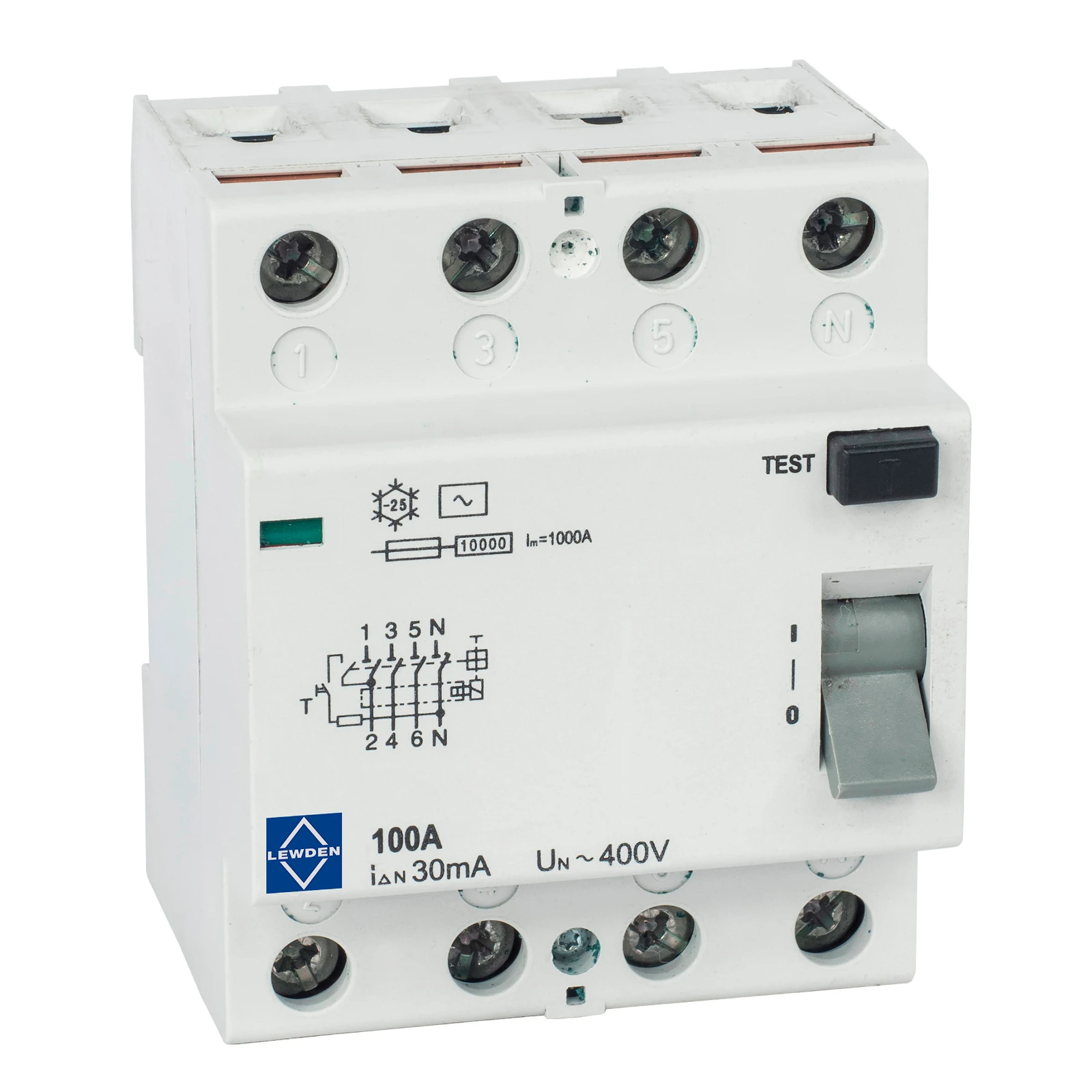

Lewden RCD 4 Pole Type A 100A 30mA 10kA

Brand: LewdenProduct code: RCD10-100/30/4AGo Magpie Ref: 5060062300118

RCCBs are designed for installation within a Lewden distribution boards, Residual current circuit breakers for single phase applications. Lewden RCCBs are part of our Dual RCCB solutions offer, which are a range of High Integrity Consumer Units, providing individual circuits arranged across two RCCBs, with the additional capability to provide Residual current protection to designated circuits via RCBOs connected directly to the Main Switch · · · Residual current circuit breakers for single phase applications · · Designed and tested for use with Lewden branded distribution boards · · Suitable for use in TN-S,TN-C-S, & TT network systems

£145.74inc VAT£121.45 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Number of poles 4 Rated current 100 A Recess depth – mm Width in number of modular spacings 4 Rated voltage 400 V Rated insulation voltage Ui – V Rated fault current 3 A Surge current capacity – kA Short-circuit breaking capacity (Icw) 10 kA Rated impulse-withstand voltage (Uimp) – kV Pollution degree 3 Connectable conductor cross section solid-core – mm² Connectable conductor cross section multi-wired – mm² Ambient temperature during operating – °C Explosion-proof No Selective protection No Additional equipment possible No Short-time delayed tripping No With interlocking device No · Technical Data Sheet – Click to Download
