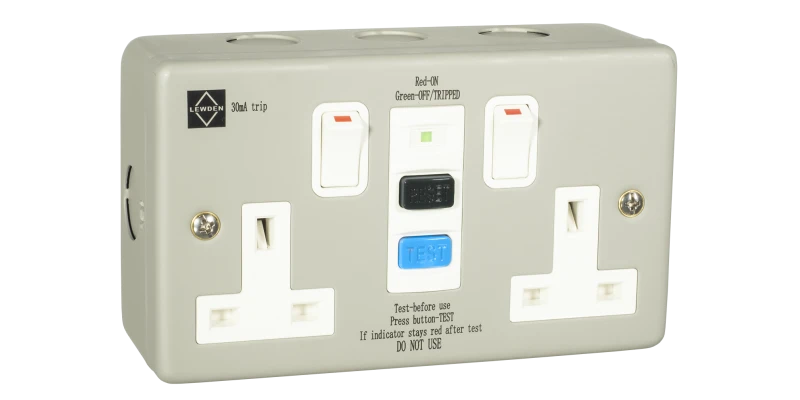

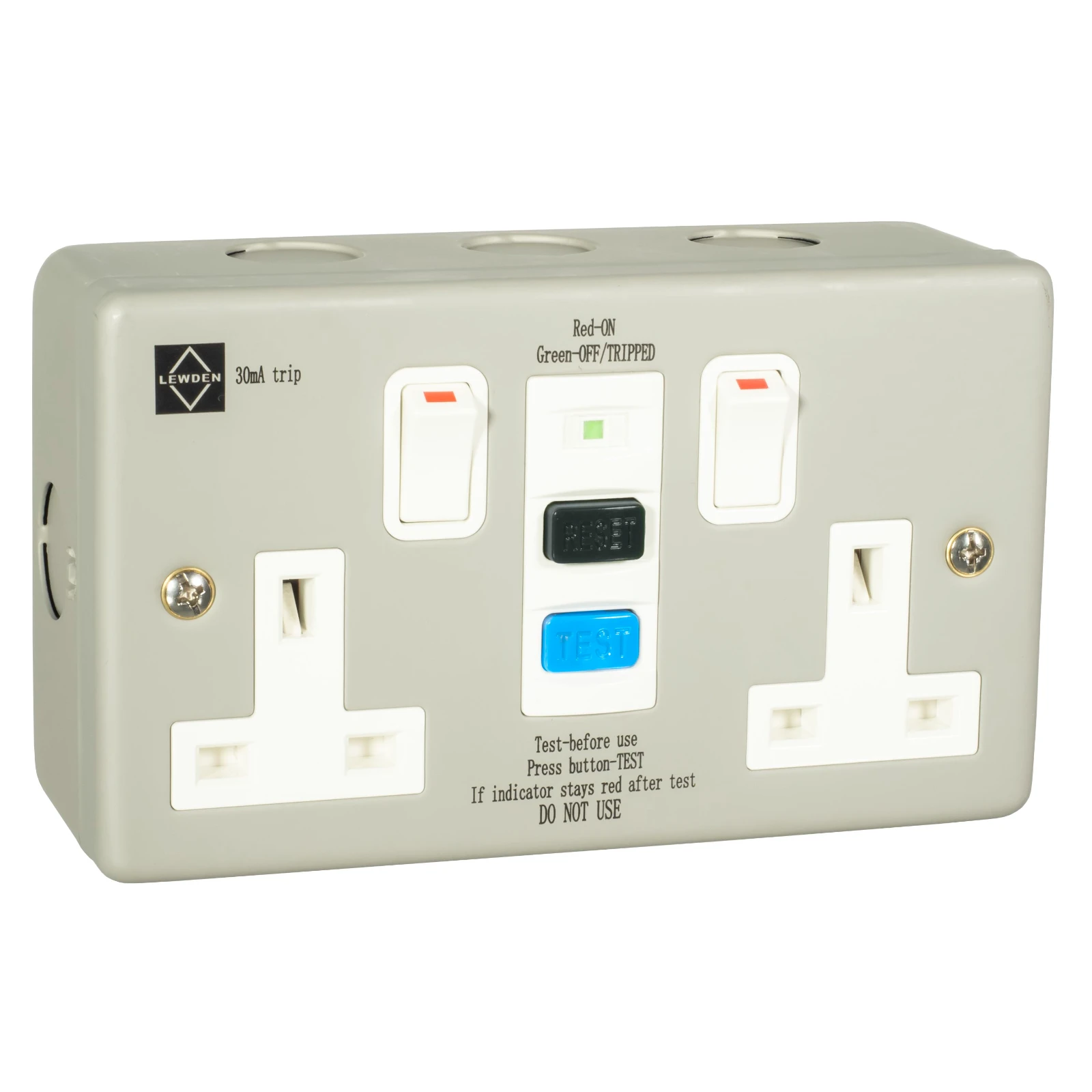

Lewden RCDSMSA Metal Clad Socket 13A Twin RCD Type A
£52.96 Incl. VAT
The residual current device (RCD) provides protection against electric shock in the event of a fault developing within the connected appliance, or an accident such as cutting through the mains lead. The RCD is a double pole device, and will provide total isolation from the mains supply when tripped. The RCD features a latching technology. Closed contacts will open automatically if there is an interruption in the mains supply, and will re-close automatically upon restoration of the mains supply. · · · RCD Type: Type A / Passive · · Tripping Current: 30mA · · Current Rating:13A · · IP20 · · Breaking Capacity 250A
3 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Combination switch/wall socket outlet Type of fastening Mounting with screw Colour Grey Mounting method Surface mounted Mounting direction Horizontal Degree of protection (IP rating) IP2X Type of socket outlet Socket outlet CEE 7/3 (type F) Material Metal Width of device 147 mm Number of socket outlets 2 Height of device 87 mm Depth of device 55 mm Rated current 13 A · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/599305
