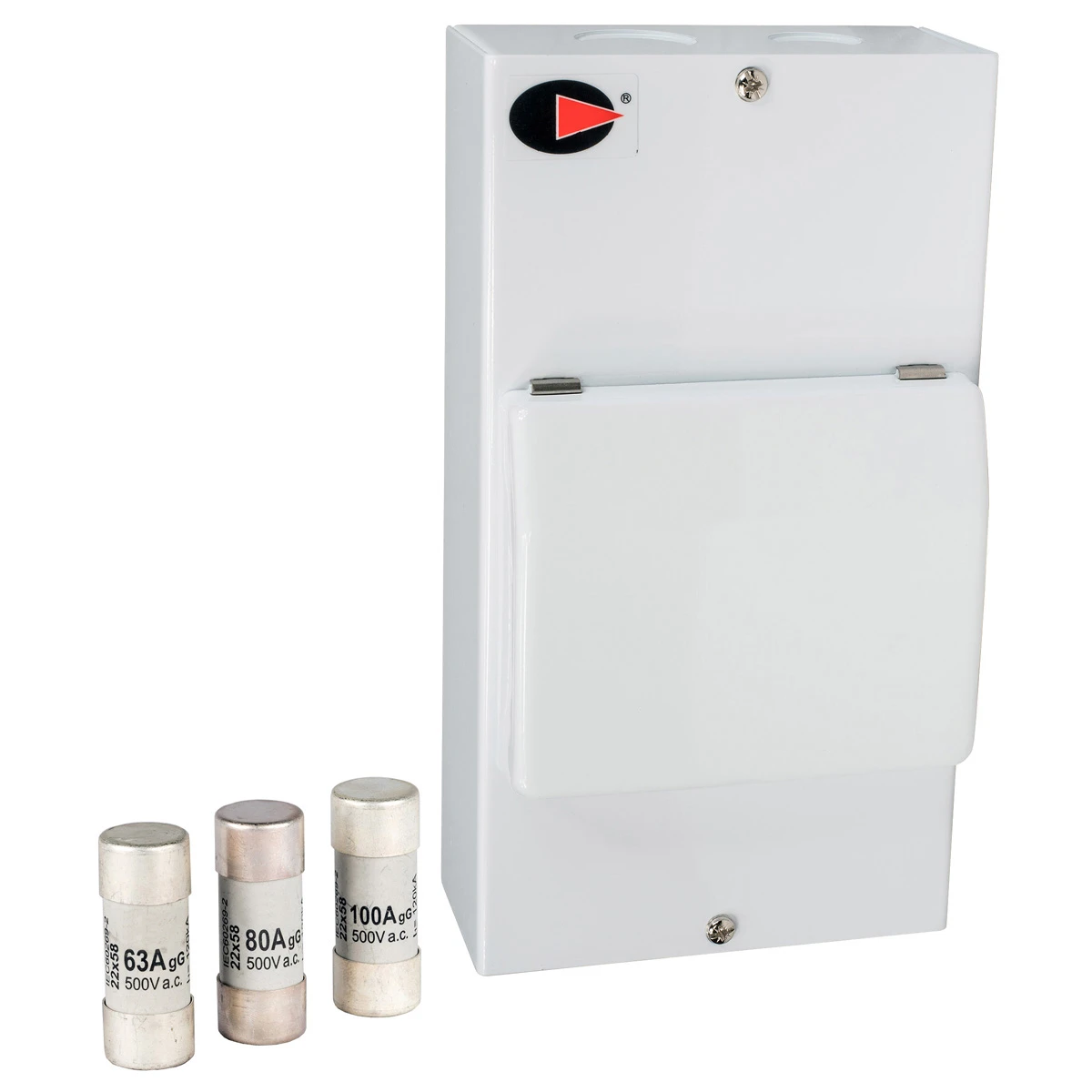

Lewden Switchfuse Isolator SP+N Metal Clad c/w 60/80/100A Fuses
£143.92 Incl. VAT

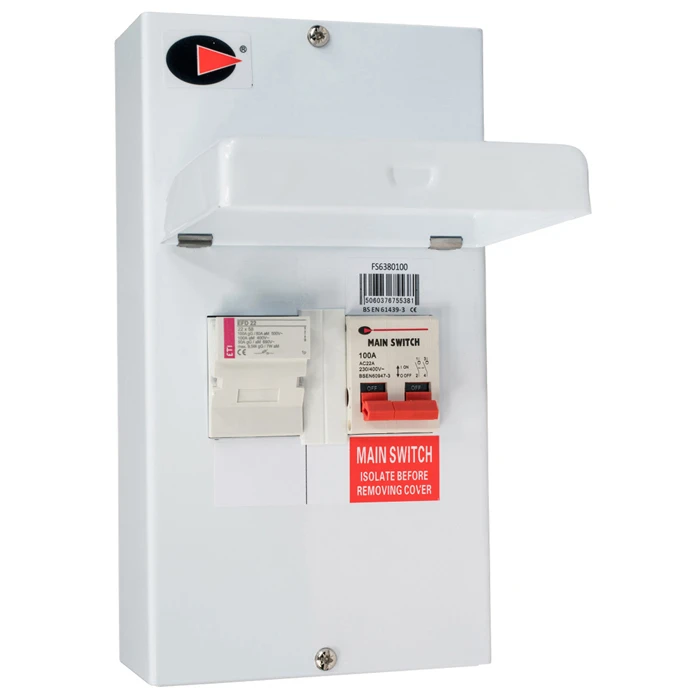

The 250x135x87mm 100A Double Pole Fused Switch is a device that is used to safely disconnect and switch electrical circuits. It is made of steel and is designed to protect against the elements. The switch has a 100A current rating and is IP65 rated, which means that it is dust-tight and protected against water jets from any direction. The switch also has a built-in fuse that protects the circuit from overloads and short circuits. · · · 100A Double Pole Fused Switch · · Includes 63A, 80A and 100A fuses (22 x 58 IEC 60269-2) gG · · 25/32mm Knockouts top and bottom · · Compliant to BS EN 61439-3, EC 60269-2 and U41 standards · · Compliant to BS EN 61439-3, EC 60269-2 and U41 standards · · Protection degree IP2X · · 35mm maximum cable capacity · · 5 modules for better heat dissipation
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Fuse switch disconnector Rated permanent current Iu 100 A Conditioned rated short-circuit current Iq – kA Max. rated operation voltage Ue AC 230 V Rated operation power at AC-23, 400 V – kW Rated short-time withstand current lcw – kA Number of poles 2 Motor drive integrated No With error protection No Suitable for busbar mounting No Motor drive optional No Equipped with connectors No Version as safety switch Yes Version as main switch Yes Version as emergency stop installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
