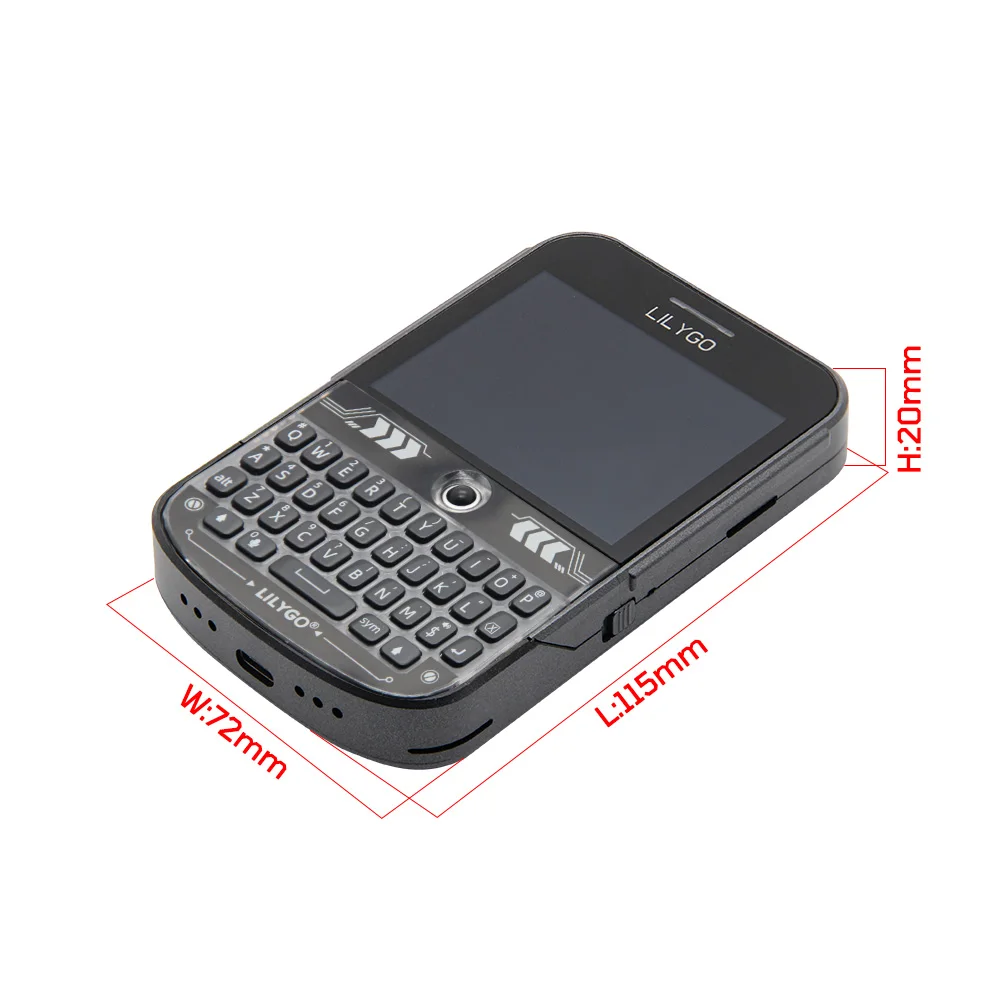

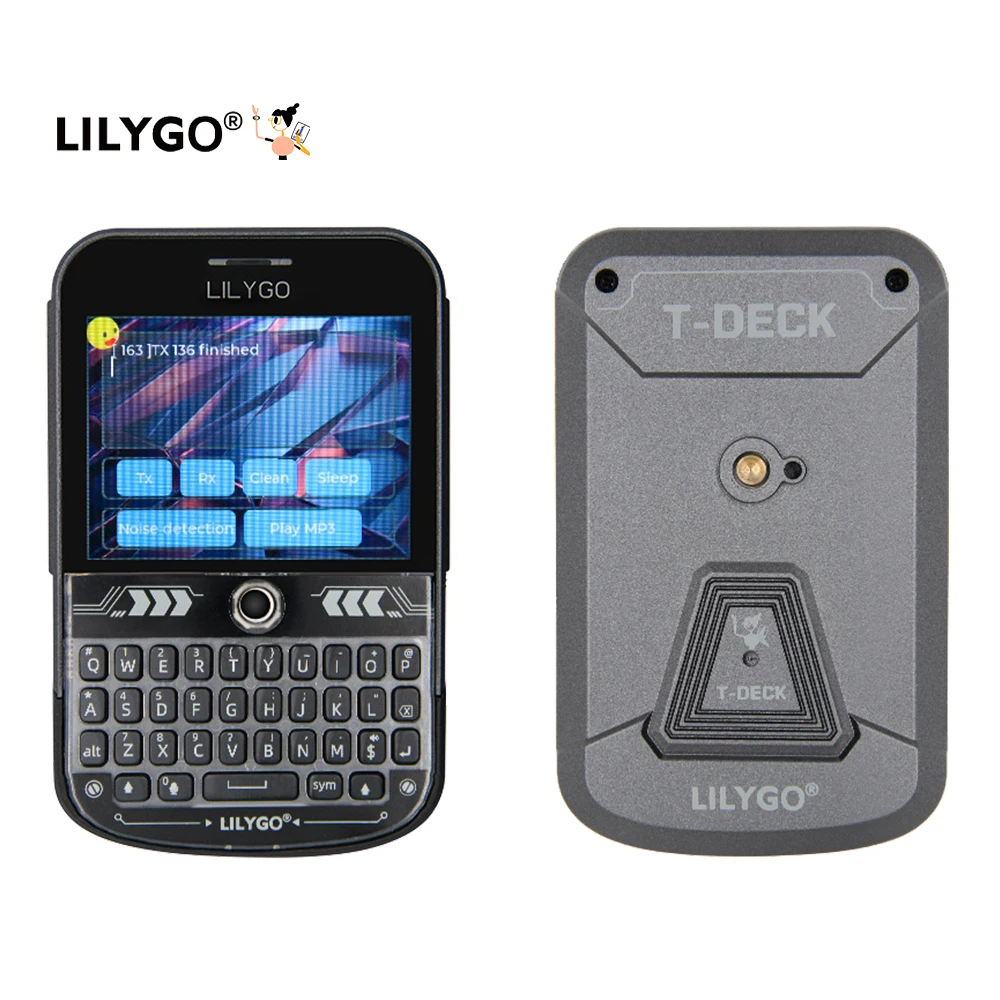

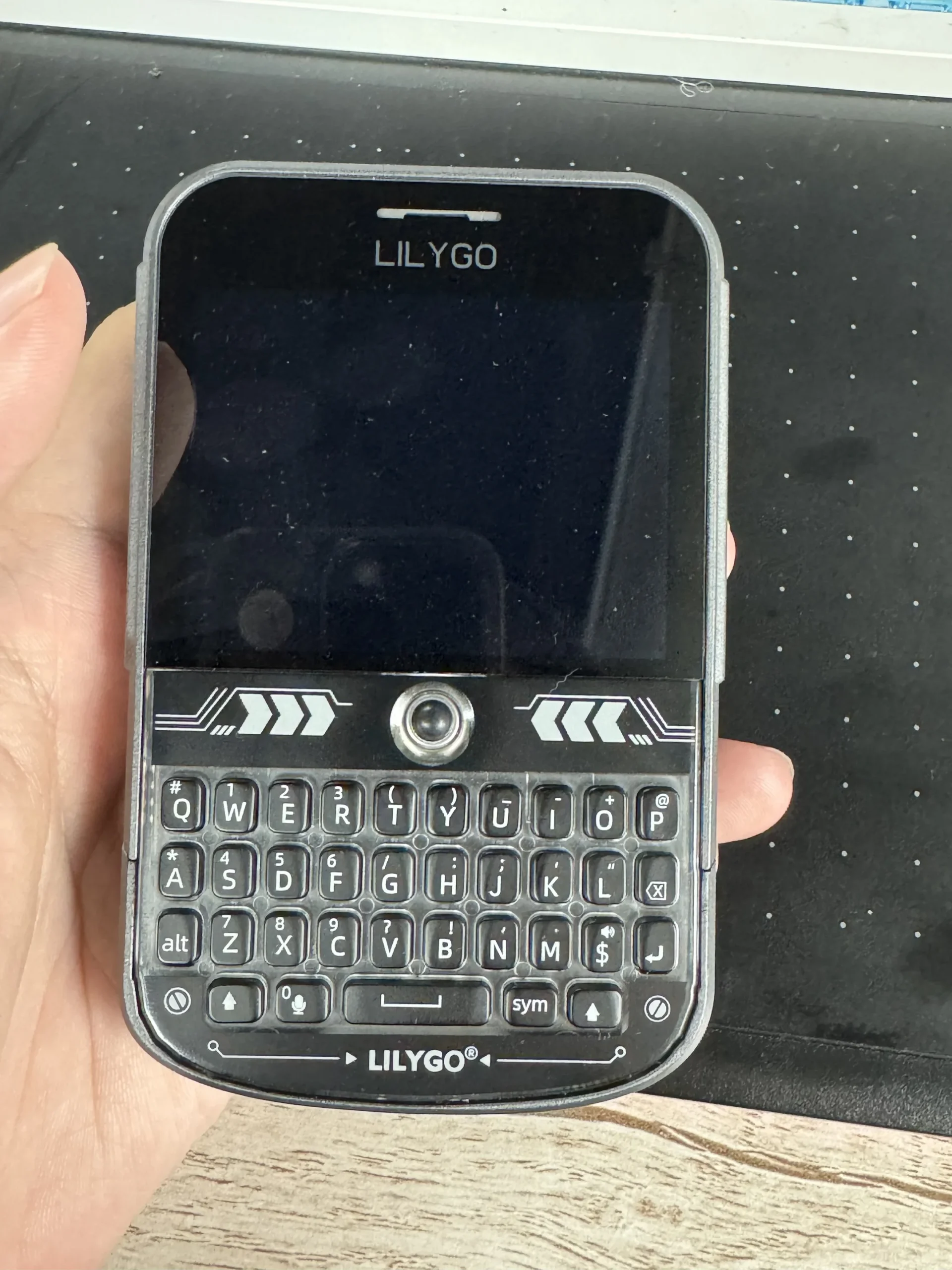

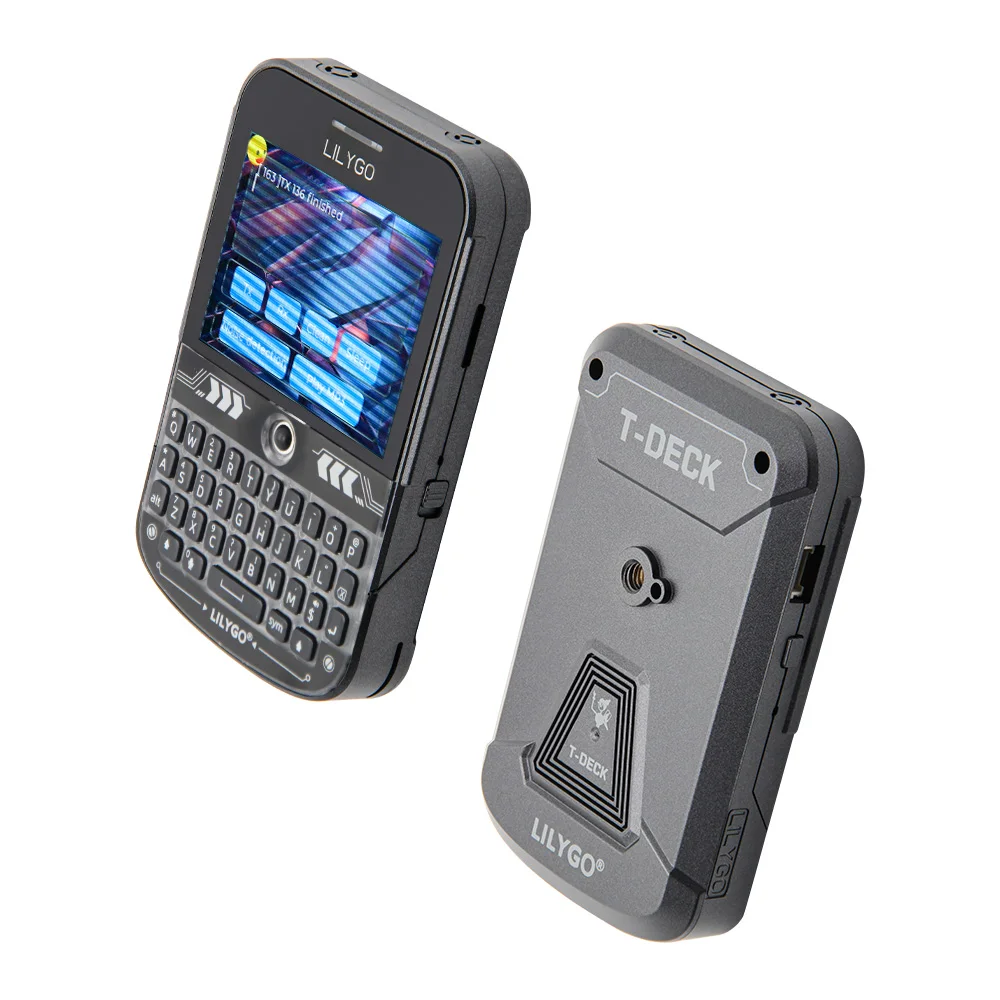

LILYGO T-Deck Plus ESP32-S3 Development Board SX1262 LoRa Low-Power Long-Range Communication RF Module GPS Handheld Device

Description

Product description

The LILYGO T-Deck Plus is an all-in-one IoT development kit designed for rapid prototyping of smart devices, remote monitoring systems, and interactive IoT applications. Powered by the ESP32-S3FN16R8 dual-core LX7 microprocessor, it combines multi-protocol wireless connectivity, precise positioning, long-range communication, and intuitive physical input to deliver a versatile solution for developers., and Built-in 2000mAh battery. Please note: This product Burning LILYGO factory firmware by default and supports Meshtastic, Meshcore firmware, but you need to Burning it yourself. Core Components & Architecture MCU ✅ESP32-S3FN16R8 (dual-core Xtensa LX7) with 16MB Flash and 8MB PSRAM, enabling high-performance computing for complex IoT tasks. Wireless Connectivity ✅Short-Range:2.4GHz Wi-Fi (802.11 b/g/n) & Bluetooth 5 (LE) for local network integration and device pairing. ✅Long-Range: Optional SX1262 LoRa Transceiver (supports 433/868/915/920MHz bands, +22dBm transmit power) for ultra-long-distance communication. Positioning ✅Built-in GPS module for real-time location tracking. Display ✅2.8-inch ST7789 SPI IPS LCD (320×240 resolution, full viewing angle) for visual feedback and user interaction. Input & Interaction ✅QWERTY keyboard (black/white color optional) for text input. ✅Trackball (with press-down BOOT function) for precise navigation. Audio & Storage ✅Onboard microphone/speaker for audio capture/playback; ✅TF card slot for local data logging. Power ✅2000mAh built-in battery with battery ADC pin (IO04) for power monitoring. More information： GitHub Technical Documentation： https://github.com/Xinyuan-LilyGO/T-Deck T-Deck Plus User Guide for Meshtastic： https://www.youtube.com/watch?v=0YDCKUdCwJI T-Deck Plus User Guide for MeshCore ： https://www.youtube.com/watch?v=Y05rDxq5ICs T-Deck Plus Product Introduction： (Partner-Produced Footage) https://www.youtube.com/watch?v=QTWTv8E2T9I Recommend Products Recommended by seller LILYGO T-Display-S3 ESP32-S3 Development Board with 1.9 Inch ST7789 LCD Touch Display WIFI for Bluetooth 5.0 Wireless Module.
