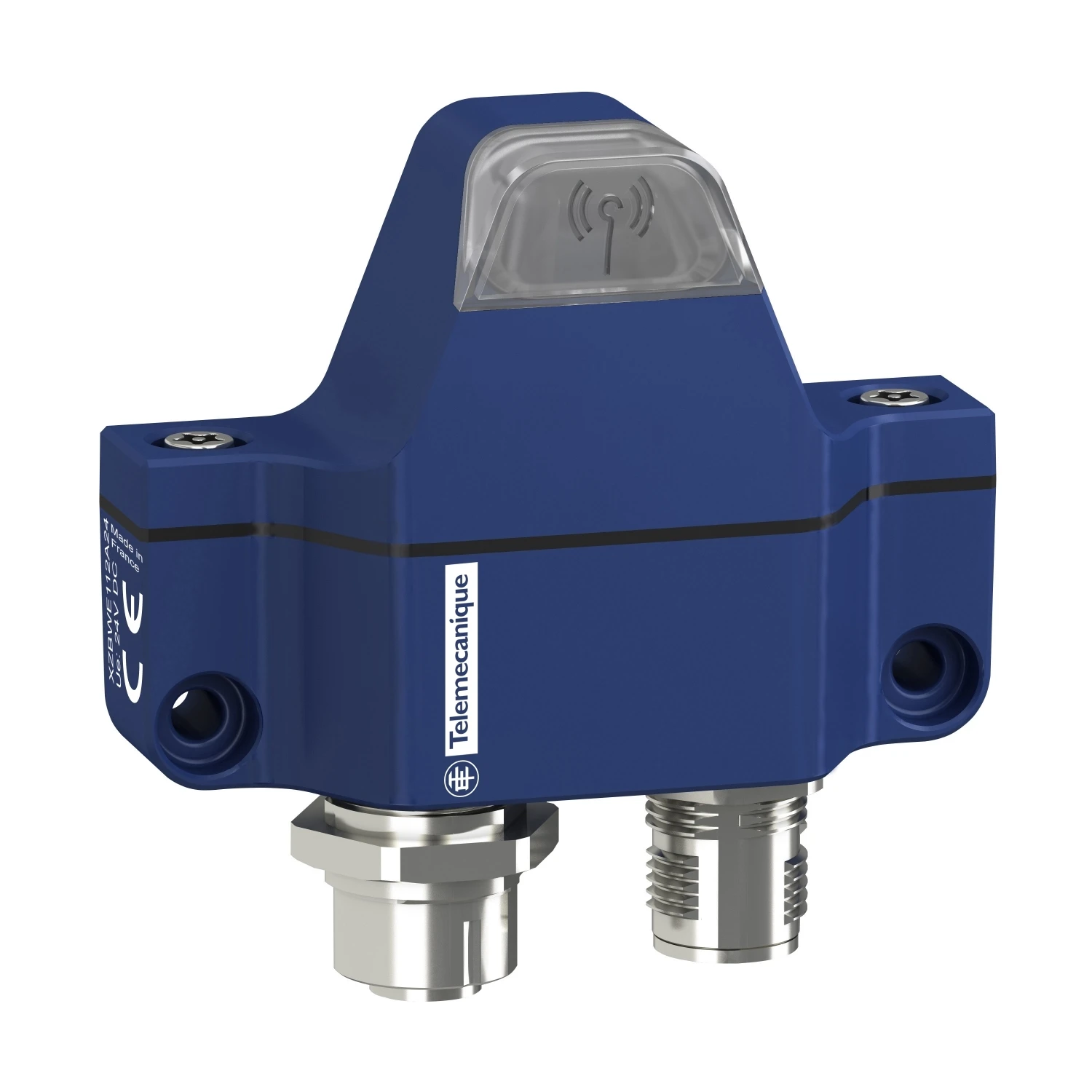

Telemecanique Sensors Limit Switch 24V

SKU: XZBWE112A24Go Magpie ID: 5060062341018

RADIO EMITTER FOR1 SENSOR-24V · · · This product is part of the XZ range, an offer of radio transmitters. · · This product is a wireless transmitter for sensors and switches. The communication port protocol conforms to ZigBee IEEE 802.15.4. · · Rated coil voltage: 24VDC · · It has NPN or PNP for sensor discrete input and 1 LED green or orange for on/off sensor output. With external fuse and fast blow protection. · · It is furnished with 5-wire M12 female connector (sensor) and 4-wire M12 male connector (power supply) for electrical connection. · · Contact current: 16A · · Contact voltage: 30VDC/250VAC

£201.91inc VAT£168.26 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Wireless antenna Degree of protection (IP rating) IP55 Polarization Horizontal Mounting method Ceiling mounting Height 65 mm Connection type Plug Beam angle horizontal – ° Ambient temperature during operating -25 – 55 °C Beam angle vertical – ° Aerial gain – dBi Length of connection cable – m Max. transmission range 100 m Depth 23 mm Width 68 mm Frequency band 2 – GHz Omni directional No Indoor Yes Outdoor Yes MIMO (Multiple-Input Multiple-Output ) No With connection cable No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205359
