Limit Switch 2P NC+NO

£89.90 Incl. VAT

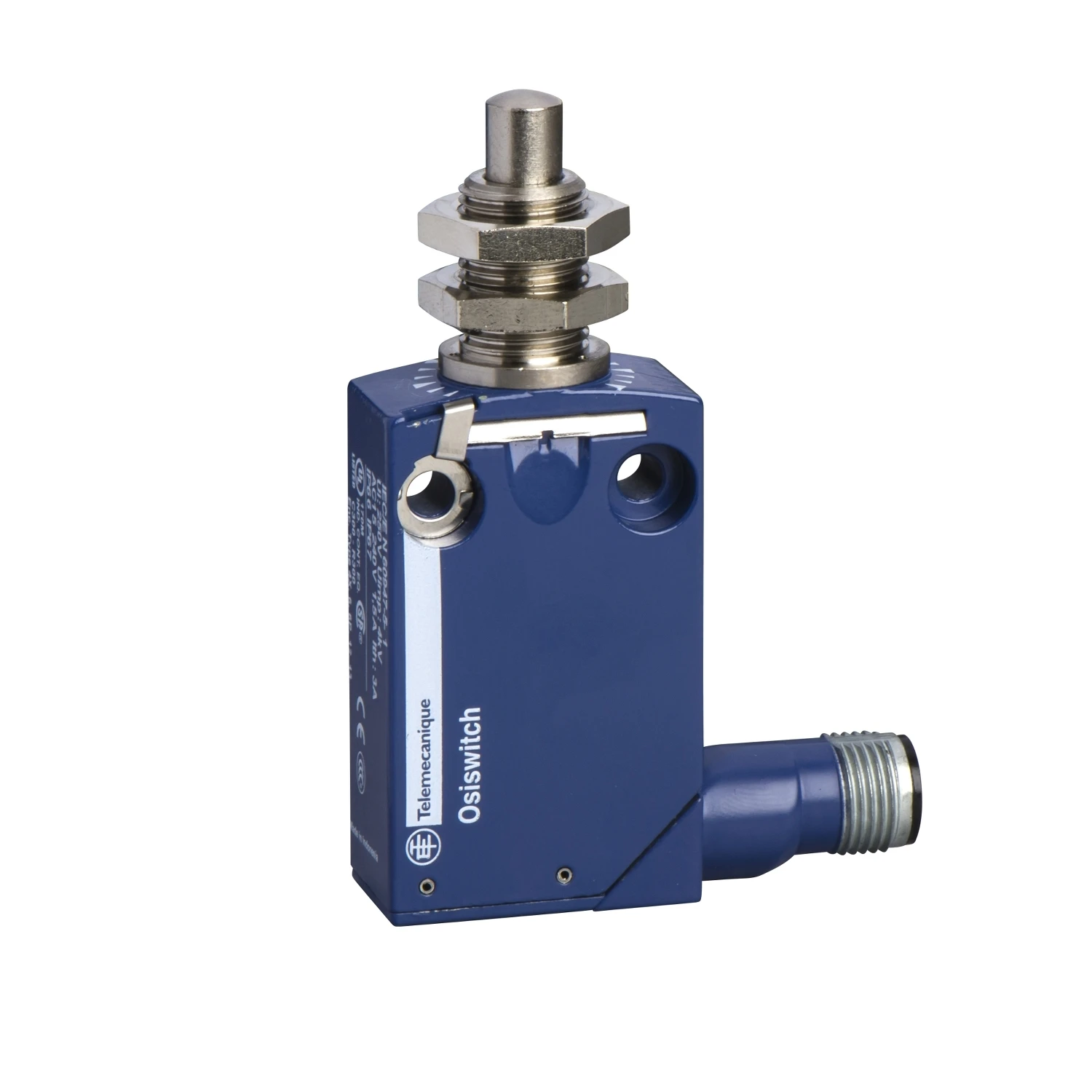

This XCMD miniature format limit switch has a metal end plunger and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a M12 5-pin connector. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. · · · This XCMD miniature format limit switch has a metal end plunger and a Zamak body. · · It has 1 x NO + 1 x NC snap action contacts and a M12 5-pin connector. · · This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. · · It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. · · It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category.

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCMD21F0C12 Categories: , Brand: Part Number: 2500256137

Description

Technical Specifications  Technical Specifications End switch Interface type None Type of interface for safety communication None Explosion safety category for dust None Explosion safety category for gas None Construction type housing Cuboid Type of control element Plunger Type of electric connection Connector M12 Housing material Metal Switching function Quick-break switch Length of sensor 16 mm Number of safety auxiliary contacts 0 Height of sensor 50 mm Rated operation current Ie at DC-13, 230 V 0.22 A Diameter sensor – mm Width sensor 30 mm Degree of protection (IP rating) IP67K Rated operation current Ie at AC-15, 230 V 3 A Number of contacts as change-over contact 0 Number of contacts as normally closed contact 1 Number of contacts as normally open contact 1 Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V – A Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at AC-15, 125 V – A Ambient temperature during operating -25 – 70 °C Output electronic No Suitable for safety functions No Switching function latching No With status indication No Forced opening Yes
