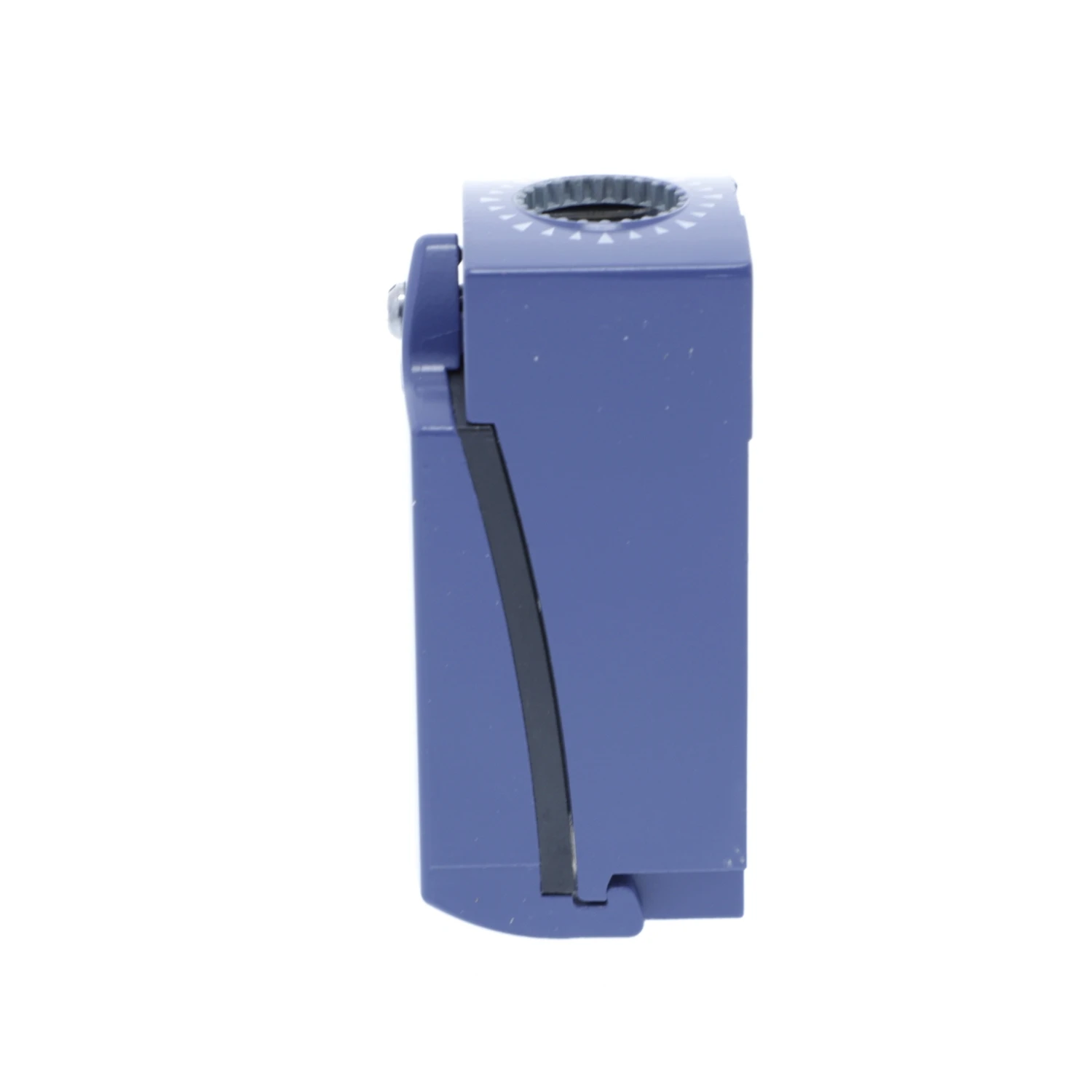

Telemecanique Sensors Limit Switch Body Zcd Compact 1NC+1NO Snap Action
Telemecanique Sensors Limit Switch Body Zcd Compact 1NC+1NO Snap Action
Telemecanique Sensors Limit Switch Body Zcd Compact 1NC+1NO Snap Action - Image 2
Telemecanique Sensors Limit Switch Body Zcd Compact 1NC+1NO Snap Action - Image 3
Telemecanique Sensors Limit Switch Body Zcd Compact 1NC+1NO Snap Action - Image 4

Telemecanique Sensors Limit Switch Body Zcd Compact 1NC+1NO Snap Action

£22.12 Incl. VAT

Limit switch body ZCD, compact, 1NC+1NO, snap action. range of product: OsiSense XC – series name: Standard compact – product or component type: limit switch body – device short name: ZCD – design: compact – body type: fixed – associated head: ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2 – contacts type and composition: 1 NC + 1 NO. · · · This ZCD body/contact assembly has a standard contacts and a Zamak body. · · It has 1 x NO + 1 x NC snap action contacts. · · It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges. · · Normal State Configuration: 1 Nc + 1 No

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZCD21 Categories: , , , , , Brand: Product Code: 2500136912

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for dust None Interface type None Type of interface for safety communication None Degree of protection (IP rating) IP66/IP67 Switching function Quick-break switch Type of control element None Housing material Metal Construction type housing Cuboid Rated operation current Ie at AC-15, 24 V – A Number of contacts as change-over contact 0 Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at AC-15, 125 V – A Width sensor 31 mm Rated operation current Ie at DC-13, 125 V – A Height of sensor 65 mm Rated operation current Ie at AC-15, 230 V 1.5 A Rated operation current Ie at DC-13, 230 V 0.1 A Diameter sensor – mm Length of sensor 30 mm Number of contacts as normally open contact 1 Number of safety auxiliary contacts 0 Number of contacts as normally closed contact 1 Ambient temperature during operating -25 – 70 °C With status indication No Suitable for safety functions No Switching function latching No Output electronic No Forced opening Yes · Technical Data Sheet – Click to Download
