Limit Switch Body Zckj Plug-In Without Display 1C/O Snap Action M20
Limit Switch Body Zckj Plug-In Without Display 1C/O Snap Action M20

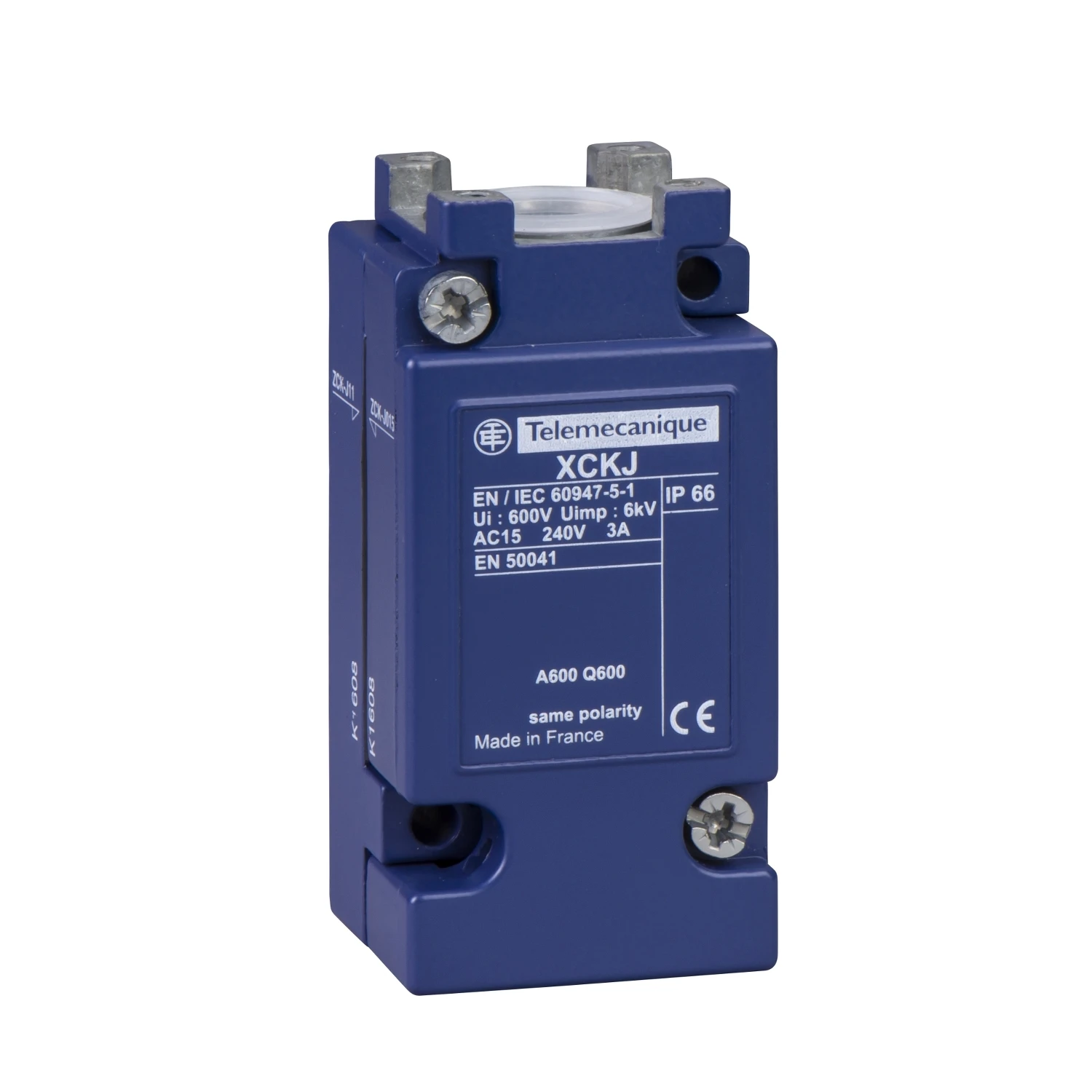

Limit Switch Body Zckj Plug-In Without Display 1C/O Snap Action M20 - Image 2
Limit Switch Body Zckj Plug-In Without Display 1C/O Snap Action M20 - Image 3
Limit Switch Body Zckj Plug-In Without Display 1C/O Snap Action M20 - Image 4

Limit Switch Body Zckj Plug-In Without Display 1C/O Snap Action M20

£90.28 Incl. VAT

This product is part of the XC Standard range, an offer of limit switches. This limit switch body has 1 changeover, snap action contacts. It is a limit switch body with a conventional enclosed thermal current of 10A and rated operating current of 3A at 240V AC and 0.27A at 250V DC. It is furnished with screw terminals for electrical connection. It is an IP66 and IK07 rated product. This plug in limit switch body is made of metal. Its dimensions are 40mm (width) x 44mm (depth) x 77mm (height). It weighs 0.32kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with the XCKJ limit switches. The associated heads are ZCKE21, ZCKE65, ZCKE08, ZCKE61, ZCKE23, ZCKE619, ZCKE64, ZCKE06, ZCKE62, ZCKE67 and ZCKE66. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges. · · · Height: 84mm · · Width: 43mm · · Weight: 0.3kg · · Depth: 36mm · · Normal State Configuration: 1 C/O

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZCKJ11H29 Categories: , , Brand: Part Number: 2500024096

Description

Technical Specifications  Technical Specifications End switch Interface type None Type of control element None Type of interface for safety communication None Explosion safety category for dust None Construction type housing Cuboid Explosion safety category for gas None Switching function Quick-break switch Type of electric connection Cable entry metrical Housing material Metal Rated operation current Ie at DC-13, 24 V 0 A Number of contacts as normally closed contact 0 Rated operation current Ie at AC-15, 125 V 0 A Rated operation current Ie at AC-15, 24 V 0 A Number of safety auxiliary contacts 0 Rated operation current Ie at DC-13, 125 V 0 A Degree of protection (IP rating) IP65 Rated operation current Ie at DC-13, 230 V 0.27 A Length of sensor 36 mm Ambient temperature during operating -25 – 70 °C Height of sensor 84 mm Width sensor 43 mm Diameter sensor 0 mm Rated operation current Ie at AC-15, 230 V 3 A Number of contacts as normally open contact 0 Number of contacts as change-over contact 1 Suitable for safety functions No Switching function latching No Output electronic No Forced opening No With status indication No · Technical Data Sheet – Click to Download
