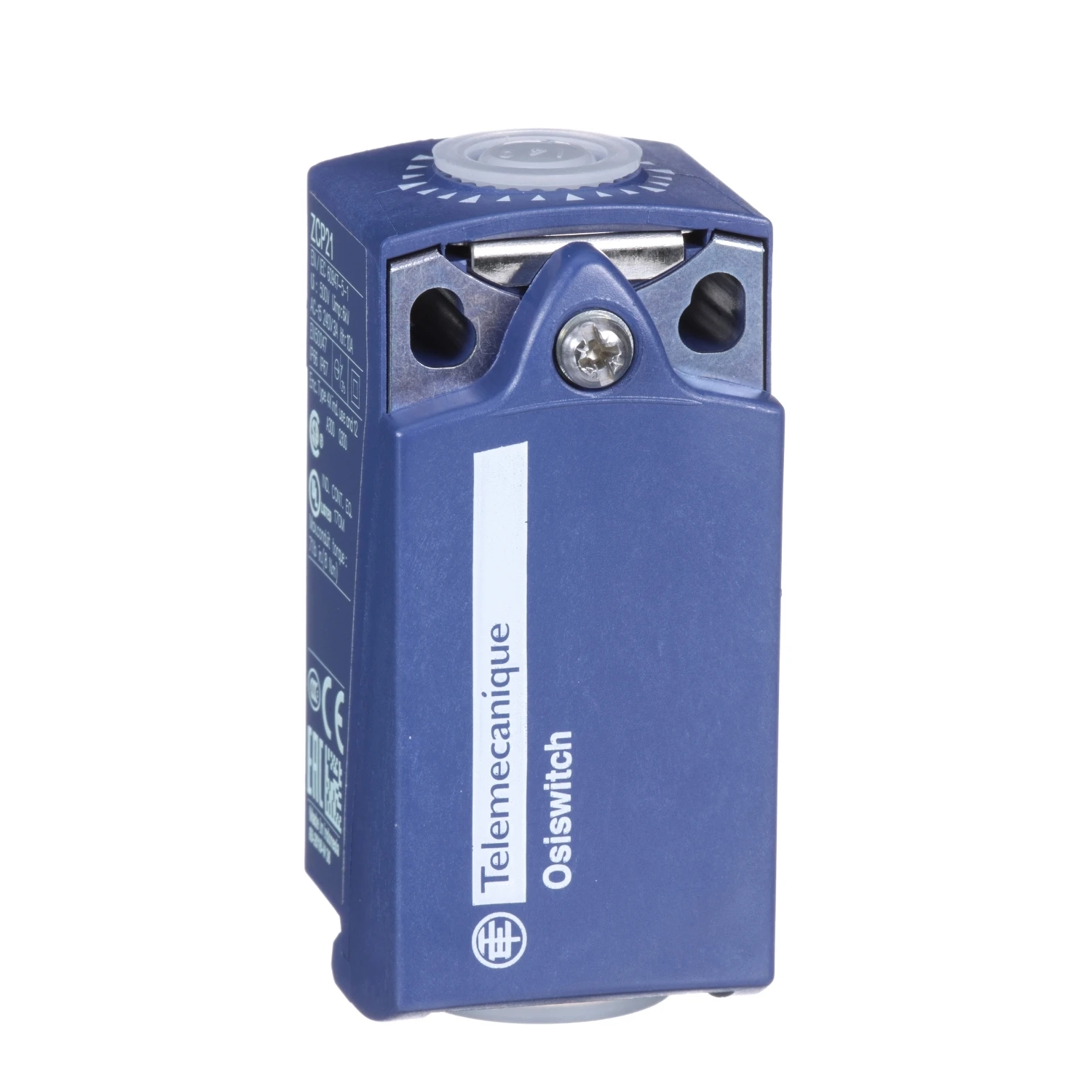

Limit Switch Body Zcp Compact 1NC+1NO Snap Action
Limit Switch Body Zcp Compact 1NC+1NO Snap Action
Limit Switch Body Zcp Compact 1NC+1NO Snap Action - Image 2
Limit Switch Body Zcp Compact 1NC+1NO Snap Action - Image 3
Limit Switch Body Zcp Compact 1NC+1NO Snap Action - Image 4

Limit Switch Body Zcp Compact 1NC+1NO Snap Action

£16.44 Incl. VAT

This ZCP body/contact assembly has standard contacts and a plastic body. It has 1 x NO + 1 x NC snap action contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges. · · · This ZCP body/contact assembly has standard contacts and a plastic body. · · It has 1 x NO + 1 x NC snap action contacts. · · It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges. · · Depth: 30mm · · Normal State Configuration: 1 Nc + 1 No

20 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ZCP21 Categories: , , Brand: Part Number: 2500137057

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for gas None Housing material Plastic Explosion safety category for dust None Interface type None Type of interface for safety communication None Degree of protection (IP rating) IP66/IP67 Type of control element None Construction type housing Cuboid Switching function Quick-break switch Rated operation current Ie at DC-13, 230 V 0.1 A Diameter sensor 0 mm Rated operation current Ie at AC-15, 230 V 1.5 A Rated operation current Ie at AC-15, 24 V 0 A Rated operation current Ie at AC-15, 125 V 0 A Height of sensor 65 mm Length of sensor 30 mm Width sensor 31 mm Number of contacts as normally open contact 1 Number of safety auxiliary contacts 0 Rated operation current Ie at DC-13, 24 V 0 A Rated operation current Ie at DC-13, 125 V 0 A Number of contacts as change-over contact 0 Number of contacts as normally closed contact 1 Ambient temperature during operating -25 – 70 °C Suitable for safety functions No With status indication No Output electronic No Forced opening Yes Switching function latching No · Technical Data Sheet – Click to Download
