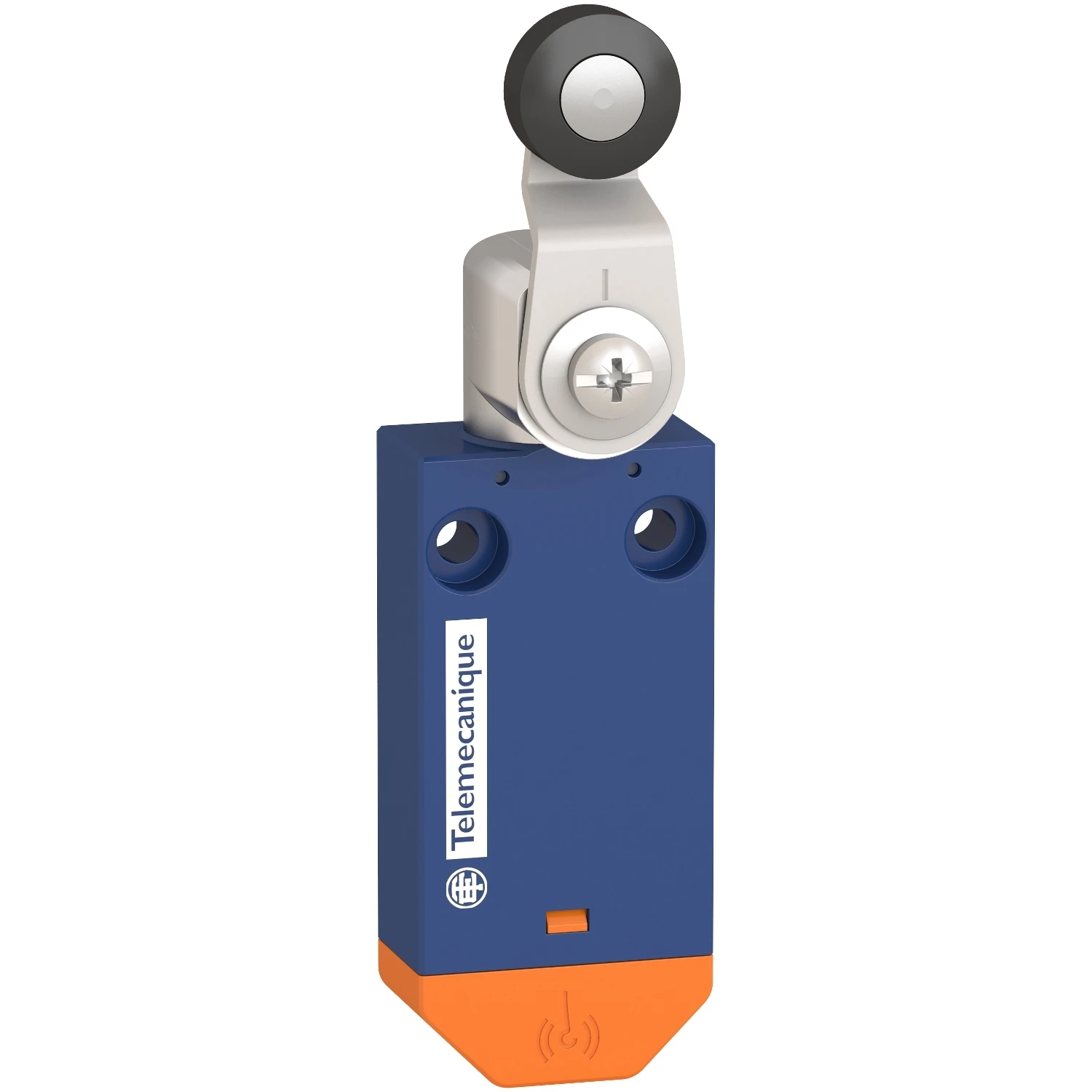

Telemecanique Sensors Limit Switch Radio Emitter - Plastic Roll Lever
Telemecanique Sensors Limit Switch Radio Emitter - Plastic Roll Lever
Telemecanique Sensors Limit Switch Radio Emitter - Plastic Roll Lever - Image 2
Telemecanique Sensors Limit Switch Radio Emitter - Plastic Roll Lever - Image 3
Telemecanique Sensors Limit Switch Radio Emitter - Plastic Roll Lever - Image 4

Telemecanique Sensors Limit Switch Radio Emitter – Plastic Roll Lever

£129.14 Incl. VAT

LIMIT SWITCH PLAST ROLL LEVER · · · This wireless and battery-less limit switch is part of the XCMW range, an offer with a miniature design. This range includes transmitters (micro limit switches) and receivers that communicate via 2.4 GHz radio transmission. · · Limit switches are used in all automated installations. They transmit data to the logic processing system regarding presence, absence, passing, positioning and end of travel. · · This miniature limit switch features a thermoplastic roller lever actuator (actuation by 30° cam,lateral approach, 1 or 2 programmable directions). · · No wiring is required between the limit switch and the receiver, for a faster installation. · · Its sensing distance reaches 100m in free field, 300m with an external antenna and 25m in industrial environment.

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCMW115 Categories: , , Brand: Product Code: 2501297427

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for gas None Explosion safety category for dust None Interface type None Housing material Plastic Construction type housing Cuboid Type of control element Roller lever Degree of protection (IP rating) IP65 Rated operation current Ie at AC-15, 230 V – A Diameter sensor – mm Width sensor 30 mm Height of sensor 108 mm Number of contacts as normally closed contact 0 Rated operation current Ie at DC-13, 230 V – A Number of safety auxiliary contacts 0 Rated operation current Ie at AC-15, 125 V – A Length of sensor 16 mm Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at DC-13, 125 V – A Rated operation current Ie at DC-13, 24 V – A Number of contacts as normally open contact 0 Number of contacts as change-over contact 0 Ambient temperature during operating -25 – 55 °C With status indication No Suitable for safety functions No Forced opening Yes Switching function latching No Output electronic No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2222724
