Limit Switch Radio Emitter Steel Plunger
Limit Switch Radio Emitter Steel Plunger
Limit Switch Radio Emitter Steel Plunger - Image 2
Limit Switch Radio Emitter Steel Plunger - Image 3
Limit Switch Radio Emitter Steel Plunger - Image 4

Limit Switch Radio Emitter Steel Plunger

£123.98 Incl. VAT

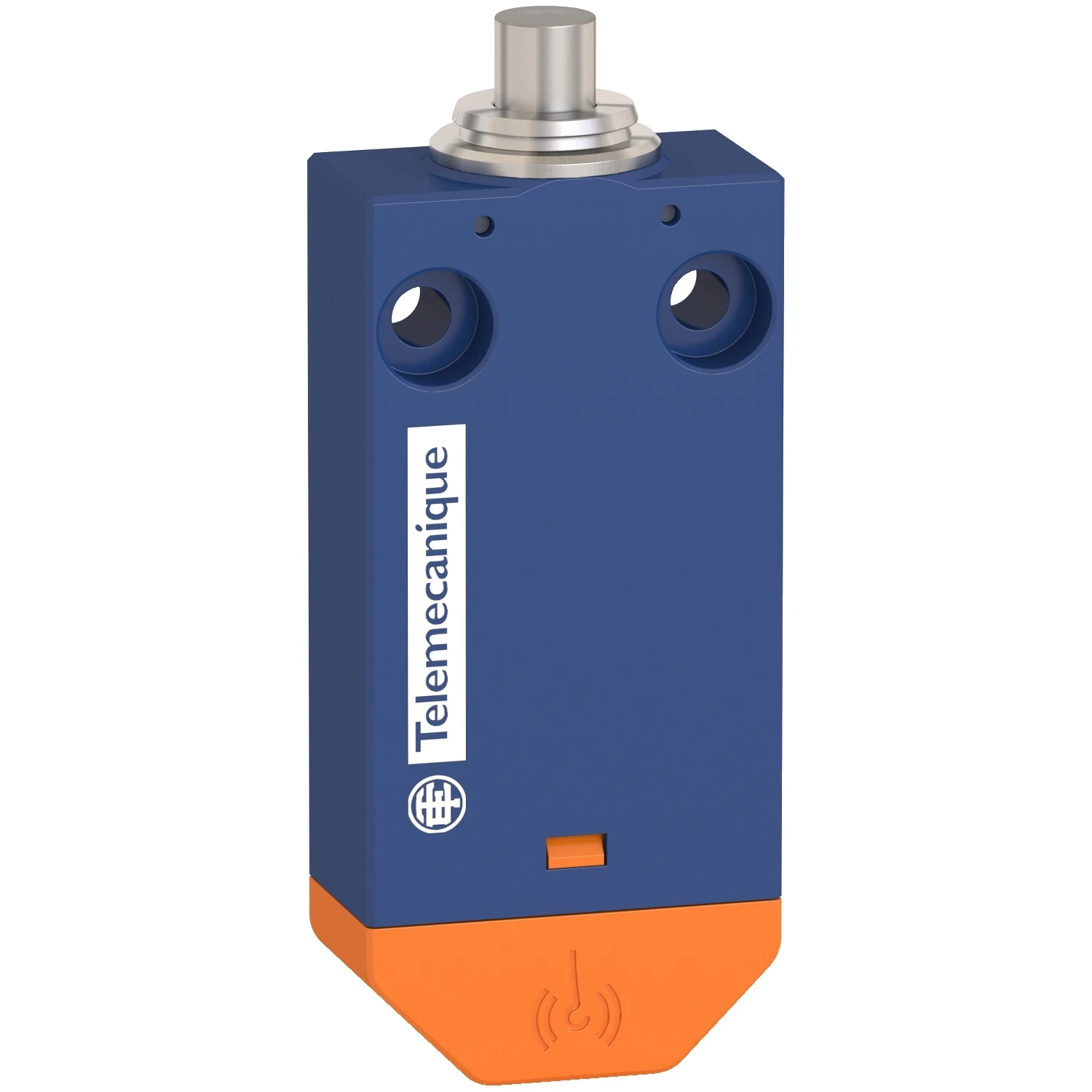

Limit switch transmitter plunger · · · This wireless and battery-less limit switch is part of the XCMW range, an offer with a miniature design. This range includes transmitters (micro limit switches) and receivers that communicate via 2.4 GHz radio transmission. · · Limit switches are used in all automated installations. They transmit data to the logic processing system regarding presence, absence, passing, positioning and end of travel. · · This miniature limit switch features a metal end plunger actuator (vertical approach, 1 direction, on end). · · No wiring is required between the limit switch and the receiver, for a faster installation. · · Its sensing distance reaches 100m in free field, 300m with an external antenna and 25m in industrial environment. · · Grey Cover · · 320x220x150

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCMW110 Categories: , , Brand: Part Number: 2501297425

Description

Technical Specifications  Technical Specifications End switch Interface type None Housing material Plastic Explosion safety category for dust None Explosion safety category for gas None Construction type housing Cuboid Type of control element Plunger Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V – A Rated operation current Ie at AC-15, 24 V – A Number of contacts as normally open contact 0 Number of safety auxiliary contacts 0 Rated operation current Ie at DC-13, 230 V – A Degree of protection (IP rating) IP65 Rated operation current Ie at AC-15, 125 V – A Rated operation current Ie at AC-15, 230 V – A Ambient temperature during operating -25 – 55 °C Diameter sensor – mm Width sensor 30 mm Length of sensor 16 mm Height of sensor 74 mm Number of contacts as normally closed contact 0 Number of contacts as change-over contact 0 Output electronic No Switching function latching No With status indication No Forced opening Yes Suitable for safety functions No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2222724
