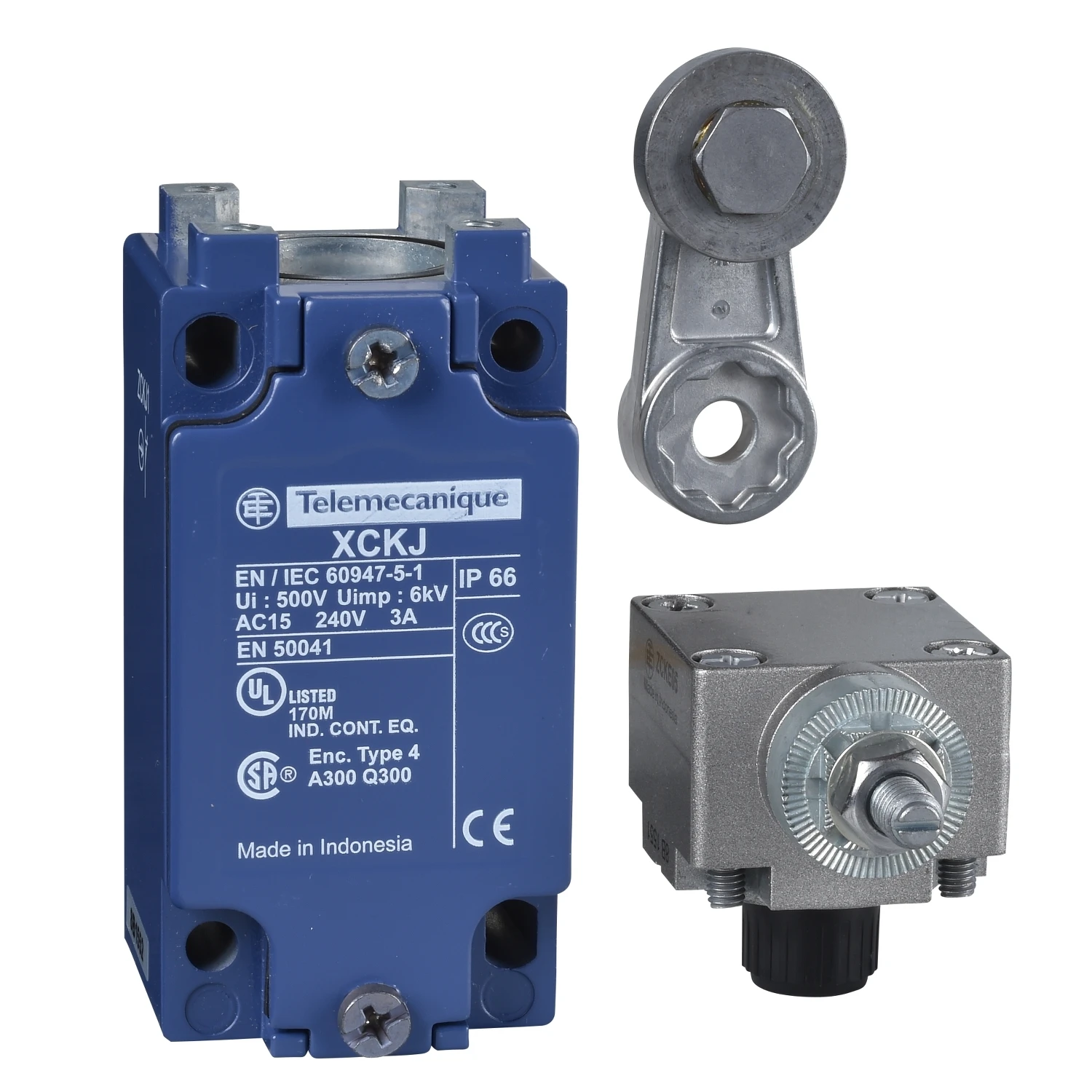

Limit Switch XCKJ Thermoplastic Roller Lever 1NC+1NO Snap Action M20
£98.92 Incl. VAT
This XCKJ industrial format (EN 50041) limit switch has a thermoplastic roller lever and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a industrial CENELEC EN50041 form A format. It is IP66 and IK07 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV, EAC standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. · · · This XCKJ industrial format (EN 50041) limit switch has a thermoplastic roller lever and a Zamak body. · · This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a industrial CENELEC EN50041 form A format. · · It is IP66 and IK07 impact resistant, making it ideal for heavy duty use in harsh conditions. · · It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. · · It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508, BV, EAC standards. · · Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. · · Variable composition design allows late modifications on the switch, for example change of connection type or head.
Out of stock
Description
Technical Specifications Technical Specifications End switch Degree of protection (IP rating) IP66/IP67 Interface type None Explosion safety category for dust None Explosion safety category for gas None Type of interface for safety communication None Construction type housing Cuboid Switching function Quick-break switch Housing material Metal Type of electric connection Cable entry metrical Type of control element Roller lever Number of safety auxiliary contacts 0 Rated operation current Ie at AC-15, 125 V – A Rated operation current Ie at DC-13, 125 V – A Number of contacts as normally open contact 1 Rated operation current Ie at DC-13, 230 V 0.27 A Number of contacts as change-over contact 0 Height of sensor 77 mm Length of sensor 44 mm Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at AC-15, 230 V 3 A Number of contacts as normally closed contact 1 Diameter sensor – mm Width sensor 40 mm Ambient temperature during operating -25 – 70 °C Suitable for safety functions No Switching function latching No Output electronic No Forced opening Yes With status indication No · Technical Data Sheet – Click to Download
