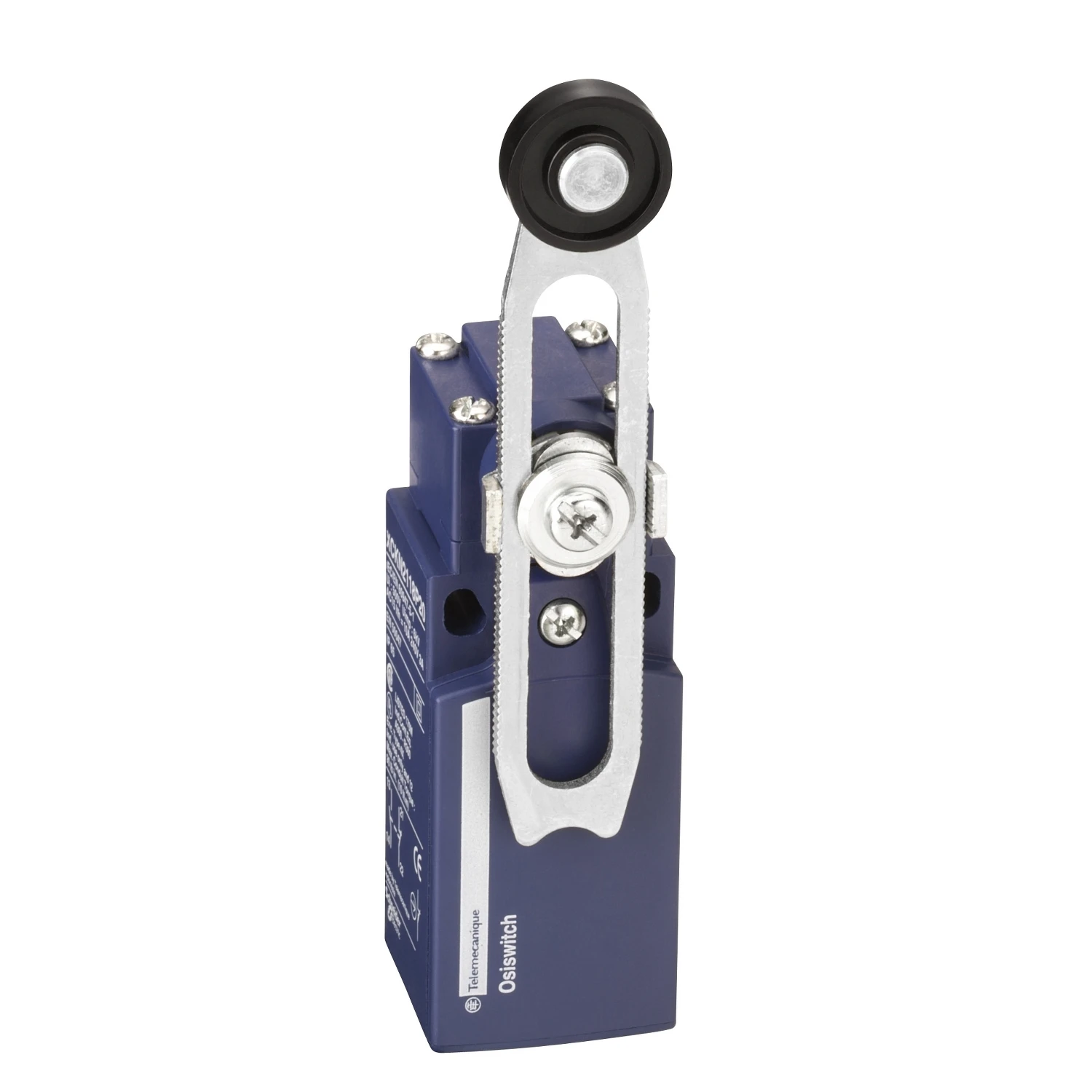

Telemecanique Sensors Limit switch XCKN, th.plastic roller lever var.length, 1NC+1NO, snap,
Telemecanique Sensors Limit switch XCKN, th.plastic roller lever var.length, 1NC+1NO, snap,
Telemecanique Sensors Limit switch XCKN, th.plastic roller lever var.length, 1NC+1NO, snap, - Image 2
Telemecanique Sensors Limit switch XCKN, th.plastic roller lever var.length, 1NC+1NO, snap, - Image 3
Telemecanique Sensors Limit switch XCKN, th.plastic roller lever var.length, 1NC+1NO, snap, - Image 4

Telemecanique Sensors Limit switch XCKN, th.plastic roller lever var.length, 1NC+1NO, snap,

£22.22 Incl. VAT

Limit switch XCKN, th.plastic roller lever var.length, 1NC+1NO, snap, M20. range of product: OsiSense XC – series name: standard format – product or component type: limit switch – device short name: XCKN – body type: fixed – head type: rotary head – head material: plastic – fixing mode: by the body – movement of operating head: rotary – contacts type and composition: 1 NC + 1 NO. · · · This product is a compact format limit switch with 1 entry tapped M20 x 1.5 for ISO cable gland. · · It features a plastic fixed body and a rotary head, with a variable length thermoplastic roller lever. · · Contacts: 2-pole NC + NO, snap action. · · This limit switch is sold and packed in lots of 20.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCKN2145P20 Categories: , , , , , Brand: Product Code: 2500255827

Description

Technical Specifications  Technical Specifications End switch Interface type None Type of interface for safety communication None Explosion safety category for dust None Explosion safety category for gas None Type of control element Adjustable roller lever Housing material Plastic Construction type housing Cuboid Type of electric connection Cable entry metrical Degree of protection (IP rating) IP65 Number of safety auxiliary contacts 0 Number of contacts as normally open contact 1 Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V – A Number of contacts as change-over contact 0 Number of contacts as normally closed contact 1 Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at AC-15, 125 V – A Length of sensor 42 mm Height of sensor 157 mm Width sensor 30 mm Rated operation current Ie at DC-13, 230 V 0.1 A Diameter sensor – mm Ambient temperature during operating -25 – 70 °C Switching function latching No With status indication No Output electronic No Forced opening Yes Suitable for safety functions No · Technical Data Sheet – Click to Download
