Limit Switch Xcmd M12 Steel Roller Plunger 1Nc+1No Snap M12

£126.42 Incl. VAT

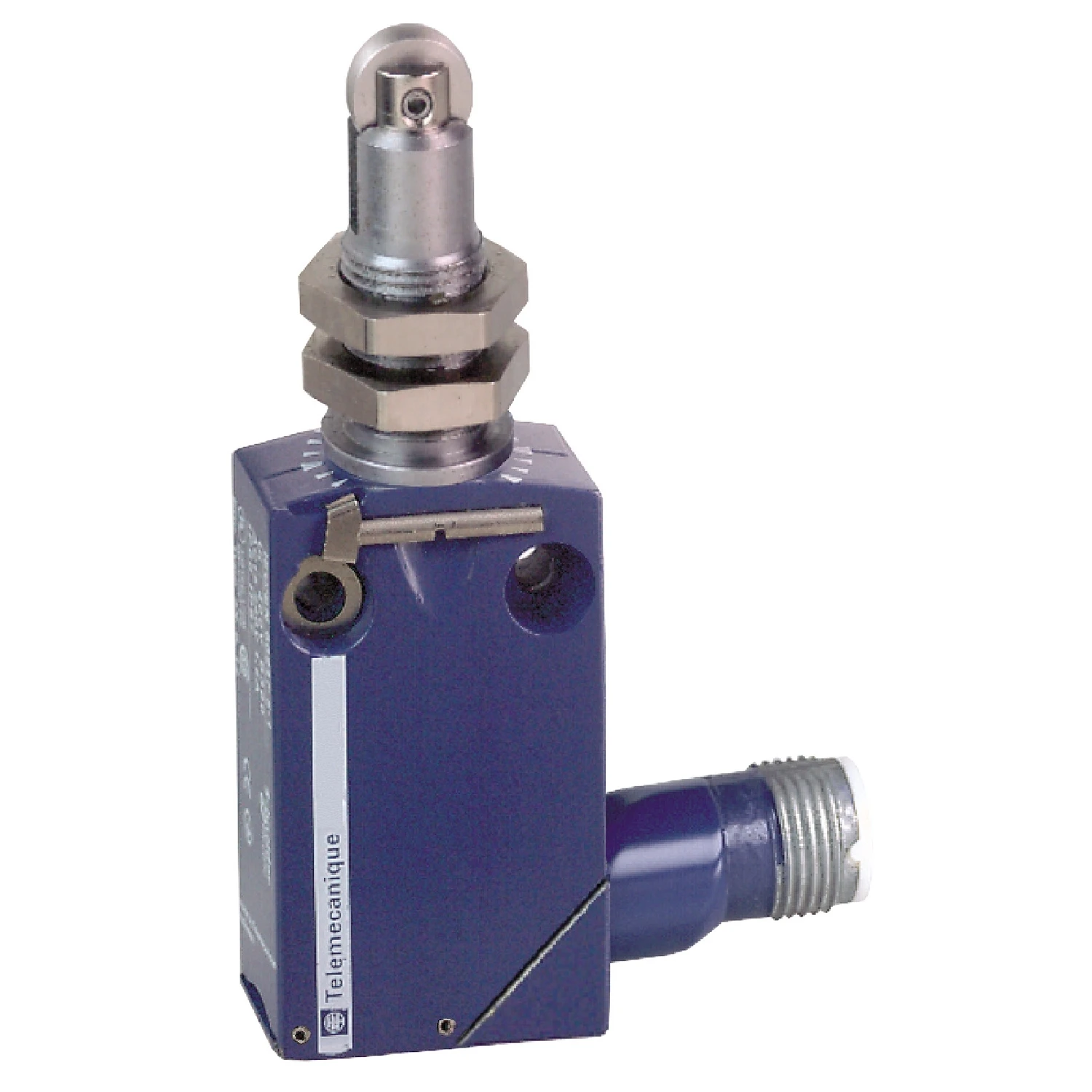

This XCMD miniature format limit switch has a steel roller plunger and a Zamak body. It has 1 x NO + 1 x NC snap action contacts and a M12 5-pin connector. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. · · · Body type Plug-in body · · Head type M12 plunger head · · Body material Zamak · · Type of operator Spring return roller plunger metal

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCMD21F2C12 Categories: , , Brand: Part Number: 2500256145

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for gas None Explosion safety category for dust None Degree of protection (IP rating) IP66/IP67 Type of control element Roller cam Interface type None Housing material Metal Type of interface for safety communication None Type of electric connection Connector M12 Switching function Quick-break switch Alignment of the control element Roller cam straight Rated operation current Ie at AC-15, 24 V – A Number of safety auxiliary contacts 0 Number of contacts as normally open contact 1 Rated operation current Ie at AC-15, 125 V – A Rated operation current Ie at DC-13, 230 V 0.22 A Rated operation current Ie at AC-15, 230 V 3 A Number of contacts as change-over contact 0 Number of contacts as normally closed contact 1 Rated operation current Ie at DC-13, 125 V – A Rated operation current Ie at DC-13, 24 V – A Width sensor 30 mm Length of sensor 16 mm Height of sensor 50 mm Diameter sensor – mm Ambient temperature during operating -25 – 70 °C With status indication No Output electronic No Forced opening Yes Suitable for safety functions No Switching function latching No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
