Limit switch XCMD, steel roller lever, 1NC+1NO, snap, M12
Limit switch XCMD, steel roller lever, 1NC+1NO, snap, M12
Limit switch XCMD, steel roller lever, 1NC+1NO, snap, M12 - Image 2

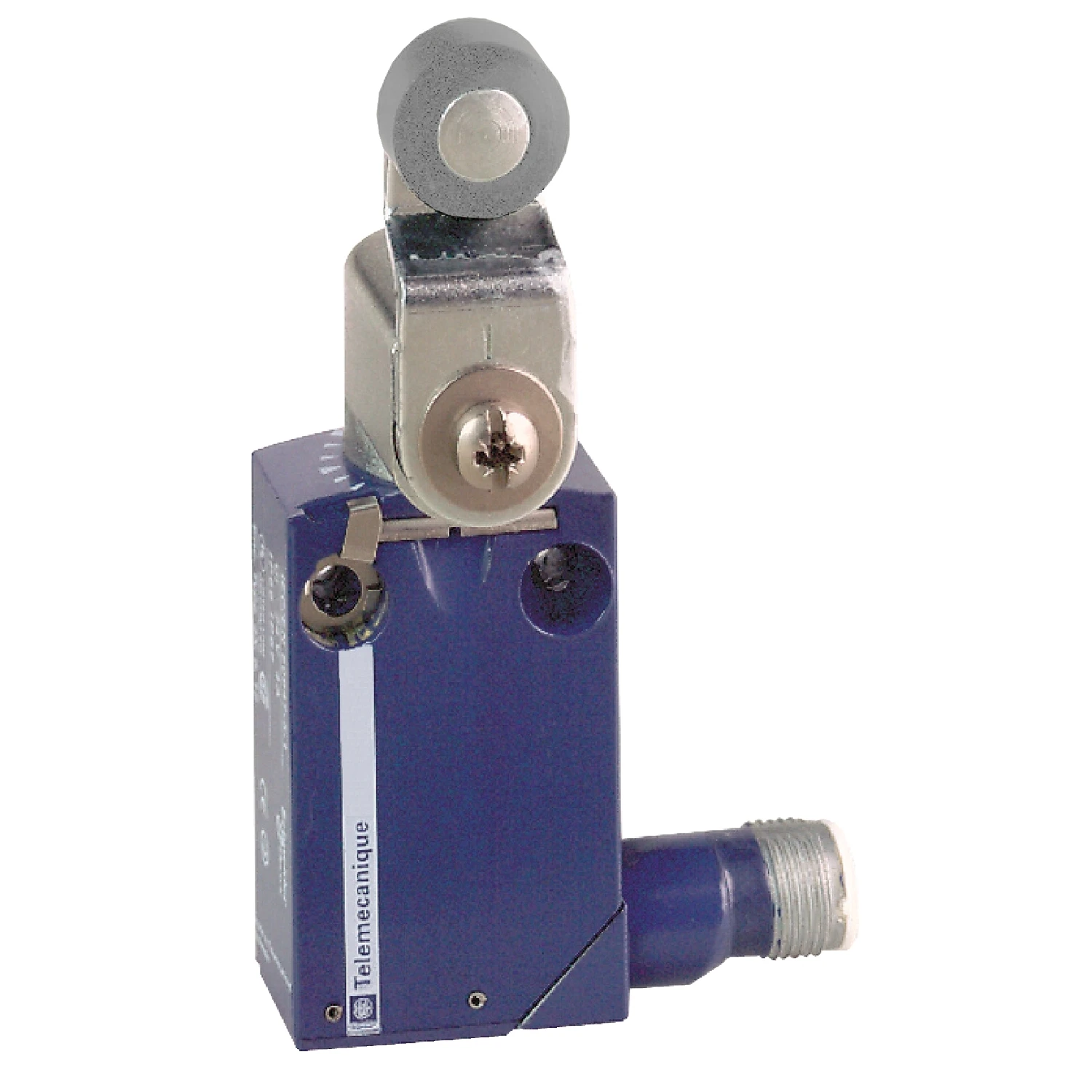

Limit switch XCMD, steel roller lever, 1NC+1NO, snap, M12 - Image 3
Limit switch XCMD, steel roller lever, 1NC+1NO, snap, M12 - Image 4

Limit switch XCMD, steel roller lever, 1NC+1NO, snap, M12

£95.12 Incl. VAT

This XCMD miniature format limit switch has a steel roller lever and a Zamak body. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. · · · This XCMD miniature format limit switch has a steel roller lever and a Zamak body. · · This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. · · It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. · · It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. · · It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. · · Contact current: 16A · · Contact voltage: 30VDC/250VAC

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XCMD2116C12 Categories: , , Brand: Part Number: 2500165196

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for dust None Type of interface for safety communication None Degree of protection (IP rating) IP66/IP67 Interface type None Explosion safety category for gas None Type of electric connection Connector M12 Switching function Quick-break switch Housing material Metal Type of control element Roller lever Number of contacts as normally open contact 1 Diameter sensor – mm Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at DC-13, 230 V 0.22 A Number of contacts as normally closed contact 1 Number of contacts as change-over contact 0 Length of sensor 16 mm Rated operation current Ie at AC-15, 125 V – A Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at DC-13, 125 V – A Number of safety auxiliary contacts 0 Width sensor 30 mm Height of sensor 50 mm Ambient temperature during operating -25 – 70 °C Suitable for safety functions No Switching function latching No With status indication No Output electronic No Forced opening Yes · Technical Data Sheet – Click to Download
