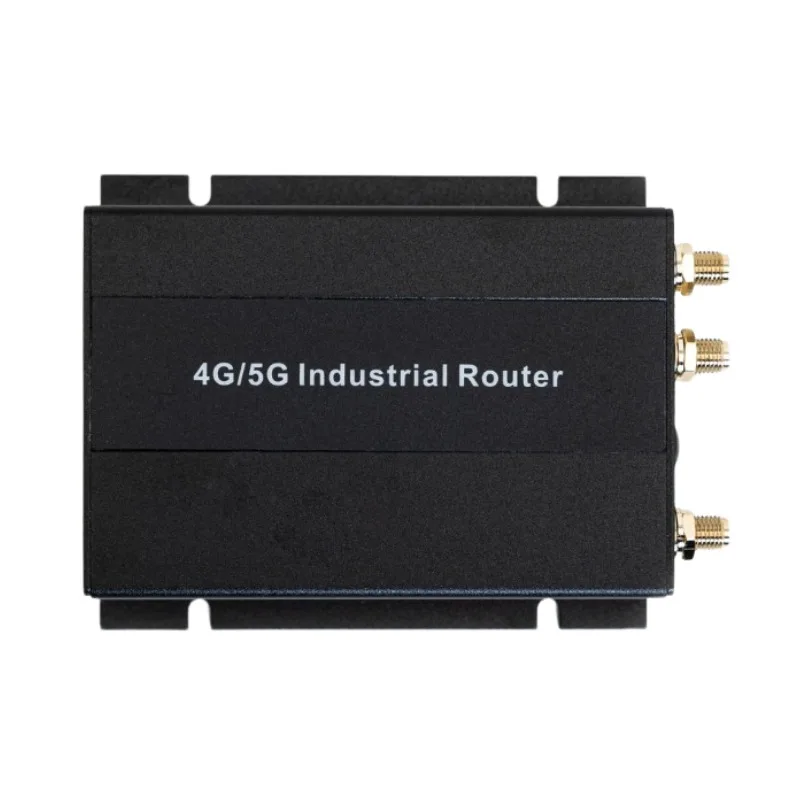

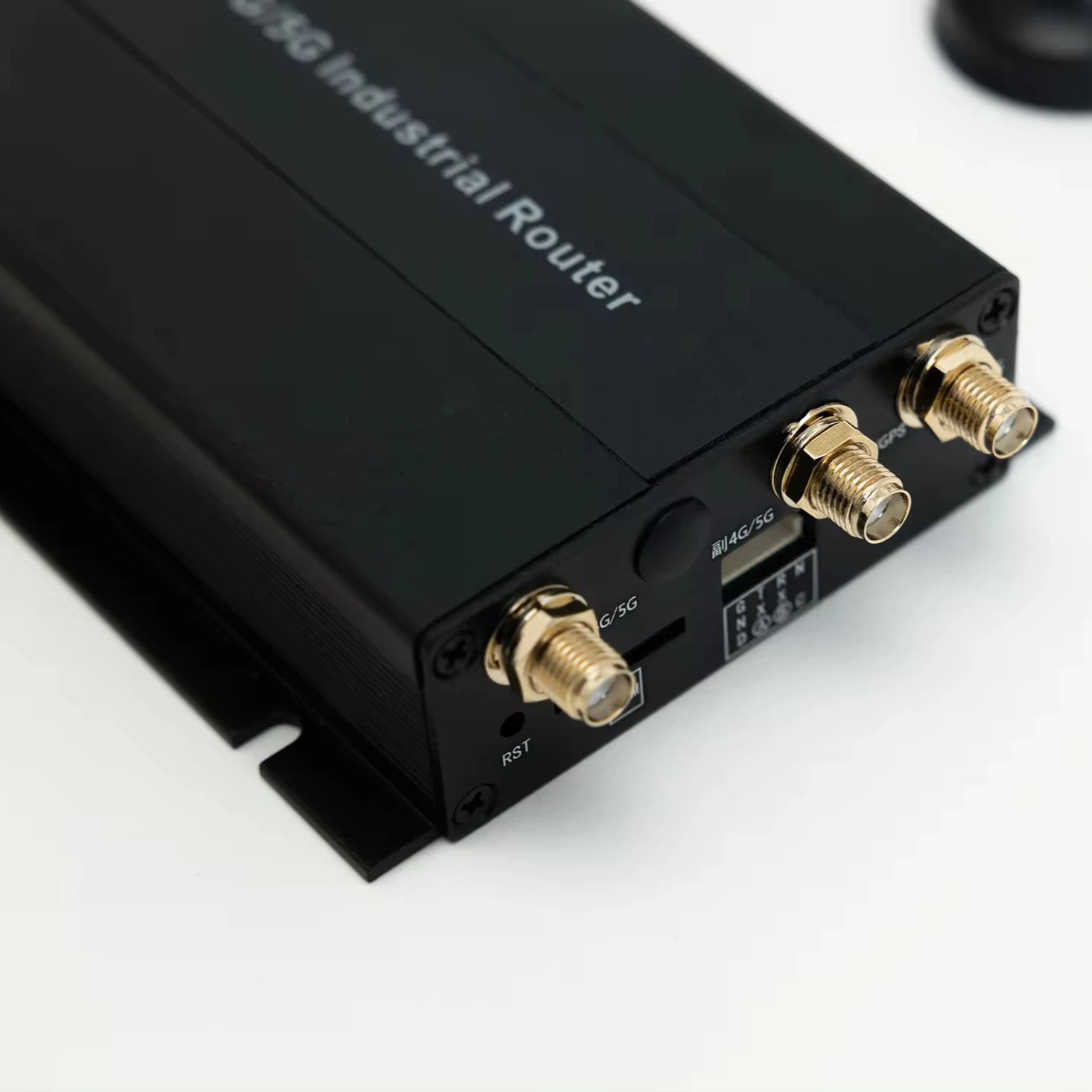

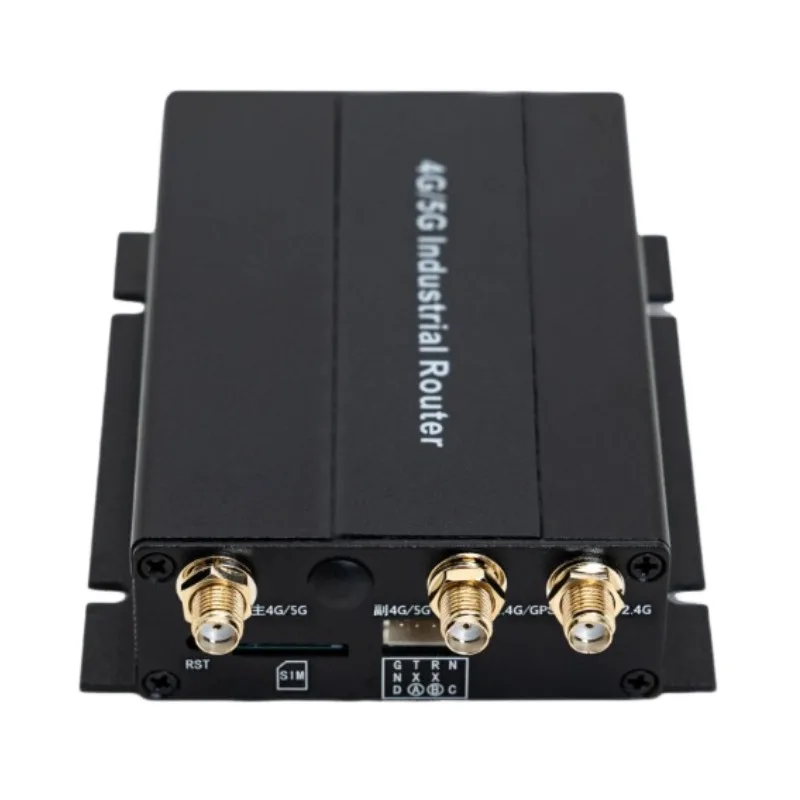

LINBLE T310-AU Mini Home Modem 4G Cellular WiFi Hotspot with SIM Card Slot Ethernet Port for Travel Camping Motor Home Use

Description

Product description

Marketing Campaign Product Paramenters Hardware parameters Wireless interface IEEE802.11b/g/n Operating frequency band 2400-2483.5MHz Antenna SMA external rotation and internal hole WIFI transmission rate 300Mbps（MAX） External interface LAN port: 2 (LAN1 is WAN/LAN adaptive) RS232/485 interface: 1 SIM card slot: 1 / Antenna connector: 1-4 (optional) Indicator light: 4 DC power supply interface: 1 reset key: 1 Wifi Data 802.11n: -66dBm at 300Mbps/HT40 MCS7 :+15.5dBm 802.11b: -86dBm at 11Mbps/CCK: +18 dBm 802.11g: – 73dBm at 54Mbps/OFDM: +15.5dBm Frequency band supported (optional) Frequency band supported (optional) / Europe FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 / North America (NA) FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 Global FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 Storage memory Store 8 MB Memory 64MB Overall dimensions Length, width and height: 96.4 * 67.5 * 30 mm (excluding antenna interface) Power source DC power supply: 12-24V/1A (optional 12/24 V) Power consumption (current) Less than 400mA Work environment Operating temperature: – 20 ° C ~ + 70 ° C Storage temperature: -40 ° C ~ + 80 ° C Humidity: 5% ~ 95%, non-condensing Software function The way to surf the Internet 4G dial-up DHCP/Static IP/PPPoE Number of users supported Wired: 253, Wireless: 30 Operating system requirements Windows XP/VISTA Linux 2.6 Windows 7 and above MAC OS: 10.3.7 and above Browser requirements IE: 6.0 and above Safari: 1.2.4 and above Firefox: 2.0.0.8 and above Security management Set up a firewall to prevent malicious attacks from the Internet on computers in the LAN. MAC filtering: prohibit MAC addresses that have been added. Access control: Control the access of computers in the LAN to the Internet. Port blocking: Block certain viruses from continuously initiating connections through a certain port to prevent Dos attacks. System Services Virtual server: Set an internal server for Internet users to access DMZ: When the open port of the virtual server to be set is uncertain, it can be set as a DMZ host Port triggering: The wireless router can automatically open the inward service port according to the port of the LAN accessing the Internet. Serial port service: realize serial port data transmission, AT command control and other functions Equipment management Locale Software upgrade NTP server settings Remote management Back up system setup information Restart Recover Settings Information from File Change the password and restore to the factory settings WLAN security mode Open System WPA2PSK (ie WPA-PSK WPA-PSK and WPA2-PSK WPA2-PSK mixed mode) WPAPSK WPA1WPA2 (i.e. WPA and WPA2 mixed mode) Details Images Scene Application Exhibition Manufacturing Technique Certifications Recommended by seller LINBLE T300-G Home Indoor CPE 5G SA/NSA 4G 3G GPRS Router Modem 1000mbps Qualcomm Chipset Firewall VPN Full Network Access.
