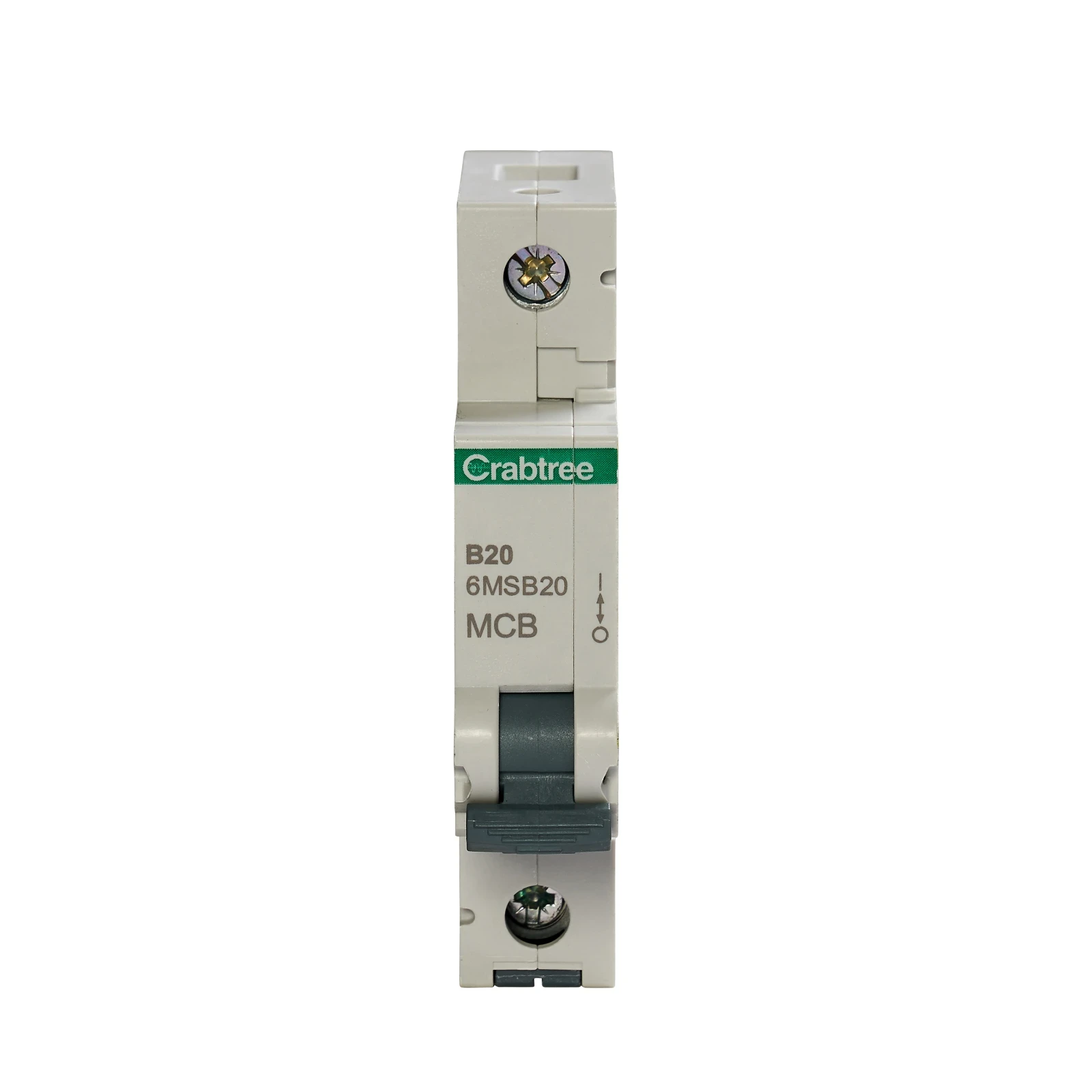

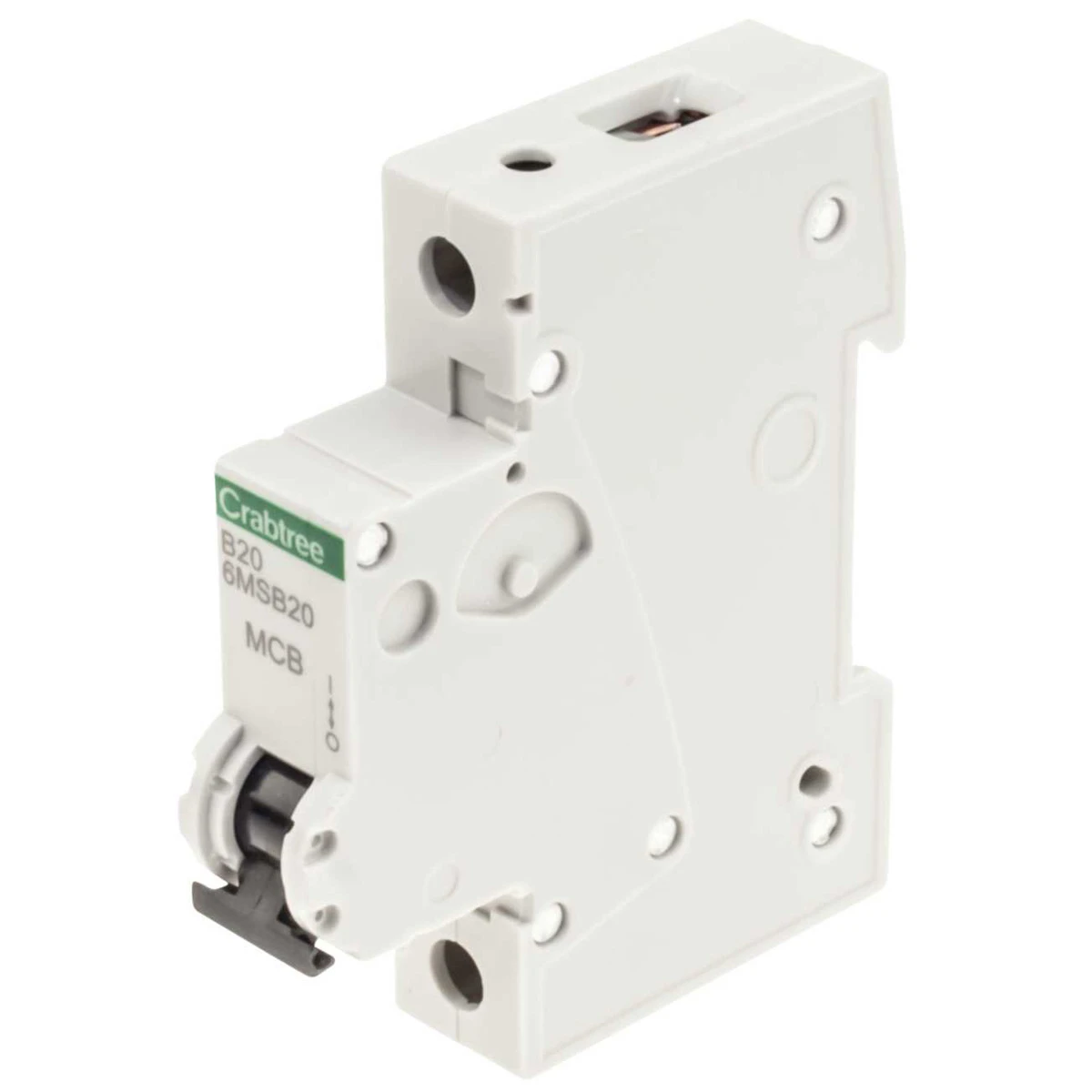

Crabtree 20A SP Type B 6kA MCB
£5.96 Incl. VAT
This Miniature Circuit Breaker is a thermal-magnetic current limiting type, having a compact construction which has been achieved by not only minimising the number of parts but also the number of welded joints and connections. The MCB has an easy to operate handle with a trip-free toggle mechanism – so even when the handle is held in the ‘on’ position the MCB is free to trip. Single pole MCBs with Type B characteristics (3-5In) are suited for use on loads with little or no switching surges, such as occur on domestic applications. Back-up protection is required only if the prospective short circuit current at the point of installation exceeds the breaking capacity of the MCB. When providing back-up protection consideration must be given to discrimination between the MCB and fuse. · · · Single pole MCB, 20A B curve · · Energy limiting Class 3 · · Quick release DIN clip · · No miss busbar connection
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated current 20 A Recess depth 73 mm Rated voltage 230 V Rated insulation voltage Ui 400 V Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Current limiting class 3 Width in number of modular spacings 1 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Frequency 50 – 50 Hz Over voltage category 3 Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
