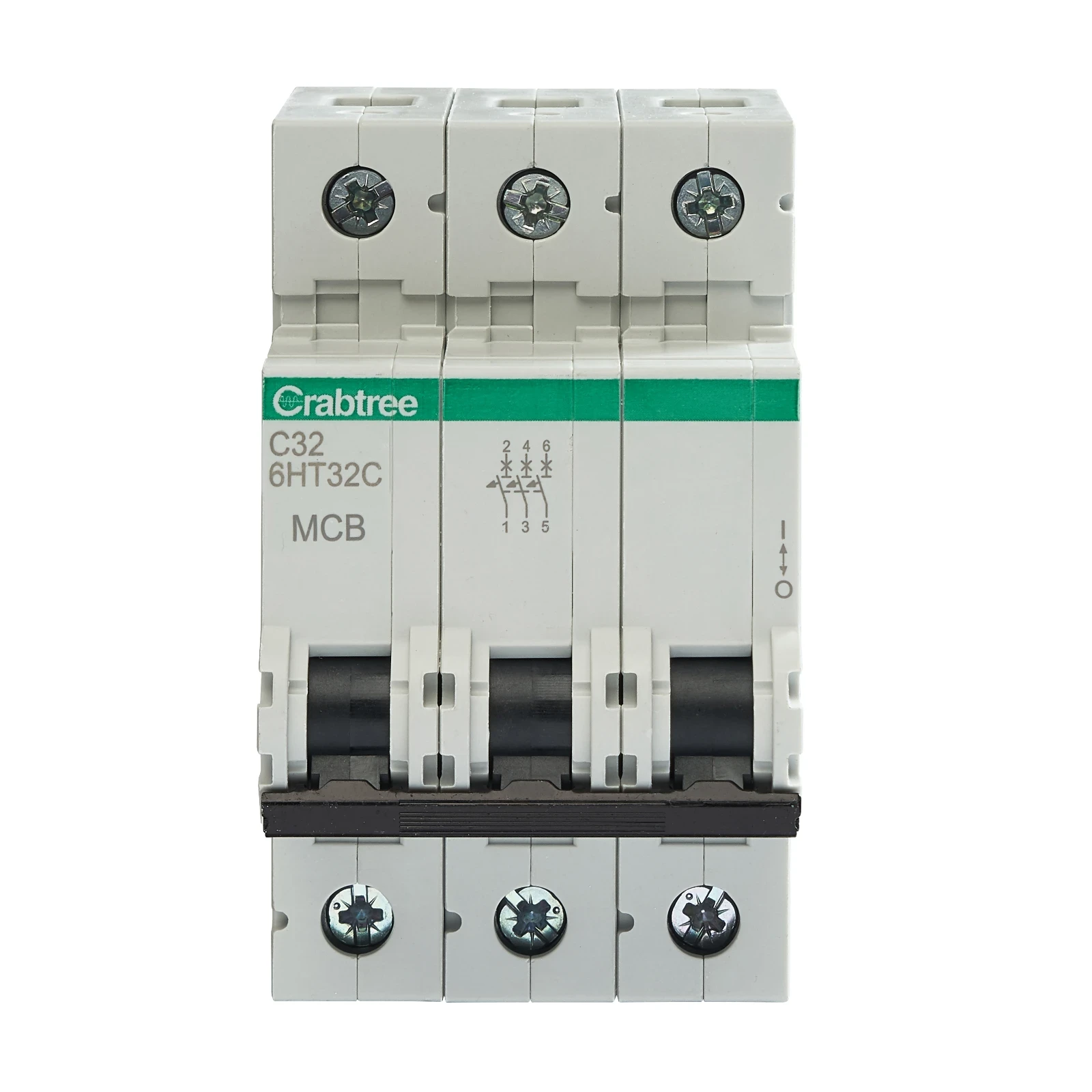

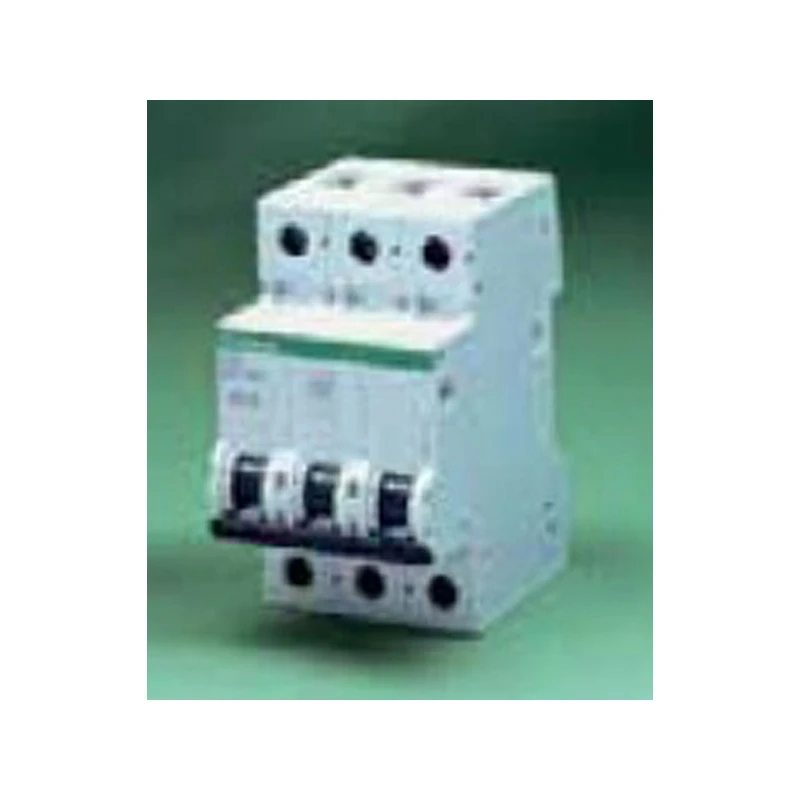

Crabtree C32 10kA 3P MCB (3 Module Width)
Crabtree C32 10kA 3P MCB (3 Module Width)
Crabtree C32 10kA 3P MCB (3 Module Width) - Image 2
Crabtree C32 10kA 3P MCB (3 Module Width) - Image 3

Crabtree C32 10kA 3P MCB (3 Module Width)

£36.02 Incl. VAT

Crabtree MCB, Loadstar Type C, 32A, Triple Pole, 240V AC, Breaking Capacity 10kA · · · C curve trip characteristic (5-10In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 415V AC · · Triple pole MCB · · Tripping Characteristics C Curve · · Energy limiting Class 3 · · Mounting type Din rail · · Voltage Rating 230V 415V · · IP20

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HT32C Categories: , , Brand: Product Code: 2500098105

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated insulation voltage Ui 400 V Current limiting class 3 Number of protected poles 3 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated current 32 A Width in number of modular spacings 3 Rated voltage 230 V Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
