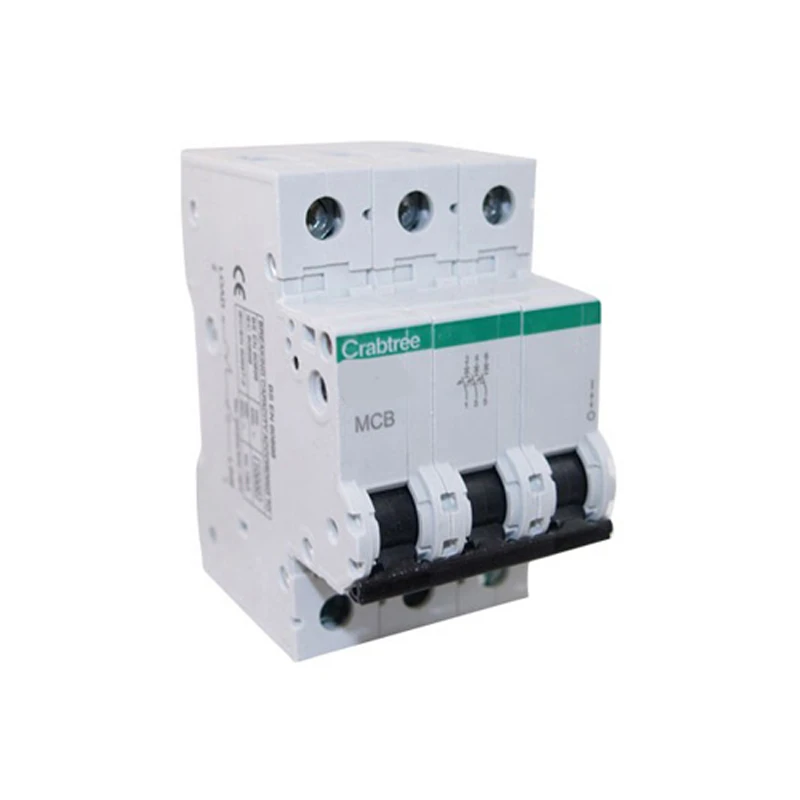

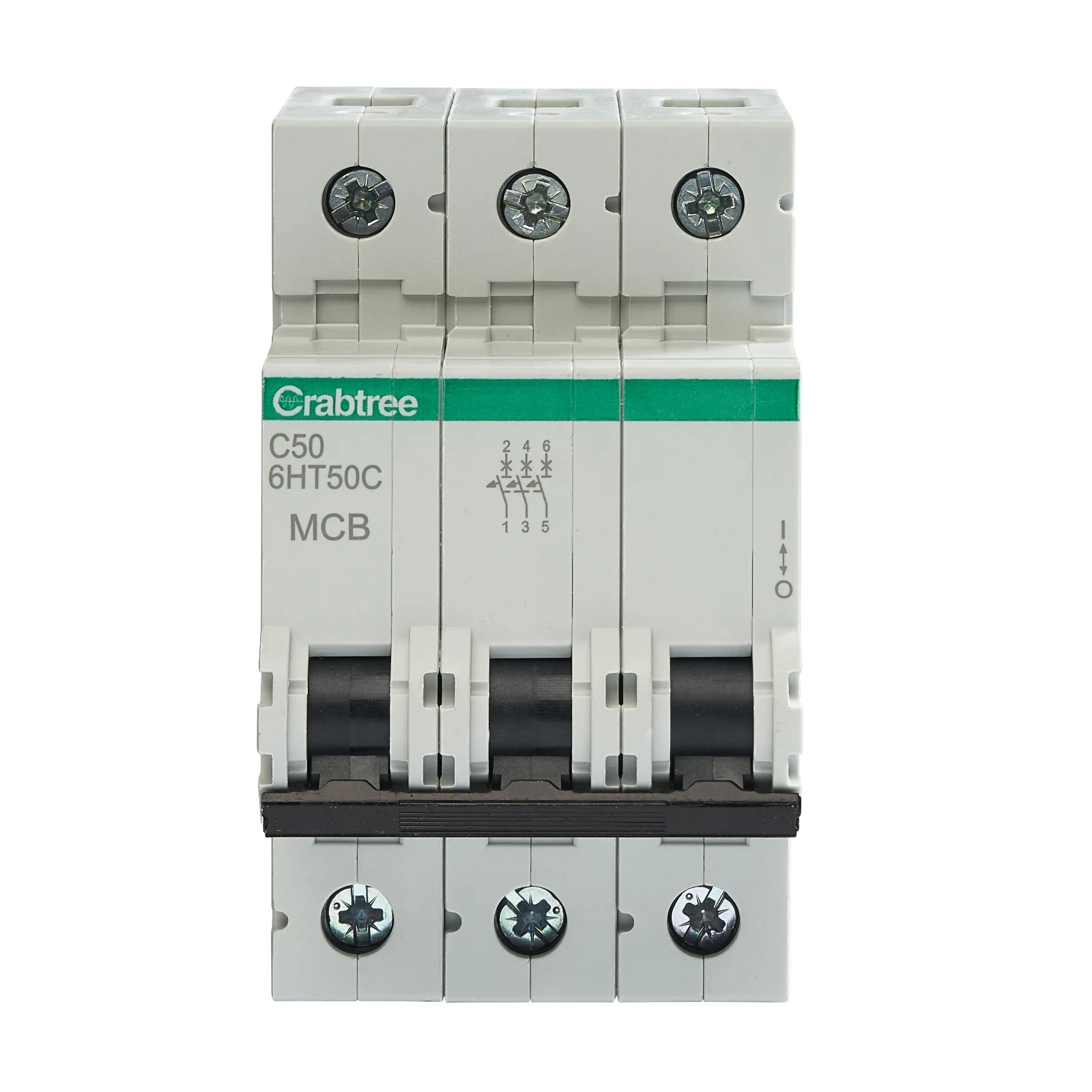

Crabtree C50 10kA 3P MCB (3 Module Width)
Crabtree C50 10kA 3P MCB (3 Module Width)
Crabtree C50 10kA 3P MCB (3 Module Width) - Image 2
Crabtree C50 10kA 3P MCB (3 Module Width) - Image 3

Crabtree C50 10kA 3P MCB (3 Module Width)

£36.02 Incl. VAT

Crabtree Loadstar Miniature Circuit Breaker is suitable for use in standard type B distribution boards and TP type A distribution boards. · · · C curve trip characteristic (5-10In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 415V AC · · Triple pole MCB · · Energy limiting Class 3

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HT50C Categories: , , Brand: Product Code: 2500098115

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 50 A Rated insulation voltage Ui 400 V Rated voltage 230 V Width in number of modular spacings 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Over voltage category 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 3 Current limiting class 3 Number of protected poles 3 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
