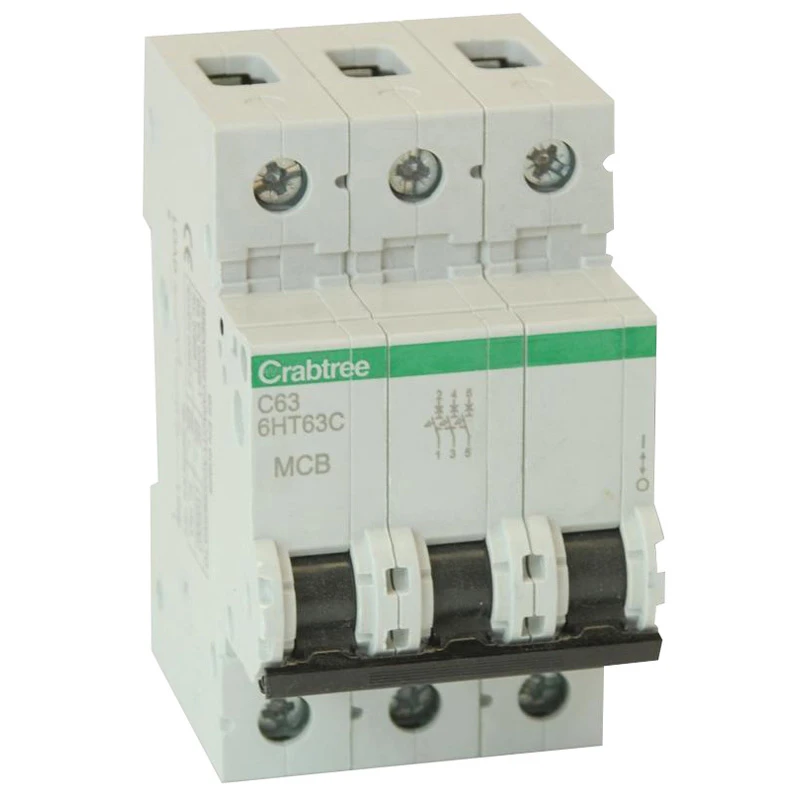

Crabtree C63 10kA 3P MCB (3 Module Width)
Crabtree C63 10kA 3P MCB (3 Module Width)
Crabtree C63 10kA 3P MCB (3 Module Width) - Image 2
Crabtree C63 10kA 3P MCB (3 Module Width) - Image 3

Crabtree C63 10kA 3P MCB (3 Module Width)

£36.02 Incl. VAT

Loadstar Range, Type C, 63A, Triple Pole, 230 – 240V AC, 10kA Breaking Capacity · · · C curve trip characteristic (5-10In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 415V AC · · Triple pole MCB · · Energy limiting Class 3

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HT63C Categories: , , Brand: Product Code: 2500098137

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated insulation voltage Ui 400 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Width in number of modular spacings 3 Current limiting class 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 3 Over voltage category 3 Rated current 63 A Frequency 50 – 50 Hz Rated voltage 230 V Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No
