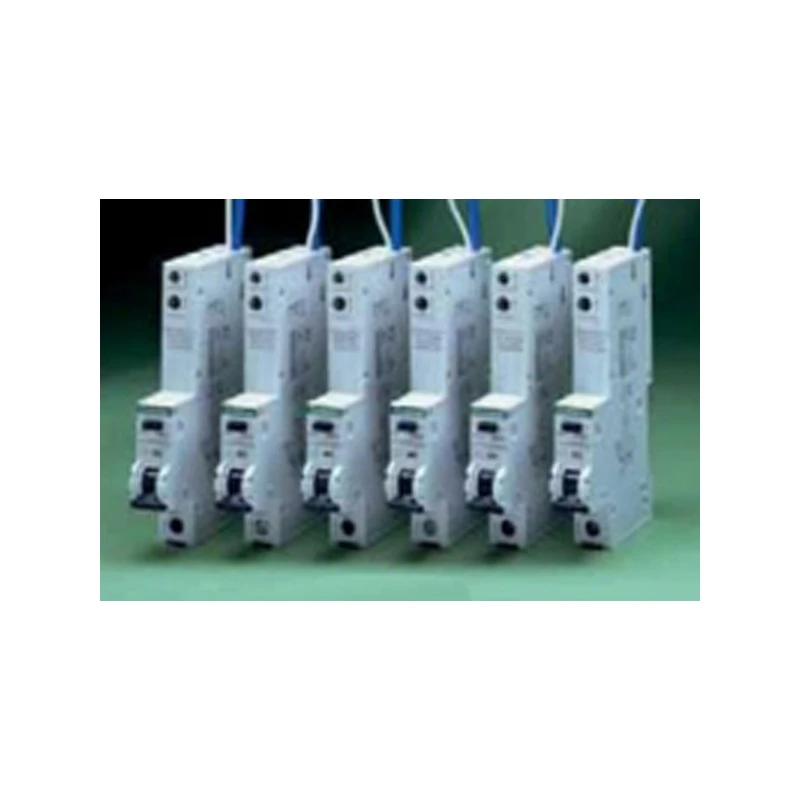

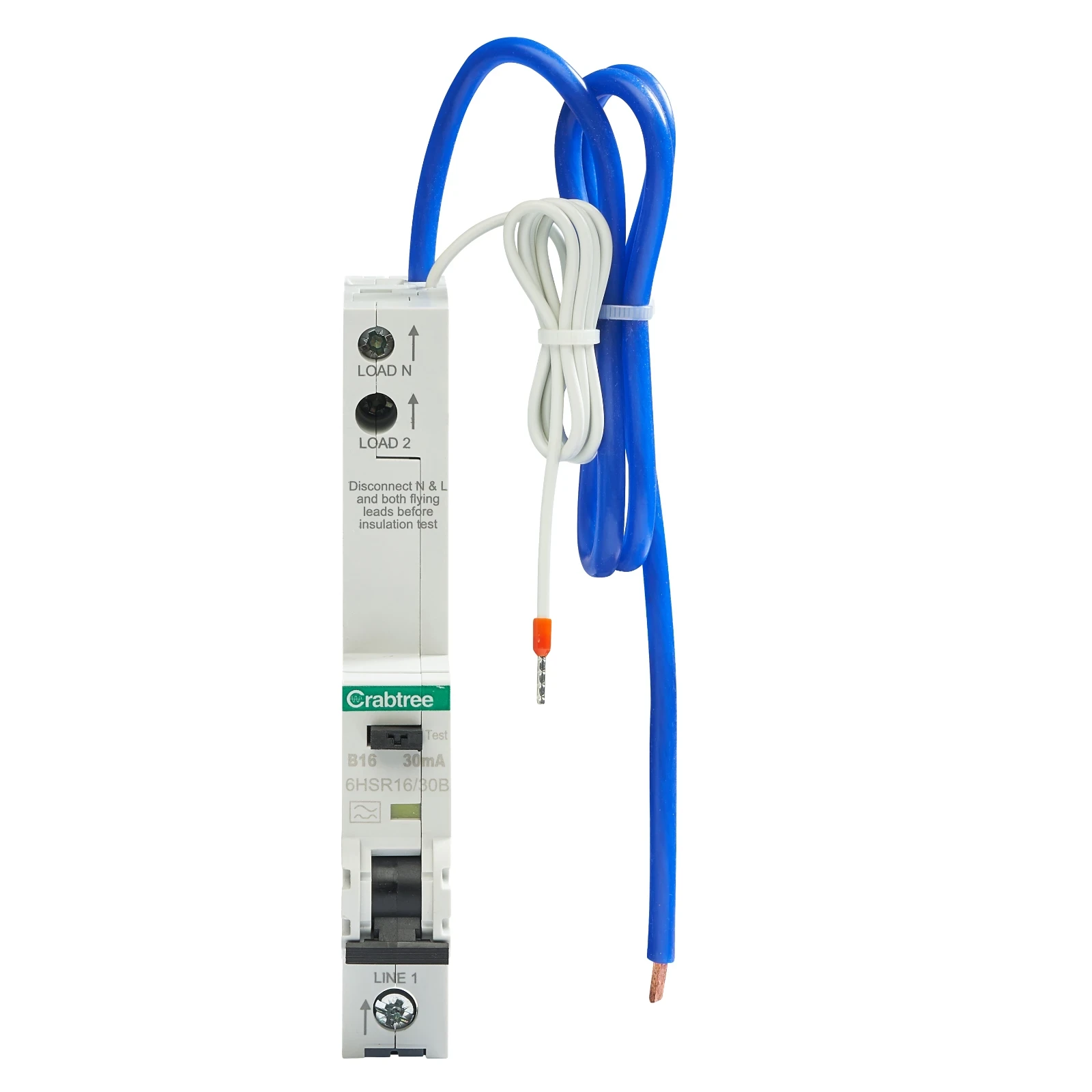

Loadstar RCBO SPN Type B 1 Module 16A 30mA 10kA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Rated current 16 A Tripping characteristic (type/curve) B Rated voltage 230 V Rated fault current 0.03 A Rated insulation voltage Ui 400 V Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Over voltage category 3 Number of poles (total) 1 Current limiting class 3 Width in number of modular spacings 1 Rated short-circuit breaking capacity according to EN 61009 10 kA Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 45 °C Anti-nuisance tripping version No Concurrently switching N-neutral No Flush-mounted installation No With interlocking device No · Technical Data Sheet – Click to Download
