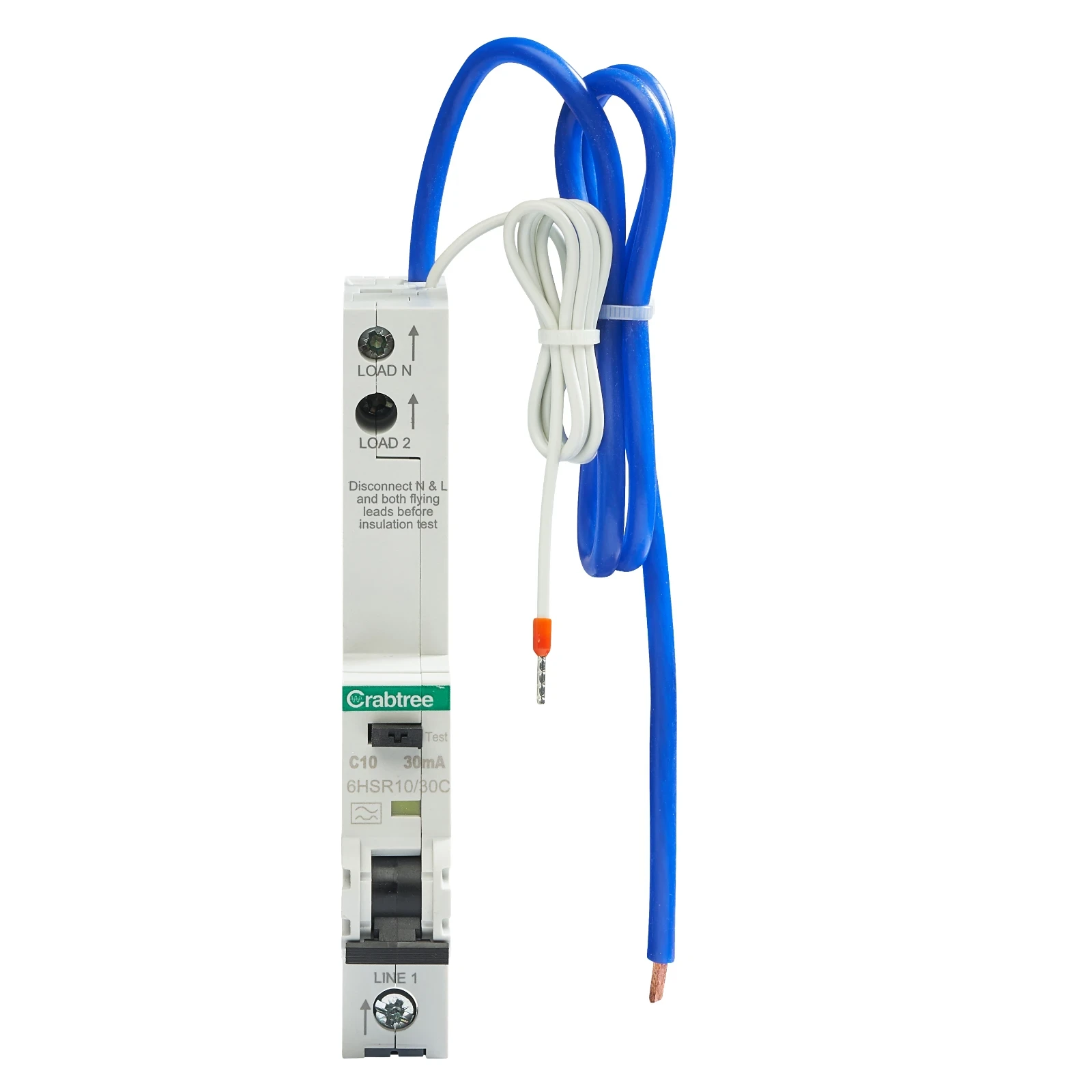

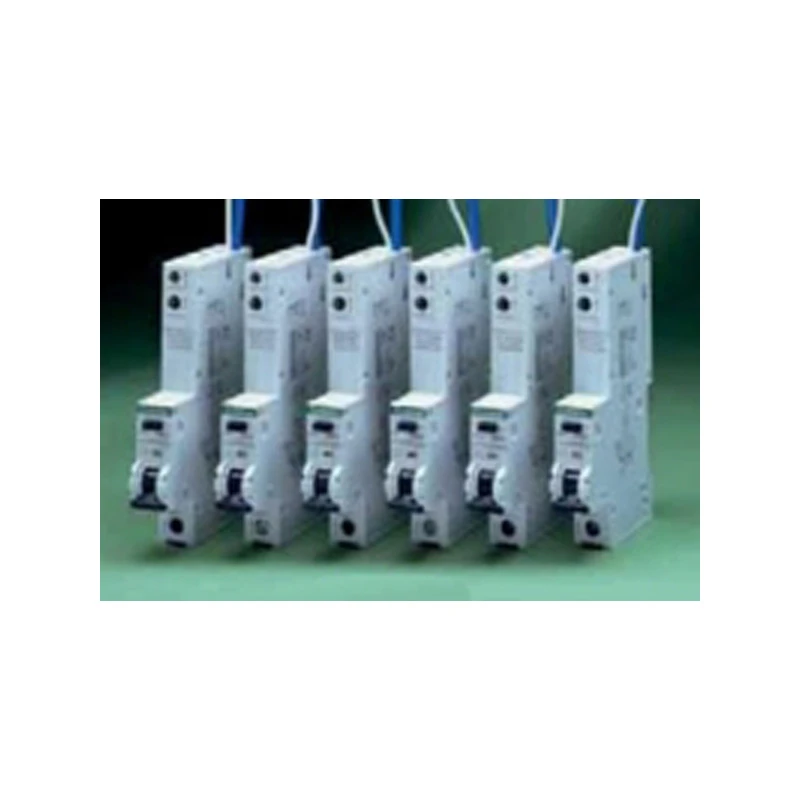

Loadstar RCBO SPN Type C 1 Module 10A 30mA 10kA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Rated voltage 230 V Tripping characteristic (type/curve) C Width in number of modular spacings 1 Rated current 10 A Current limiting class 3 Number of poles (total) 1 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated fault current 0.03 A With interlocking device No Ambient temperature during operating -5 – 45 °C Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Over voltage category 3 Rated short-circuit breaking capacity according to EN 61009 10 kA Rated insulation voltage Ui 400 V Concurrently switching N-neutral No Flush-mounted installation No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
