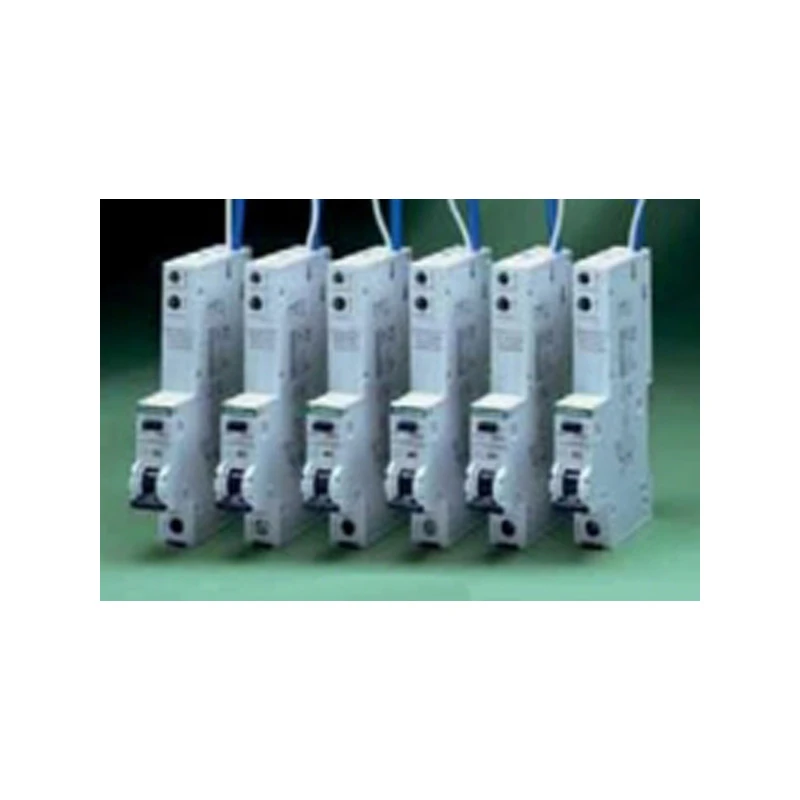

Crabtree C16 30mA 10kA 1P+N Type A RCBO (1 Module Width)
Crabtree C16 30mA 10kA 1P+N Type A RCBO (1 Module Width)
Crabtree C16 30mA 10kA 1P+N Type A RCBO (1 Module Width) - Image 2
Crabtree C16 30mA 10kA 1P+N Type A RCBO (1 Module Width) - Image 3

Crabtree C16 30mA 10kA 1P+N Type A RCBO (1 Module Width)

£50.89 Incl. VAT

Crabtree 6HSR16/30C 16A 30mA 1 Module RCBO 10kA,suitable for Loadstar distribution boards · · · Single Module 10kA RCBO · · 16A C curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Crabtree Loadstar Distribution Boards · · Operating Temperature 55C · · single pole · · 16A rated · · Type C · · 30mA Earth fault Protection

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HSR16/30C Categories: , , Brand: Product Code: 2500096054

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Mounting method DIN rail Current limiting class 3 Number of protected poles 1 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Rated voltage 230 V Rated short-circuit breaking capacity according to EN 61009 10 kA Width in number of modular spacings 1 Rated current 16 A Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 45 °C Concurrently switching N-neutral No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
