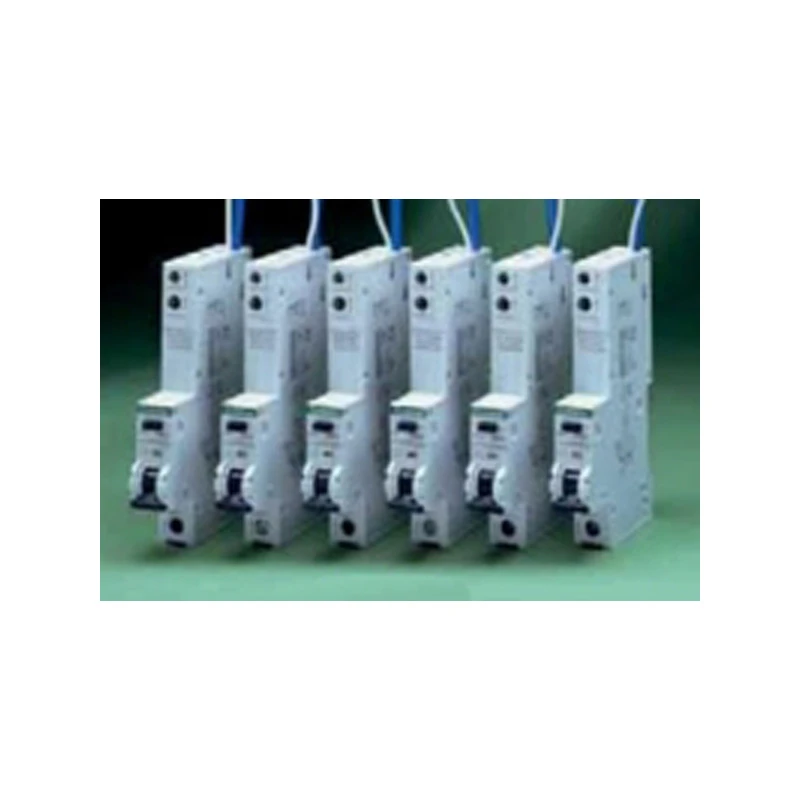

Loadstar RCBO SPN Type C 1 Module 20A 30mA 10kA
Loadstar RCBO SPN Type C 1 Module 20A 30mA 10kA
Loadstar RCBO SPN Type C 1 Module 20A 30mA 10kA - Image 2
Loadstar RCBO SPN Type C 1 Module 20A 30mA 10kA - Image 3

Loadstar RCBO SPN Type C 1 Module 20A 30mA 10kA

£47.39 Incl. VAT

· · 18mm wide modules · · Unswitched Neutral · · Longer flying lead option available · · Suitable for use within Loadstar distribution board · · C release characteristic

32 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HSR20/30C Categories: , , Brand: Part Number: 2500096059

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Rated current 20 A Tripping characteristic (type/curve) C Rated short-circuit breaking capacity according to EN 61009 10 kA Number of poles (total) 1 Number of protected poles 1 Over voltage category 3 Rated fault current 0.03 A Current limiting class 3 Rated insulation voltage Ui 400 V Rated voltage 230 V Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 1 Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 45 °C Concurrently switching N-neutral No Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
