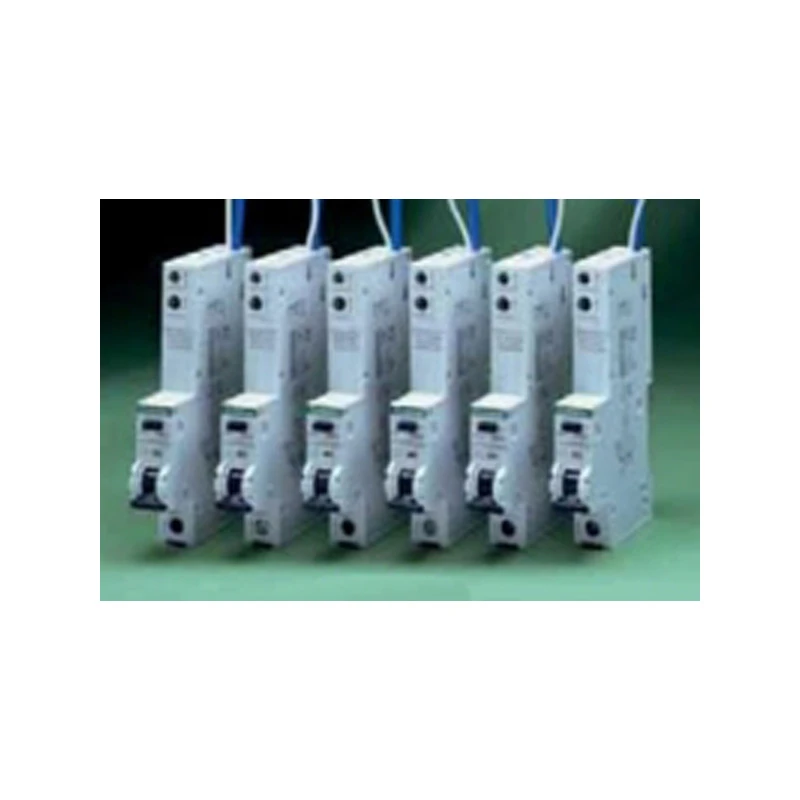

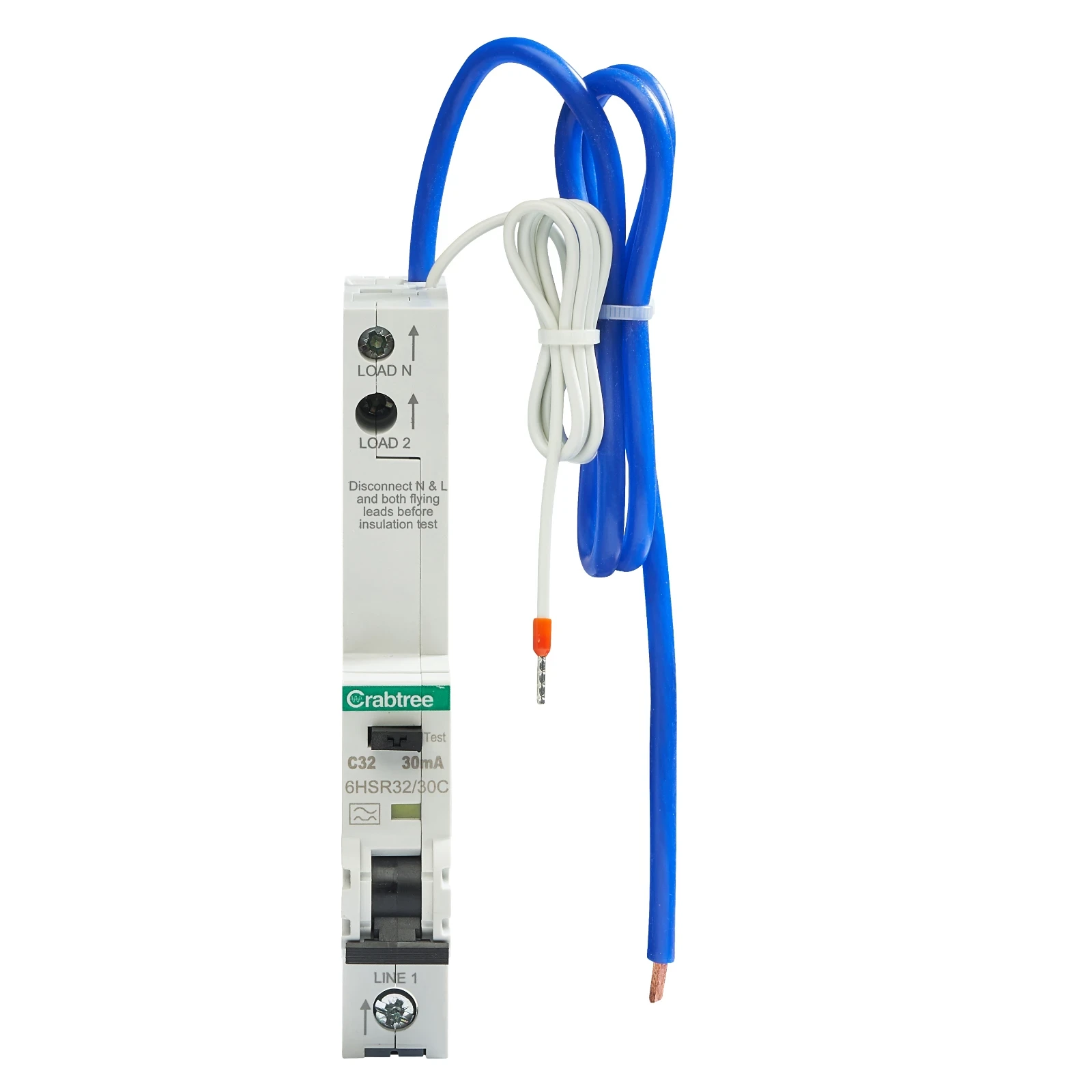

Loadstar RCBO SPN Type C 1 Module 32A 30mA 10kA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Rated current 32 A Rated voltage 230 V Tripping characteristic (type/curve) C Number of protected poles 1 Rated insulation voltage Ui 400 V Over voltage category 3 Current limiting class 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity according to EN 61009 10 kA Number of poles (total) 1 Width in number of modular spacings 1 Rated fault current 0.03 A Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 45 °C Concurrently switching N-neutral No Flush-mounted installation No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
