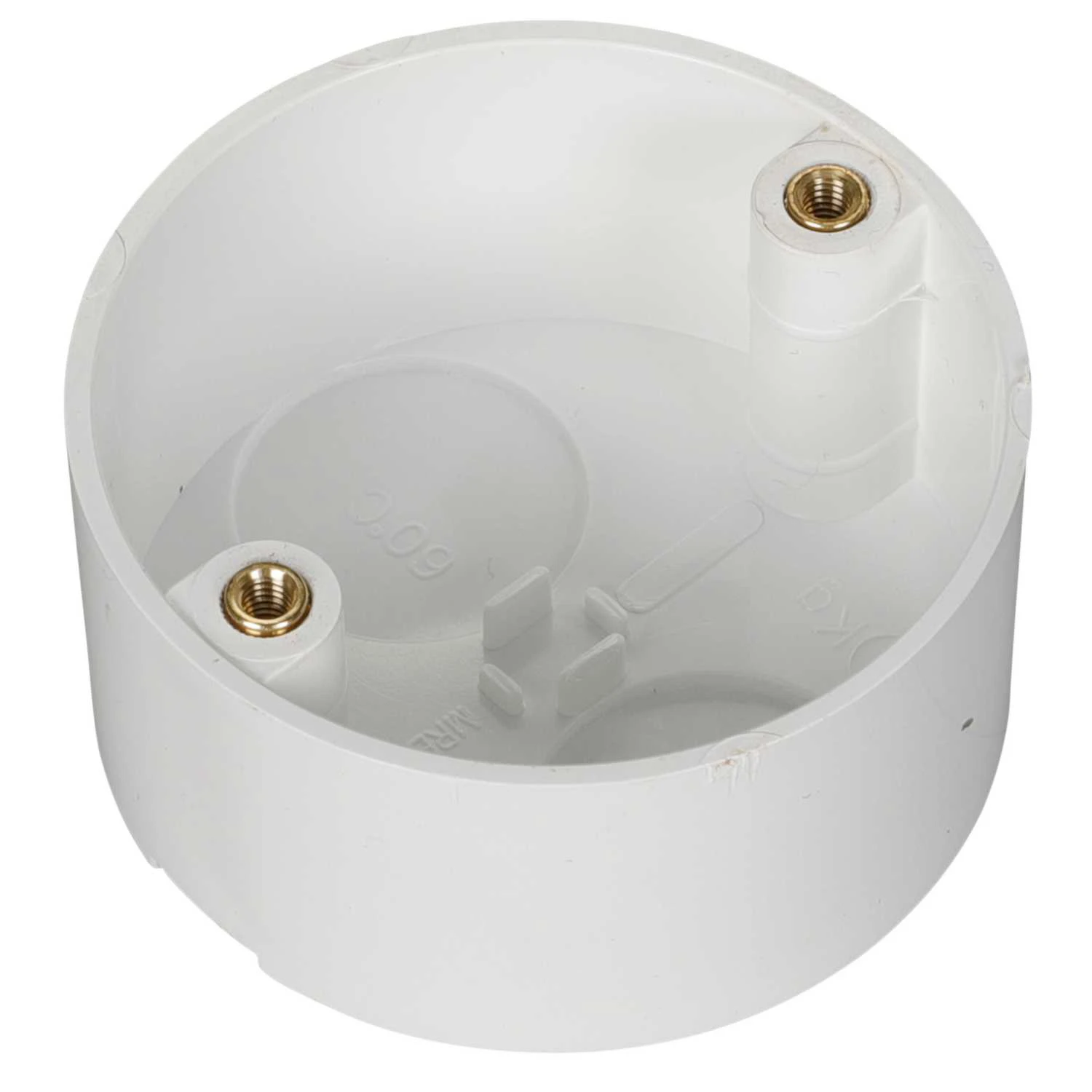

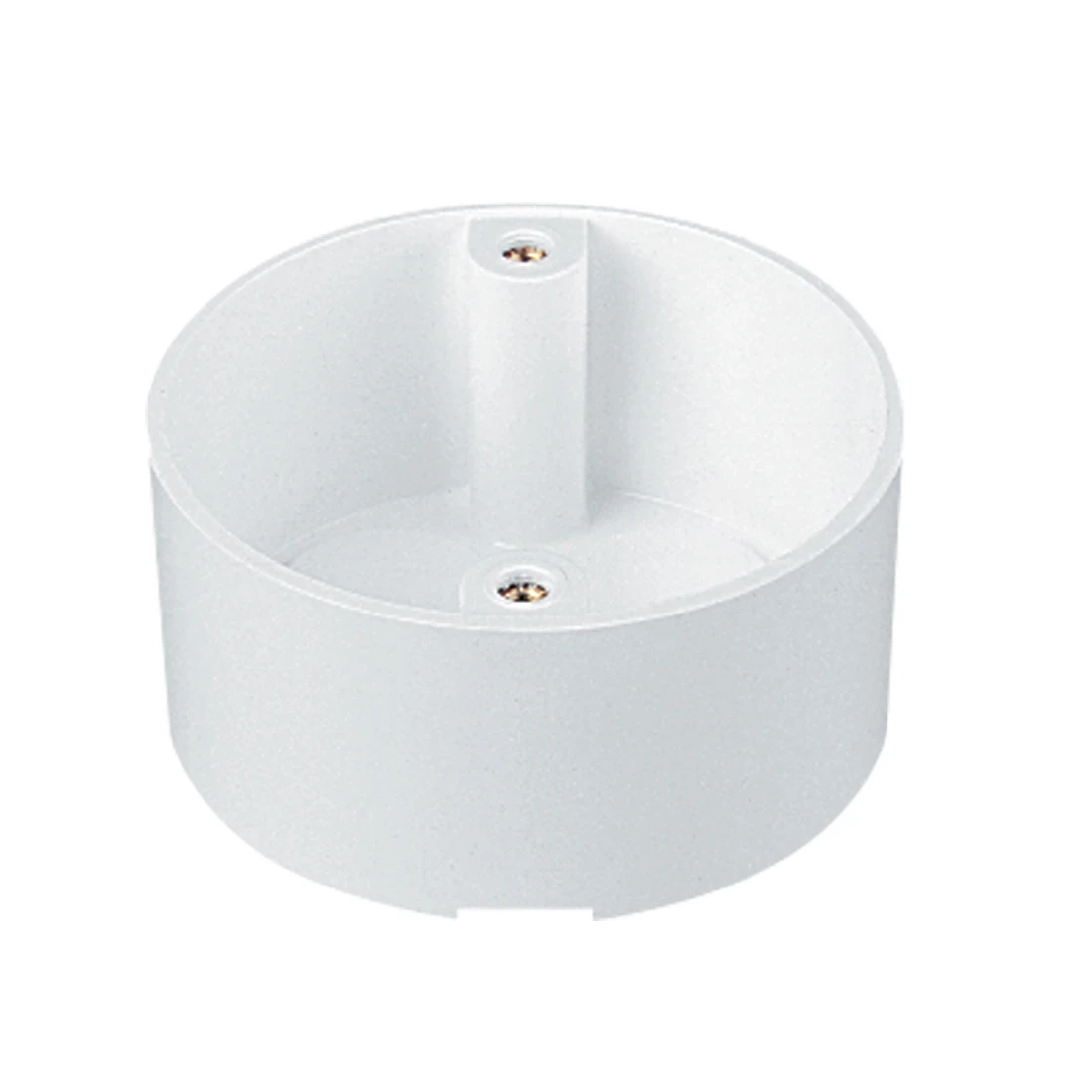

Marshall-Tufflex Loop-In Box PVC-U 25mm White
£2.40 Incl. VAT
Marshall Tufflex Loop-In Box is made of PVC-U with 4 x 25mm knock outs for use with 25mm round conduit. PVC-U plain bored boxes are suitable for suspending loads of up to 3kg centrally at 60°C maximum. Fixing centres at 50.8mm and fitted with M4 brass inserts. · · · With 4 x 20mm knock outs for use with 20mm round conduit · · Suitable for suspending loads of up to 3kg centrally at 60°C maximum · · White colour · · Manufactured using 100% recycled material
Description
Technical Specifications Technical Specifications Surface mounted box/housing Material Plastic Colour White Depth 32 mm Diameter 65 mm Number of entry points 2 Max. conductor cross section – mm² Working temperature -5 – 60 °C Entry point on rear Yes With screening No Tackable No Castable No Explosion-tested version No Mounting in the soil No Casting compound included No Mounting under water No Sealable No Transparent cover No Weatherproof No Halogen free No · Technical Data Sheet – Click to Download
