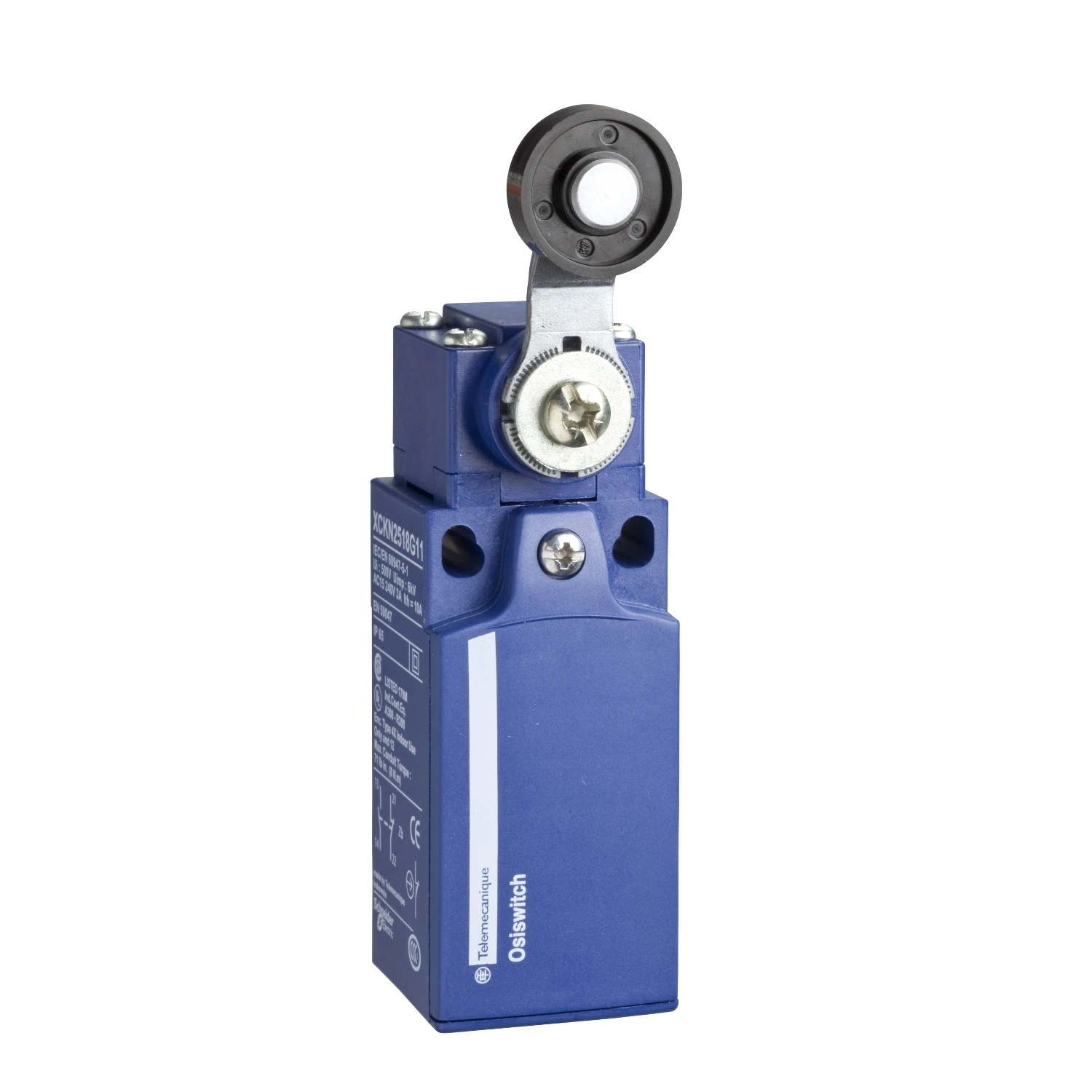

Telemecanique Sensors Limit Switch 1NO + 1NC SA CE ISO20 Thermoplastic Roller Lever

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for dust None Explosion safety category for gas None Interface type None Type of interface for safety communication None Construction type housing Cuboid Housing material Plastic Type of electric connection Cable entry metrical Type of control element Roller lever Degree of protection (IP rating) IP65 Width sensor 30 mm Rated operation current Ie at AC-15, 230 V 3 A Rated operation current Ie at DC-13, 230 V 0.1 A Number of safety auxiliary contacts 0 Length of sensor 44.5 mm Diameter sensor – mm Height of sensor 108 mm Number of contacts as change-over contact 0 Number of contacts as normally open contact 1 Rated operation current Ie at AC-15, 125 V – A Rated operation current Ie at AC-15, 24 V – A Rated operation current Ie at DC-13, 125 V – A Rated operation current Ie at DC-13, 24 V – A Number of contacts as normally closed contact 1 Ambient temperature during operating -25 – 70 °C Suitable for safety functions No With status indication No Forced opening Yes Switching function latching No Output electronic No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
