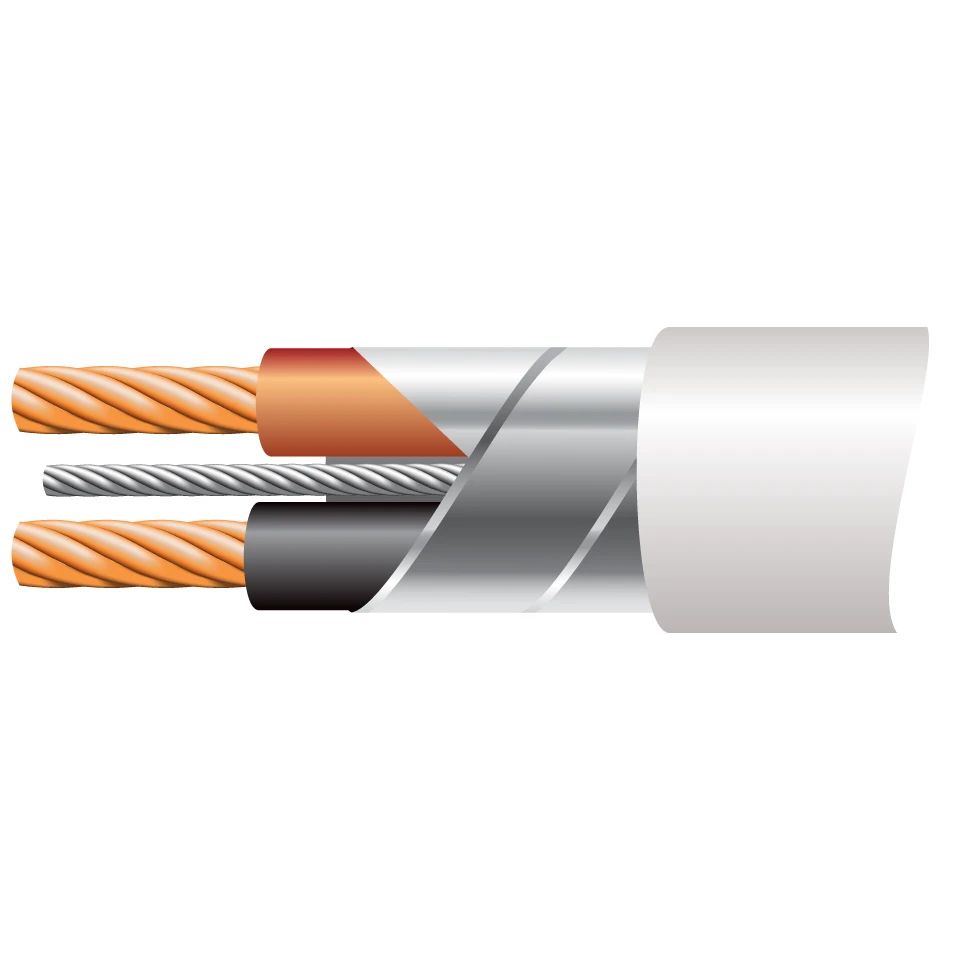

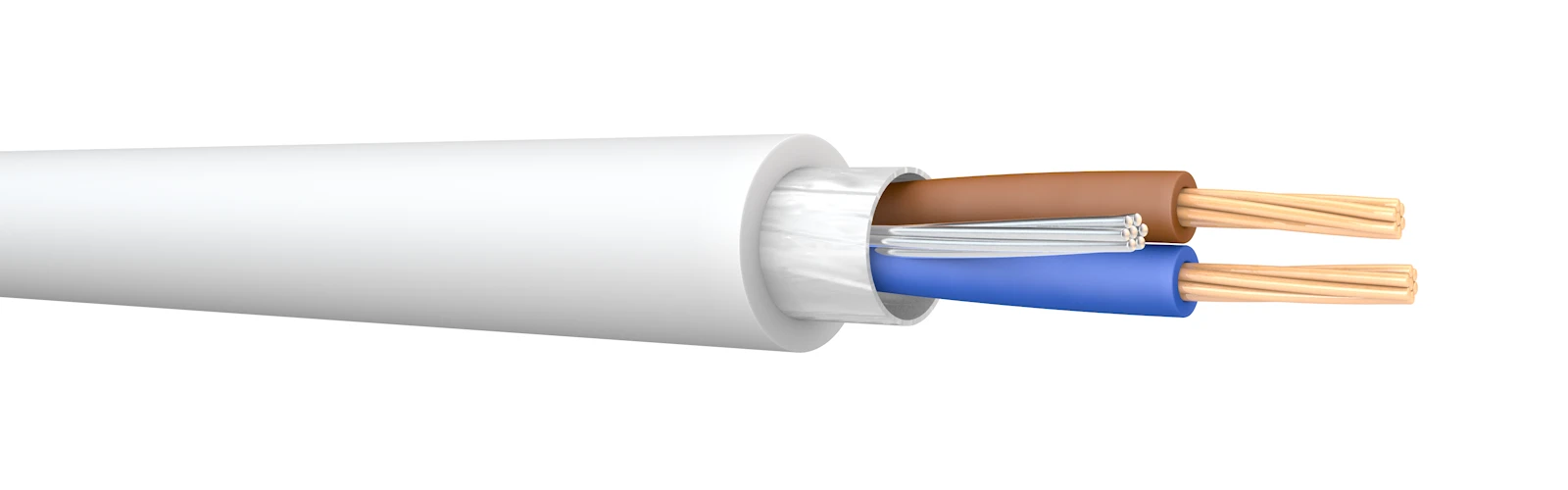

Prysmian LSXH 1.5mm² White Afumex Earthshield Cable 2-Core 100m Reel
Prysmian LSXH 1.5mm² White Afumex Earthshield Cable 2-Core 100m Reel
Prysmian LSXH 1.5mm² White Afumex Earthshield Cable 2-Core 100m Reel - Image 2
Prysmian LSXH 1.5mm² White Afumex Earthshield Cable 2-Core 100m Reel - Image 3

Prysmian LSXH 1.5mm² White Afumex Earthshield Cable 2-Core 100m Reel

£10.21 Incl. VAT

Prysmian LSX® is a Low Smoke, Zero Halogen (LSOH®) and flame retardant cable developed to address specific needs of the modern building services and systems · · · Low voltage circuits typically lighting and power distribution, in buildings. · · Suitable for clipped, surface, tray and void installation. · · Low smoke, zero halogen and flame retardant. · · Ideal for all non-emergency circuits in public buildings. · · Fully screened design provides EMC protection for signal clarity.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20175527 Categories: , , Brand: Product Code: 2500042685

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Reaction-to-fire according to EN 13501-6: Class Aca Protective barrier None Core colour Several Conductor category Class 2 = stranded Conductor material Copper Conductor surface Bare Sheath colour White Core insulation material Polyolefin Sheath material Polyolefin Outer diameter approx. 9.9 mm Core identification Colour Max. conductor temperature 70 °C Nominal voltage U0 300 V Number of cores 2 Nominal cross sectional area of conductor 1.5 mm² Conductor Diameter 1.5 mm Nominal voltage U 500 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Screen Yes Drain wire Yes · Technical Data Sheet – Click to Download
