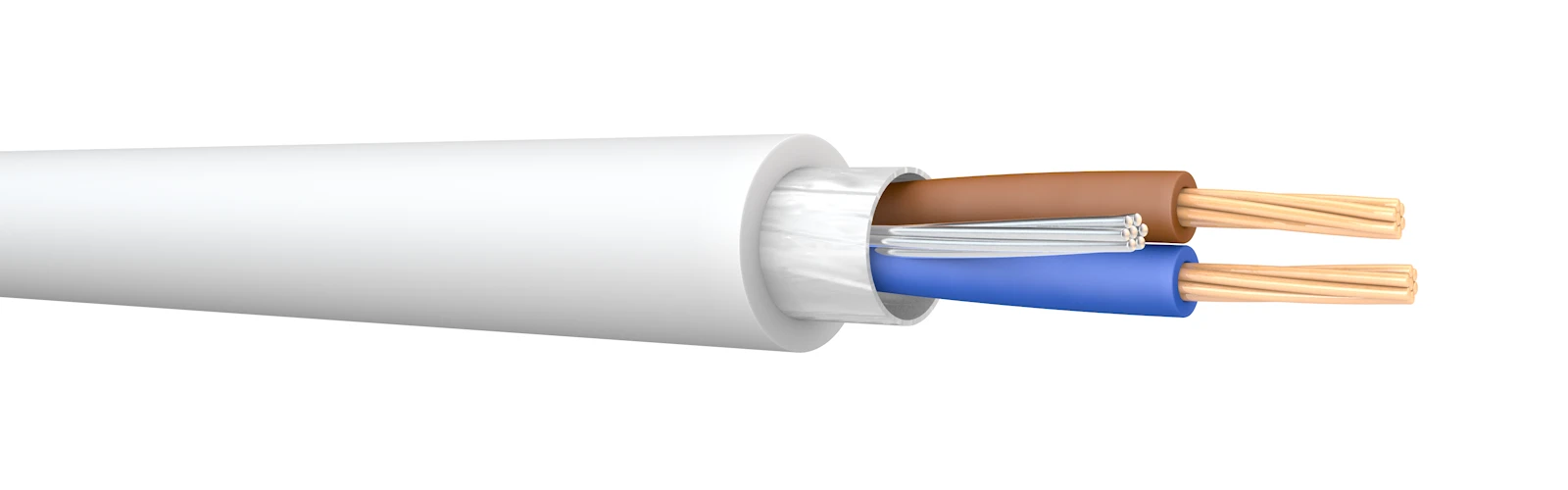

Prysmian LSXH 1.5mm² White Afumex Earthshield Cable 3-Core 100m Reel
Prysmian LSXH 1.5mm² White Afumex Earthshield Cable 3-Core 100m Reel
Prysmian LSXH 1.5mm² White Afumex Earthshield Cable 3-Core 100m Reel - Image 2
Prysmian LSXH 1.5mm² White Afumex Earthshield Cable 3-Core 100m Reel - Image 3

Prysmian LSXH 1.5mm² White Afumex Earthshield Cable 3-Core 100m Reel

Pack of 100

£1,342.44 Incl. VAT

Prysmian LSX® is a Low Smoke, Zero Halogen (LSOH®) and flame retardant cable developed to address specific needs of the modern building services and systems · · · Low voltage circuits typically lighting and power distribution, in buildings. · · Suitable for clipped, surface, tray and void installation. · · Low smoke, zero halogen and flame retardant. · · Ideal for all non-emergency circuits in public buildings. · · Fully screened design provides EMC protection for signal clarity.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20175543 Categories: , , Brand: Product Code: 2500042693

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Protective barrier None Core colour Several Reaction-to-fire according to EN 13501-6: Class Aca Conductor category Class 2 = stranded Sheath colour White Conductor material Copper Sheath material Polyolefin Conductor surface Bare Core identification Colour Core insulation material Polyolefin Conductor Diameter 1.5 mm Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U0 300 V Nominal voltage U 500 V Max. conductor temperature 70 °C Number of cores 3 Outer diameter approx. 10.2 mm Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Screen Yes Drain wire Yes · Technical Data Sheet – Click to Download
