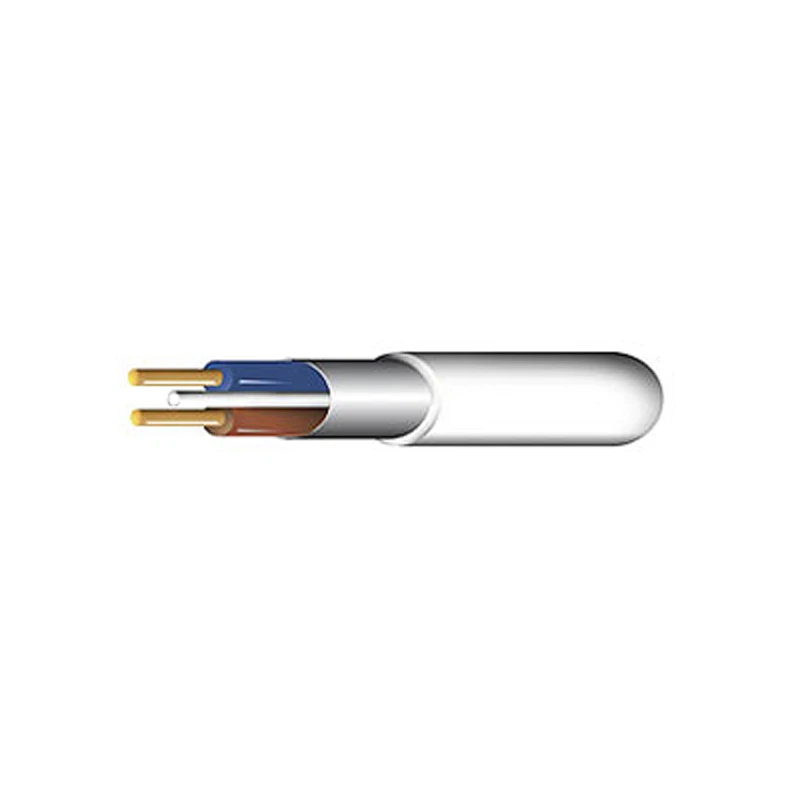

LSXH 2.5mm² White Afumex Earthshield Cable 2-Core
£476.10 Incl. VAT
Prysmian LSX® is a Low Smoke, Zero Halogen (LSOH®) and flame retardant cable developed to address specific needs of the modern building services and systems · · · Low voltage circuits typically lighting and power distribution, in buildings. · · Suitable for clipped, surface, tray and void installation. · · Low smoke, zero halogen and flame retardant. · · Ideal for all non-emergency circuits in public buildings. · · Fully screened design provides EMC protection for signal clarity. · · Number of Cores: 2 · · Low Smole Zero Halogen
700 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Core colour Several Protective barrier None Reaction-to-fire according to EN 13501-6: Class Aca Conductor material Copper Conductor category Class 2 = stranded Sheath colour White Conductor surface Bare Core identification Colour Sheath material Polyolefin Nominal cross sectional area of conductor 2.5 mm² Outer diameter approx. 10.4 mm Max. conductor temperature 70 °C Nominal voltage U0 300 V Conductor Diameter 2.5 mm Number of cores 2 Nominal voltage U 500 V Core insulation material Polyolefin Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Screen Yes Oil resistant according to IEC 60811-404 No Drain wire Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
