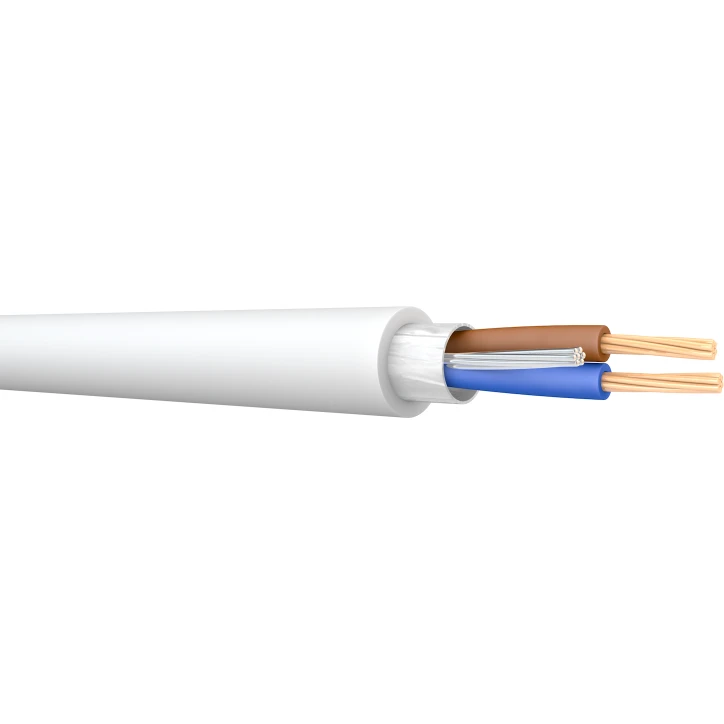

LSXH 4.0mm² White Afumex Earthshield Cable 2-Core
LSXH 4.0mm² White Afumex Earthshield Cable 2-Core
LSXH 4.0mm² White Afumex Earthshield Cable 2-Core - Image 2
LSXH 4.0mm² White Afumex Earthshield Cable 2-Core - Image 3
LSXH 4.0mm² White Afumex Earthshield Cable 2-Core - Image 4

LSXH 4.0mm² White Afumex Earthshield Cable 2-Core

£6.97 Incl. VAT

Prysmian LSX® is a Low Smoke, Zero Halogen (LSOH®) and flame retardant cable developed to address specific needs of the modern building services and systems · · · Low voltage circuits typically lighting and power distribution, in buildings. · · Suitable for clipped, surface, tray and void installation. · · Low smoke, zero halogen and flame retardant. · · Ideal for all non-emergency circuits in public buildings. · · Fully screened design provides EMC protection for signal clarity. · · Low Smole Zero Halogen

1100 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20175541 Categories: , , Brand: Part Number: 2500042691

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Several Reaction-to-fire according to EN 13501-6: Class Aca Conductor category Class 2 = stranded Protective barrier None Nominal voltage U0 300 V Number of cores 2 Sheath material Polyolefin Core insulation material Polyolefin Core identification Colour Sheath colour White Conductor surface Bare Conductor material Copper Max. conductor temperature 70 °C Outer diameter approx. 12.1 mm Conductor Diameter 4 mm Nominal voltage U 500 V Nominal cross sectional area of conductor 4 mm² Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Screen Yes Drain wire Yes Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
