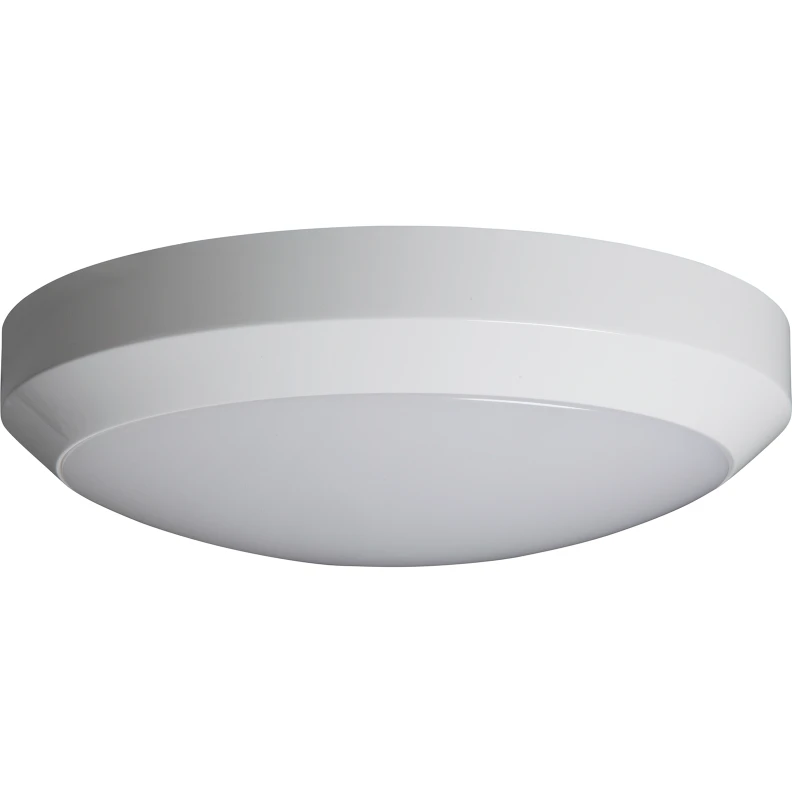

Robus Luminaire Eagle LED Surf Fitting 15W 330mm 4000K Medium Pro IP65

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Recess width – mm Conductor cross section – mm² Outer diameter 330 mm Unified Glare Rating (UGR) 25.3 Power factor 0.9 Recess height/depth – mm Number of lamps – Rated life time L70/B50 at 25 °C 50000 h Recess length – mm Maximum system power 12.7 W Recess diameter – mm Number of poles – Height/depth 91 mm Lamp power – – – W Colour temperature 4000 – 4000 K Nominal voltage 220 – 240 V Nominal current 57 – 57 mA Rated ambient temperature acc. IEC62722-2-1 -20 – 35 °C Suitable for suspended mounting No Light source included Yes With air slots No Suitable for recessed mounting No Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 No With light sensor No Suitable for surface mounting No With movement sensor No Suitable for ceiling mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for light line configuration No Control gear included Yes Suitable for emergency lighting No Dimming with push-button No Dimming manufacturer’s proprietary system No Dimming DMX No Dimming leading edge No Dimming 0-10 V No Dimming trailing edge No Dimming potentiometer (integrated) No Dimming RF No Dimming DSI No Dimming Zigbee No Dimming touch and dim No Dimming programmable No Bluetooth operated No Dimming DALI No Dimming 1-10 V No Dimming mains voltage modulation No · Technical Data Sheet – Click to Download
