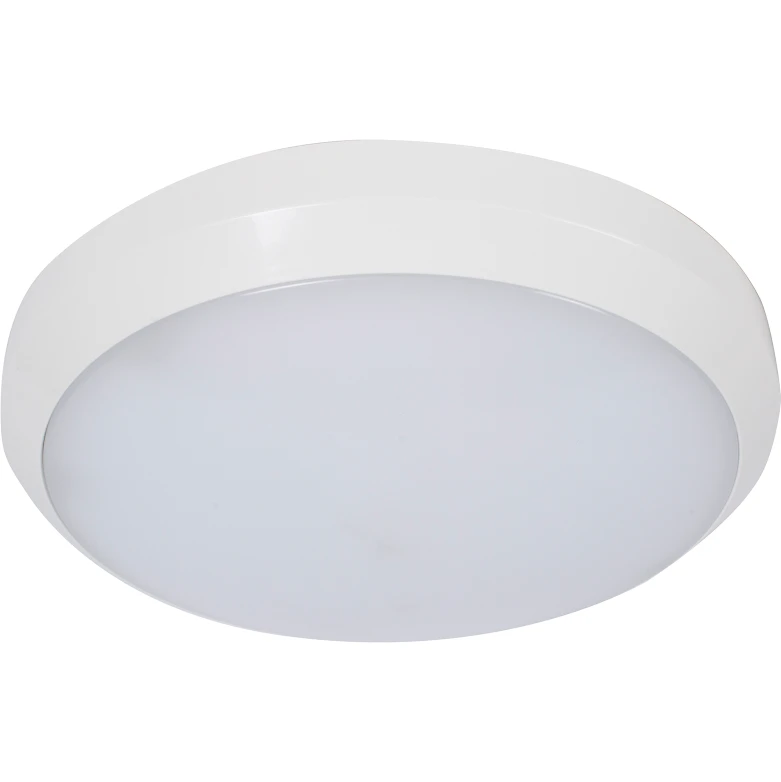

Luminaire Eagle LED Surface Fitting Large 24W 4000K Pro Diffuser

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Maximum system power 21.4 W Housing colour White Unified Glare Rating (UGR) 23.5 Rated life time L70/B50 at 25 °C 50000 h Recess height/depth – mm Power factor 0.9 Luminaire efficacy 109 lm/W Total harmonic distortion 20 Number of lamps – Number of poles – Outer diameter 420 mm Conductor cross section – mm² Recess diameter – mm Recess width – mm Rated luminous flux acc. IEC 62722-2-1 – lm Height/depth 91 mm Recess length – mm Lamp power – – – W Colour temperature 4000 – 4000 K Nominal current 97 – 97 mA Nominal voltage 220 – 240 V Rated ambient temperature acc. IEC62722-2-1 -20 – 35 °C Dimming depending on control gear No Dimming 1-10 V No Dimming programmable No Dimming sine wave reduction No Dimming leading edge No Dimming mains voltage modulation No Dimming touch and dim No Dimming potentiometer (integrated) No Dimming manufacturer’s proprietary system No Light source included Yes Suitable for recessed mounting No Suitable for light line configuration No Suitable for emergency lighting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 No Dimming RF No Dimming DSI No Dimming Zigbee No Dimming 0-10 V No Dimming with push-button No Dimming LineSwitch No Dimming trailing edge No Dimming DALI No Dimming DMX No Bluetooth operated No No dimming function Yes With movement sensor No Suitable for suspended mounting No With light sensor No Suitable for wall mounting Yes Control gear included Yes Suitable for surface mounting No With air slots No Suitable for ceiling mounting No · Technical Data Sheet – Click to Download
