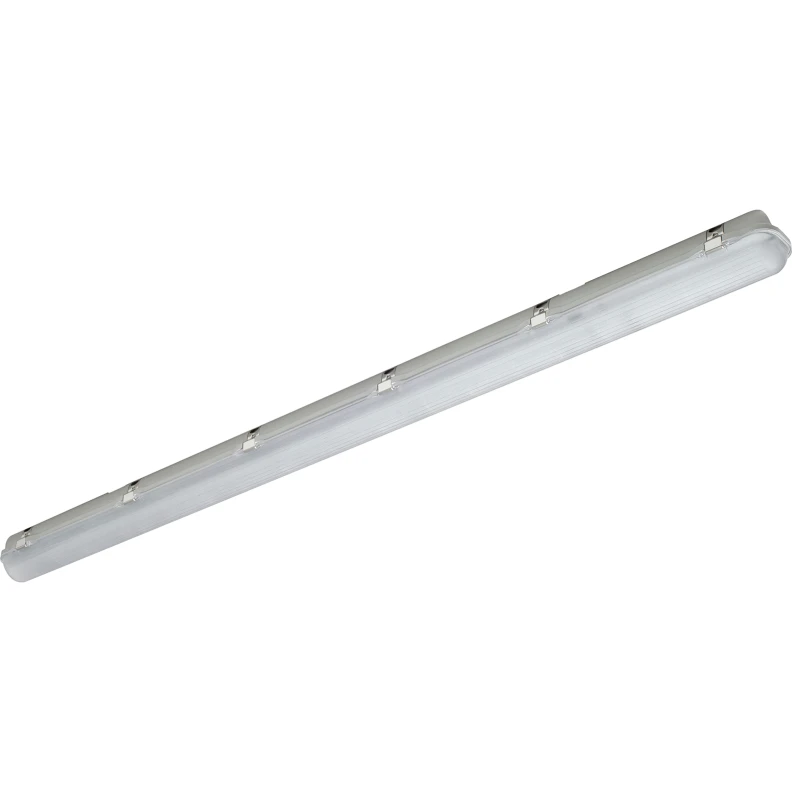

Luminaire LED 5000K Anticorrosive IP65 1 x 40W 1500mm Frosted Diffuser

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Width 93 mm Outer diameter – mm Power factor 0.97 Maximum system power 39.6 W Total harmonic distortion 16.3 Unified Glare Rating (UGR) 24 Conductor cross section – mm² Number of lamps – Rated luminous flux acc. IEC 62722-2-1 – lm Luminaire efficacy 113 lm/W Rated life time L70/B50 at 25 °C 50000 h Recess diameter – mm Number of poles – Recess width – mm Height/depth 97 mm Recess height/depth – mm Recess length – mm Length 1560 mm Lamp power – – – W Nominal voltage 220 – 240 V Nominal current 180 – 180 mA Colour temperature 5000 – 5000 K Rated ambient temperature acc. IEC62722-2-1 -25 – 40 °C Light source included Yes Control gear included Yes Suitable for wall mounting Yes Suitable for recessed mounting No With light sensor No Suitable for light line configuration No With movement sensor No Suitable for suspended mounting Yes Suitable for emergency lighting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for ceiling mounting No Fit for workplace acc. EN 12464-1 No Luminaire may be covered with thermally insulating material No With air slots No Suitable for surface mounting No Dimming DALI No Bluetooth operated No Dimming RF No Dimming mains voltage modulation No Dimming 1-10 V No Dimming depending on control gear No Dimming leading edge No Dimming LineSwitch No Dimming touch and dim No No dimming function Yes Dimming potentiometer (integrated) No Dimming sine wave reduction No Dimming manufacturer’s proprietary system No Dimming with push-button No Dimming programmable No Dimming DMX No Dimming DSI No Dimming 0-10 V No Dimming trailing edge No Dimming Zigbee No · Technical Data Sheet – Click to Download
