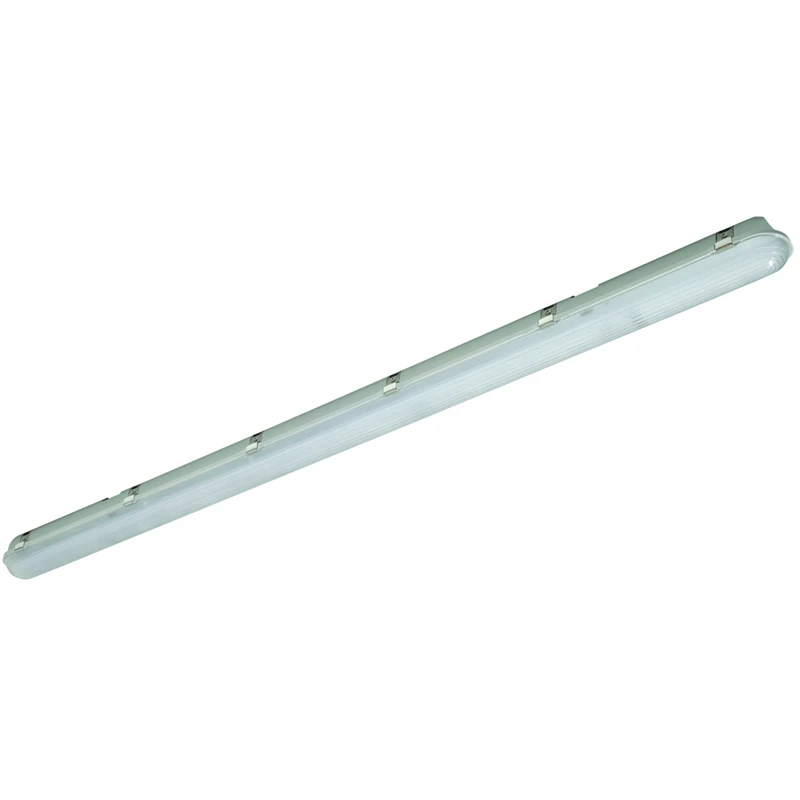

Luminaire LED 5000K Anticorrosive IP65 1 x 40W 1500mm Frosted Diffuser

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Conductor cross section – mm² Width 85 mm Outer diameter – mm Number of poles – Recess diameter – mm Length 1530 mm Power factor 0.97 Unified Glare Rating (UGR) 24 Total harmonic distortion 16.3 Rated luminous flux acc. IEC 62722-2-1 – lm Recess height/depth – mm Maximum system power 40.2 W Rated life time L70/B50 at 25 °C 50000 h Recess width – mm Height/depth 77 mm Luminaire efficacy 111 lm/W Number of lamps – Nominal voltage 220 – 240 V Dimming depending on control gear No Suitable for suspended mounting Yes Rated ambient temperature acc. IEC62722-2-1 -25 – 40 °C Colour temperature 5000 – 5000 K Nominal current 170 – 170 mA Lamp power – – – W Recess length – mm Suitable for wall mounting Yes Suitable for emergency lighting No With movement sensor No With light sensor No Suitable for recessed mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Light source included Yes Control gear included Yes Suitable for surface mounting No Dimming DSI No Dimming Zigbee No Dimming 0-10 V No No dimming function Yes Dimming RF No With air slots No Luminaire may be covered with thermally insulating material No Suitable for light line configuration No Dimming mains voltage modulation No Dimming touch and dim No Dimming sine wave reduction No Dimming manufacturer’s proprietary system No Dimming with push-button No Fit for workplace acc. EN 12464-1 No Suitable for ceiling mounting No Dimming leading edge No Dimming DMX No Dimming 1-10 V No Dimming DALI No Dimming potentiometer (integrated) No Dimming programmable No Bluetooth operated No Dimming trailing edge No Dimming LineSwitch No · Technical Data Sheet – Click to Download
