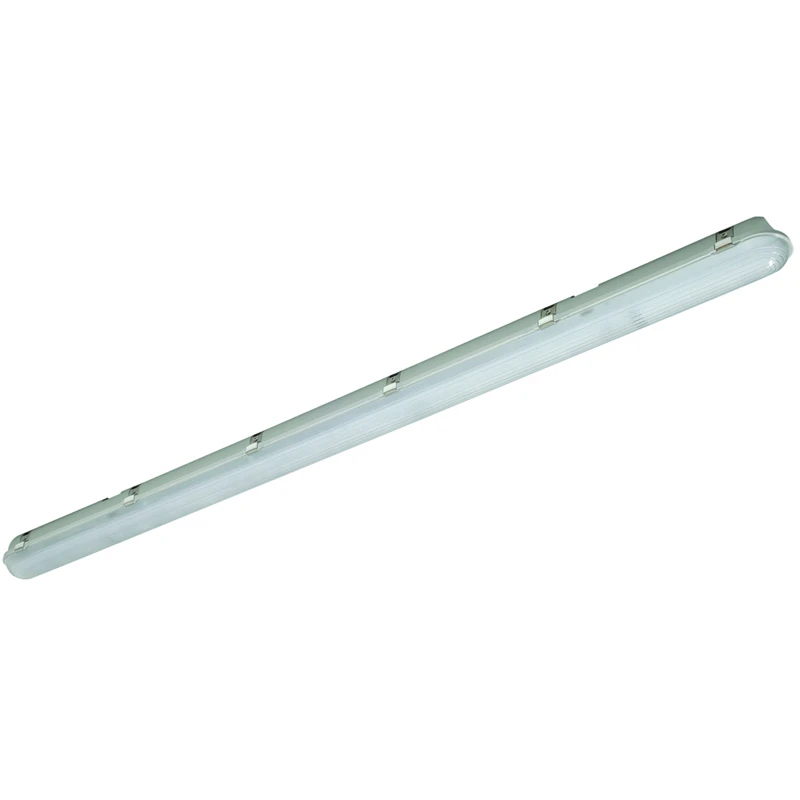

Luminaire LED 5000K Anticorrosive IP65 2 x 40W 1500mm Frosted Diffuser

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Outer diameter – mm Width 103 mm Conductor cross section – mm² Number of poles – Recess diameter – mm Length 1530 mm Recess length – mm Rated luminous flux acc. IEC 62722-2-1 – lm Luminaire efficacy 106 lm/W Unified Glare Rating (UGR) 25.1 Total harmonic distortion 16.3 Rated life time L70/B50 at 25 °C 50000 h Power factor 0.97 Recess width – mm Number of lamps – Recess height/depth – mm Height/depth 77 mm Colour temperature 5000 – 5000 K With movement sensor No Suitable for suspended mounting Yes Rated ambient temperature acc. IEC62722-2-1 -25 – 40 °C Nominal voltage 220 – 240 V Nominal current 350 – 350 mA Lamp power – – – W Maximum system power 77.9 W With light sensor No Dimming depending on control gear No Suitable for emergency lighting No Suitable for recessed mounting No Suitable for wall mounting Yes Control gear included Yes Light source included Yes With air slots No Luminaire may be covered with thermally insulating material No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Fit for workplace acc. EN 12464-1 No Suitable for ceiling mounting No Suitable for light line configuration No Suitable for surface mounting No Bluetooth operated No Dimming DALI No Dimming manufacturer’s proprietary system No Dimming 1-10 V No Dimming 0-10 V No Dimming DSI No Dimming DMX No Dimming RF No Dimming trailing edge No Dimming LineSwitch No Dimming Zigbee No Dimming touch and dim No Dimming potentiometer (integrated) No Dimming mains voltage modulation No Dimming programmable No Dimming with push-button No Dimming sine wave reduction No Dimming leading edge No No dimming function Yes · Technical Data Sheet – Click to Download
