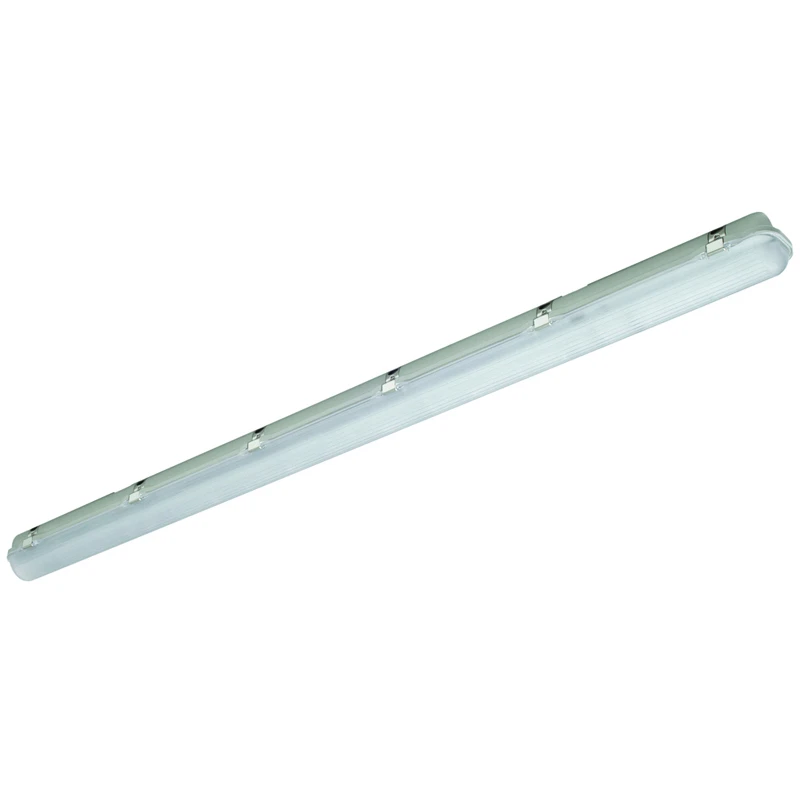

Luminaire LED 5000K Emergency Anticorrosive IP65 2 x 40W 1500mm Frosted Diffuser

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Conductor cross section – mm² Width 140 mm Outer diameter – mm Height/depth 97 mm Recess width – mm Number of poles – Recess diameter – mm Length 1560 mm Unified Glare Rating (UGR) 24.5 Total harmonic distortion 16.3 Rated life time L70/B50 at 25 °C 50000 h Number of lamps – Luminaire efficacy 97 lm/W Power factor 0.97 Rated luminous flux acc. IEC 62722-2-1 – lm Maximum system power 82.5 W Recess length – mm Recess height/depth – mm Lamp power – – – W Nominal current 450 – 450 mA Colour temperature 5000 – 5000 K Nominal voltage 220 – 240 V Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No With air slots No Control gear included Yes With light sensor No With movement sensor No Suitable for suspended mounting Yes Rated ambient temperature acc. IEC62722-2-1 -10 – 40 °C Light source included Yes Suitable for light line configuration No Suitable for surface mounting No Suitable for emergency lighting No Suitable for recessed mounting No Suitable for wall mounting Yes Suitable for ceiling mounting No Bluetooth operated No Dimming DMX No Dimming trailing edge No Dimming DALI No Dimming 0-10 V No Dimming DSI No Fit for workplace acc. EN 12464-1 No Luminaire may be covered with thermally insulating material No Dimming RF No Dimming with push-button No Dimming mains voltage modulation No Dimming leading edge No Dimming Zigbee No Dimming sine wave reduction No Dimming manufacturer’s proprietary system No No dimming function Yes Dimming LineSwitch No Dimming programmable No Dimming depending on control gear No Dimming 1-10 V No Dimming touch and dim No Dimming potentiometer (integrated) No · Technical Data Sheet – Click to Download
