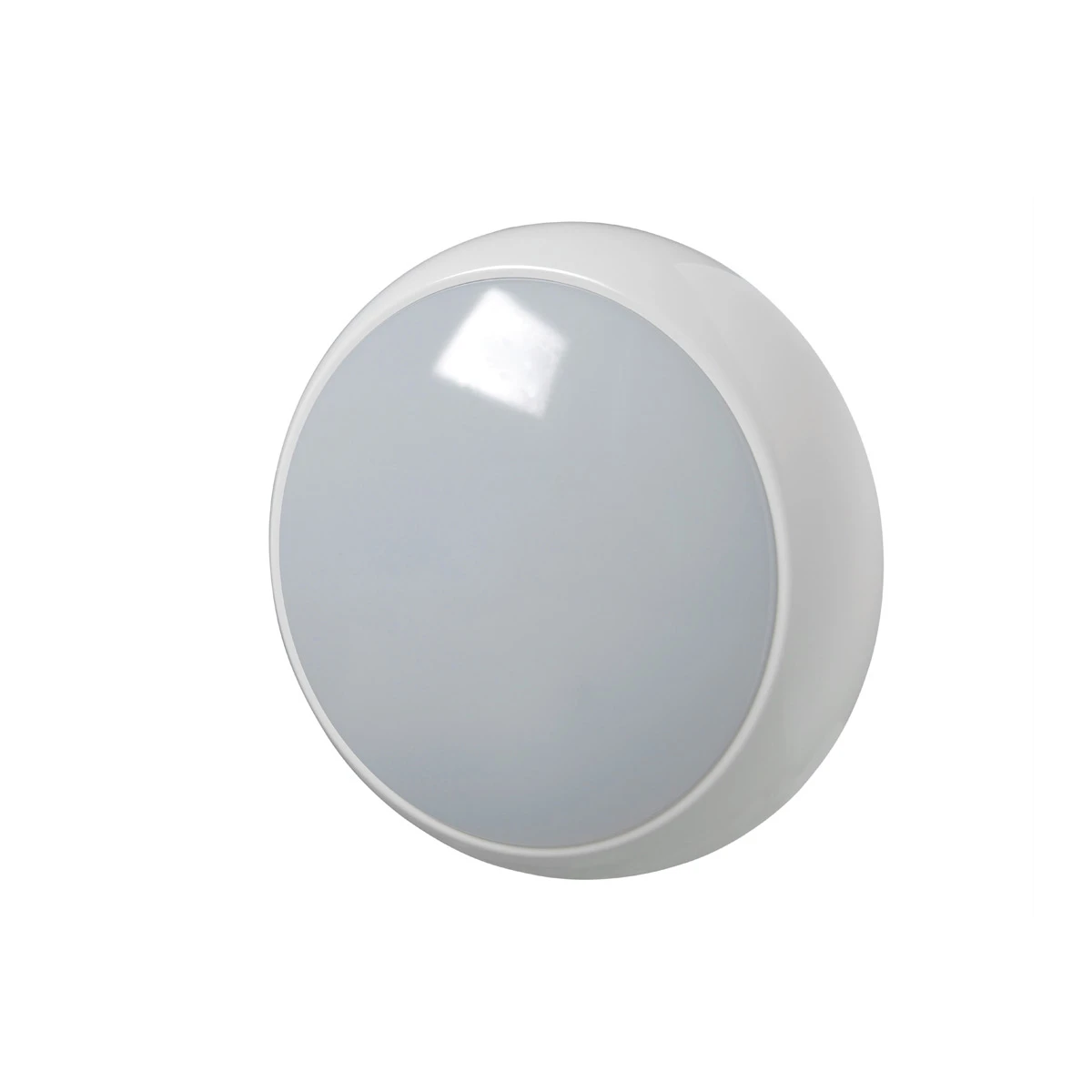

Luminaire LED Golf Standard Pro-Diffuser 7.5W

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Housing colour White Housing material Plastic Outer diameter 272 mm Conductor cross section – mm² Number of poles – Height/depth 90 mm Recess width – mm Recess diameter – mm Rated luminous flux acc. IEC 62722-2-1 – lm Power factor 0.9 Recess height/depth – mm Number of lamps – Maximum system power 7 W Recess length – mm Rated life time L70/B50 at 25 °C 50000 h Total harmonic distortion 51.6 Unified Glare Rating (UGR) 25.3 Luminaire efficacy 91 lm/W Lamp power – – – W Nominal voltage 220 – 240 V Colour temperature 4000 – 4000 K Nominal current 34 – 34 mA Rated ambient temperature acc. IEC62722-2-1 -20 – 35 °C Suitable for suspended mounting No With movement sensor No With light sensor No Luminaire may be covered with thermally insulating material No Dimming touch and dim No No dimming function Yes Suitable for light line configuration No Suitable for wall mounting Yes Light source included Yes Suitable for recessed mounting No Suitable for surface mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for emergency lighting No Control gear included Yes Fit for workplace acc. EN 12464-1 No Suitable for ceiling mounting No With air slots No Dimming 1-10 V No Dimming LineSwitch No Dimming mains voltage modulation No Dimming sine wave reduction No Dimming with push-button No Dimming DMX No Dimming potentiometer (integrated) No Dimming programmable No Dimming DALI No Bluetooth operated No Dimming manufacturer’s proprietary system No Dimming leading edge No Dimming DSI No Dimming Zigbee No Dimming trailing edge No Dimming RF No Dimming 0-10 V No Dimming depending on control gear No · Technical Data Sheet – Click to Download
