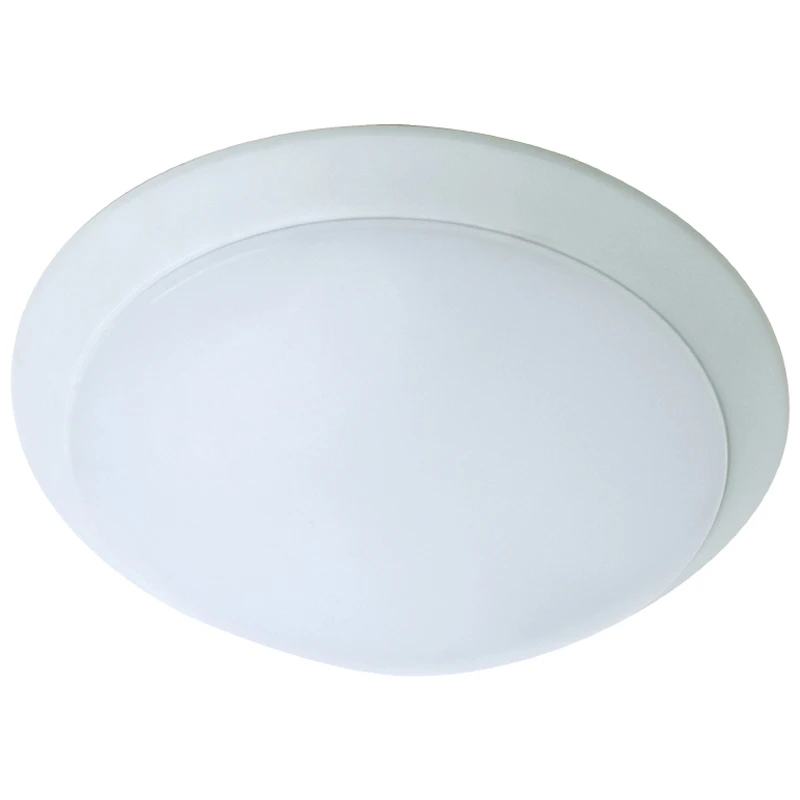

Luminaire LED Oyster Surface 4000K 24W White IP44

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Number of poles – Rated luminous flux acc. IEC 62722-2-1 – lm Maximum system power 26.2 W Housing colour White Power factor 0.9 Number of lamps – Rated life time L70/B50 at 25 °C 30000 h Recess height/depth – mm Recess length – mm Luminaire efficacy 65 lm/W Total harmonic distortion 19.6 Conductor cross section – mm² Colour temperature 4000 – 4000 K Lamp power – – – W Outer diameter 395 mm Recess diameter – mm Recess width – mm Height/depth 105 mm Unified Glare Rating (UGR) 24.4 Nominal current 101 – 101 mA Nominal voltage 220 – 240 V Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Suitable for suspended mounting No Light source included Yes Luminaire may be covered with thermally insulating material No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for ceiling mounting No Control gear included Yes Suitable for light line configuration No Dimming with push-button No Suitable for surface mounting No With movement sensor No Fit for workplace acc. EN 12464-1 No Suitable for wall mounting Yes With light sensor No With air slots No Dimming RF No Dimming Zigbee No Dimming 0-10 V No Dimming DMX No Dimming DSI No Suitable for recessed mounting No Suitable for emergency lighting No Dimming DALI No Dimming touch and dim No Dimming 1-10 V No Dimming LineSwitch No Dimming trailing edge No No dimming function Yes Bluetooth operated No Dimming depending on control gear No Dimming mains voltage modulation No Dimming potentiometer (integrated) No Dimming manufacturer’s proprietary system No Dimming sine wave reduction No Dimming leading edge No Dimming programmable No · Technical Data Sheet – Click to Download
