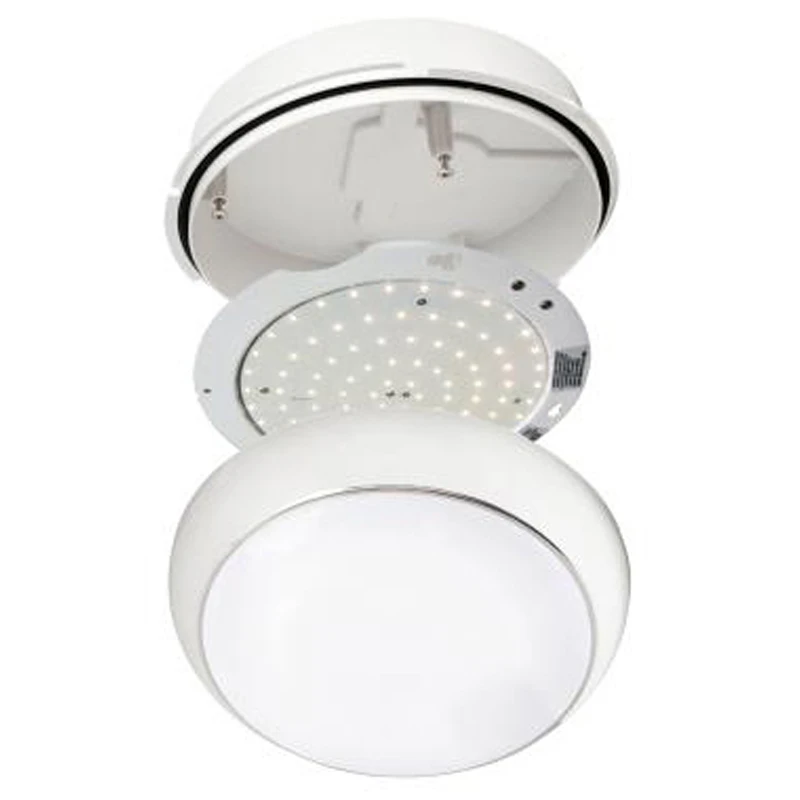

Luminaire LED Smd Golf Emergency 10W 800lm 330 x 118mm 4000K Microwave Sensor IP65

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Housing colour White Outer diameter 330 mm Housing material Plastic Power factor 0.9 Total harmonic distortion 51.6 Rated life time L70/B50 at 25 °C 50000 h Unified Glare Rating (UGR) 20.3 Luminaire efficacy 82 lm/W Maximum system power 10.2 W Recess height/depth – mm Conductor cross section – mm² Height/depth 118 mm Number of poles – Number of lamps – Recess diameter – mm Recess length – mm Recess width – mm Rated luminous flux acc. IEC 62722-2-1 – lm Suitable for suspended mounting No With light sensor No With movement sensor Yes Rated ambient temperature acc. IEC62722-2-1 -10 – 35 °C Nominal current 60 – 60 mA Colour temperature 4000 – 4000 K Nominal voltage 220 – 240 V Lamp power – – – W Suitable for light line configuration No With air slots No Light source included Yes Suitable for recessed mounting No Luminaire may be covered with thermally insulating material No Suitable for emergency lighting No Suitable for wall mounting Yes Control gear included Yes Suitable for ceiling mounting No Fit for workplace acc. EN 12464-1 No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Dimming DALI No Suitable for surface mounting No Bluetooth operated No Dimming trailing edge No Dimming potentiometer (integrated) No Dimming DSI No Dimming DMX No Dimming RF No Dimming Zigbee No Dimming depending on control gear No Dimming LineSwitch No No dimming function Yes Dimming 0-10 V No Dimming touch and dim No Dimming programmable No Dimming 1-10 V No Dimming mains voltage modulation No Dimming with push-button No Dimming sine wave reduction No Dimming manufacturer’s proprietary system No Dimming leading edge No · Technical Data Sheet – Click to Download
