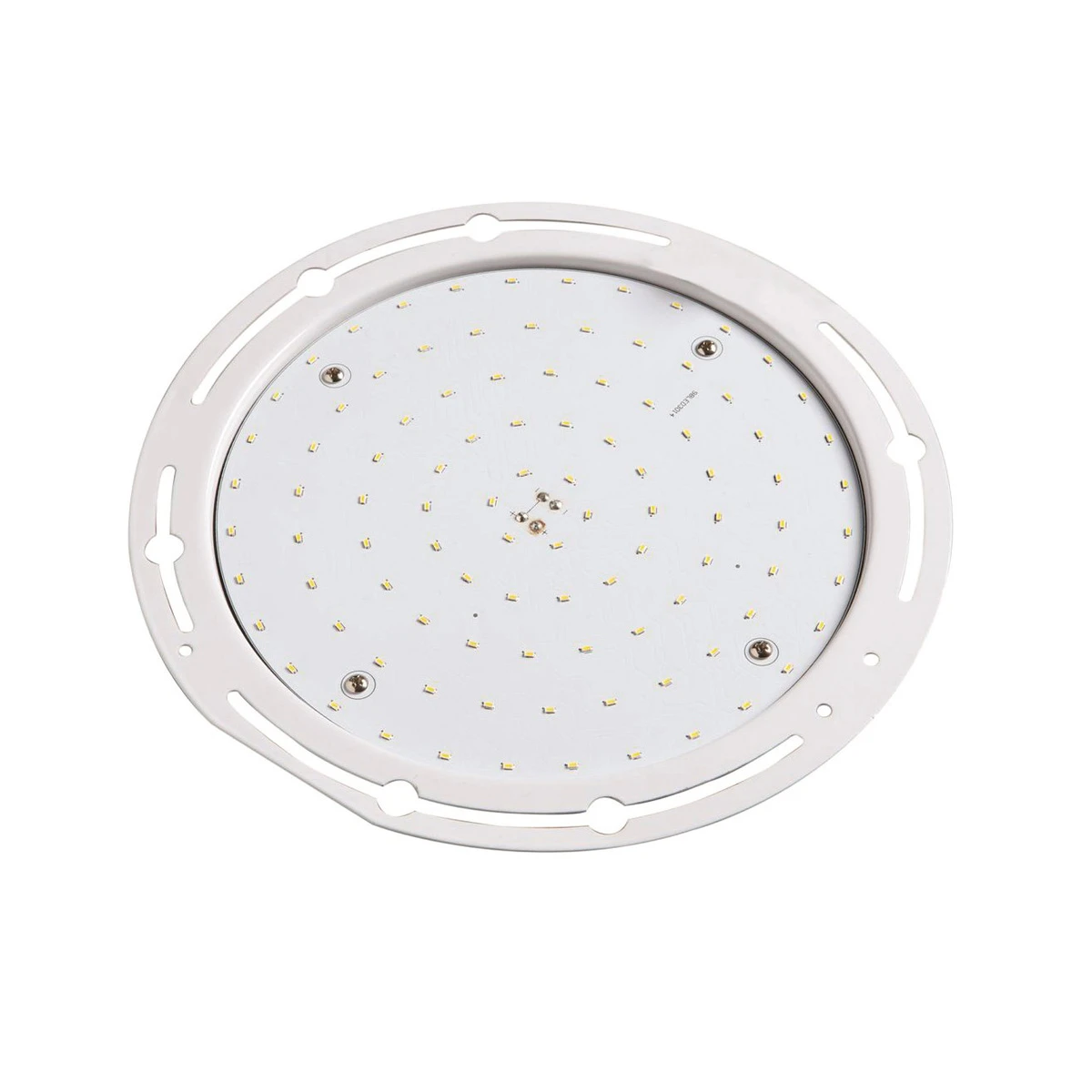

Luminaire LED Smd Golf Retro-Fit Emergency 10W

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Rated life time L70/B50 at 25 °C 50000 h Power factor 0.9 Luminaire efficacy 105 lm/W Unified Glare Rating (UGR) 25.5 Conductor cross section – mm² Height/depth 35 mm Outer diameter 254 mm Number of poles – Recess width – mm Number of lamps – Recess diameter – mm Rated luminous flux acc. IEC 62722-2-1 – lm Recess length – mm Total harmonic distortion 55.5 Maximum system power 10 W Recess height/depth – mm Lamp power – – – W Colour temperature 4000 – 4000 K Nominal voltage 220 – 240 V Rated ambient temperature acc. IEC62722-2-1 -10 – 35 °C With movement sensor No Suitable for suspended mounting No Light source included Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No With air slots No Suitable for surface mounting No Fit for workplace acc. EN 12464-1 No Suitable for ceiling mounting No Luminaire may be covered with thermally insulating material No With light sensor No Control gear included Yes Suitable for recessed mounting No Dimming leading edge No Suitable for wall mounting Yes Suitable for light line configuration No Suitable for emergency lighting No Dimming DALI No Dimming DMX No Dimming 1-10 V No No dimming function Yes Dimming touch and dim No Dimming sine wave reduction No Dimming with push-button No Dimming 0-10 V No Dimming DSI No Dimming manufacturer’s proprietary system No Dimming depending on control gear No Bluetooth operated No Dimming LineSwitch No Dimming Zigbee No Dimming RF No Dimming trailing edge No Dimming programmable No Dimming mains voltage modulation No Dimming potentiometer (integrated) No · Technical Data Sheet – Click to Download
