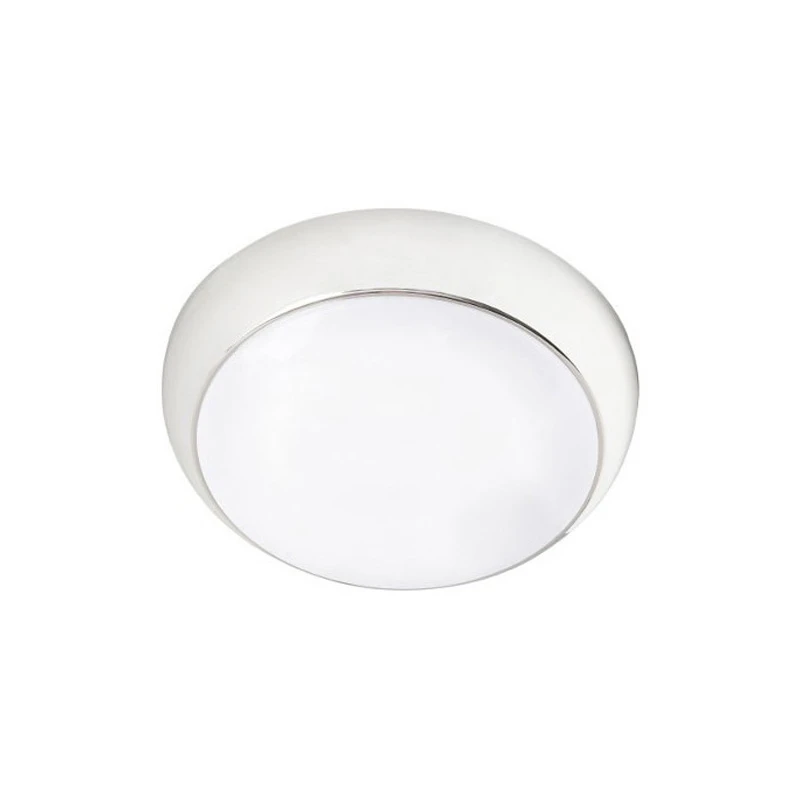

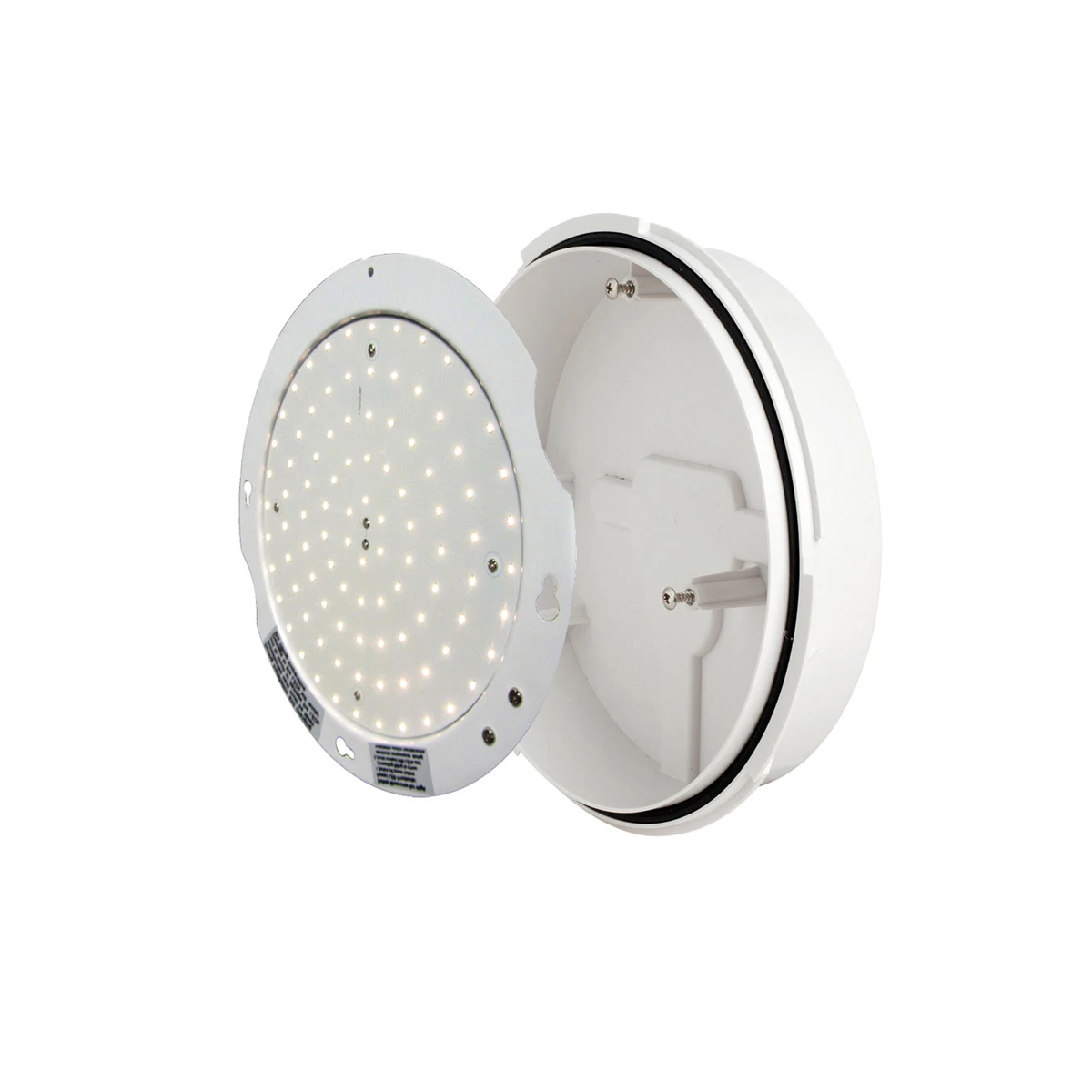

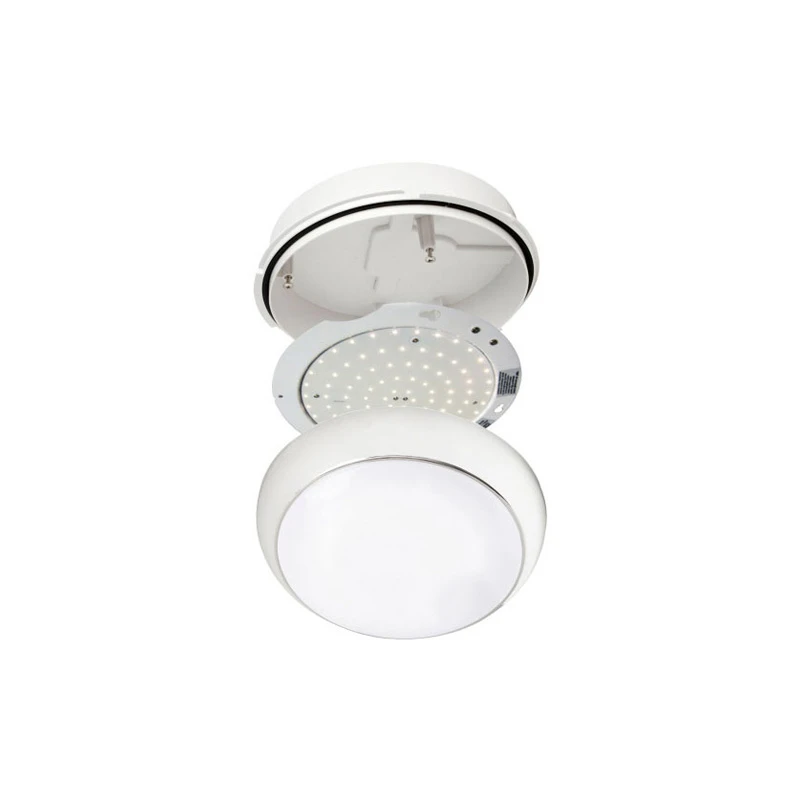

Luminaire LED SMD Surface White Trim IP65 10W 4000K

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Housing colour White Housing material Plastic Height/depth 118 mm Outer diameter 330 mm Recess width – mm Rated life time L70/B50 at 25 °C 50000 h Power factor 0.9 Luminaire efficacy 82 lm/W Unified Glare Rating (UGR) 25.5 Conductor cross section – mm² Recess height/depth – mm Number of lamps – Maximum system power 10.6 W Rated luminous flux acc. IEC 62722-2-1 – lm Recess diameter – mm Number of poles – Total harmonic distortion 55.5 Recess length – mm Lamp power – – – W Colour temperature 4000 – 4000 K Nominal voltage 220 – 240 V Nominal current 53 – 53 mA Rated ambient temperature acc. IEC62722-2-1 -20 – 35 °C With light sensor No Suitable for ceiling mounting No Suitable for surface mounting No Suitable for recessed mounting No With air slots No Suitable for light line configuration No Fit for workplace acc. EN 12464-1 No Light source included Yes Suitable for suspended mounting No With movement sensor No Control gear included Yes Luminaire may be covered with thermally insulating material No Suitable for wall mounting Yes Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for emergency lighting No Dimming with push-button No Dimming sine wave reduction No Dimming DMX No Dimming manufacturer’s proprietary system No Dimming mains voltage modulation No Dimming depending on control gear No Dimming RF No Dimming trailing edge No Dimming Zigbee No Dimming DSI No Dimming programmable No Dimming leading edge No Dimming touch and dim No Dimming 0-10 V No Dimming DALI No No dimming function Yes Bluetooth operated No Dimming LineSwitch No Dimming 1-10 V No Dimming potentiometer (integrated) No · Technical Data Sheet – Click to Download
