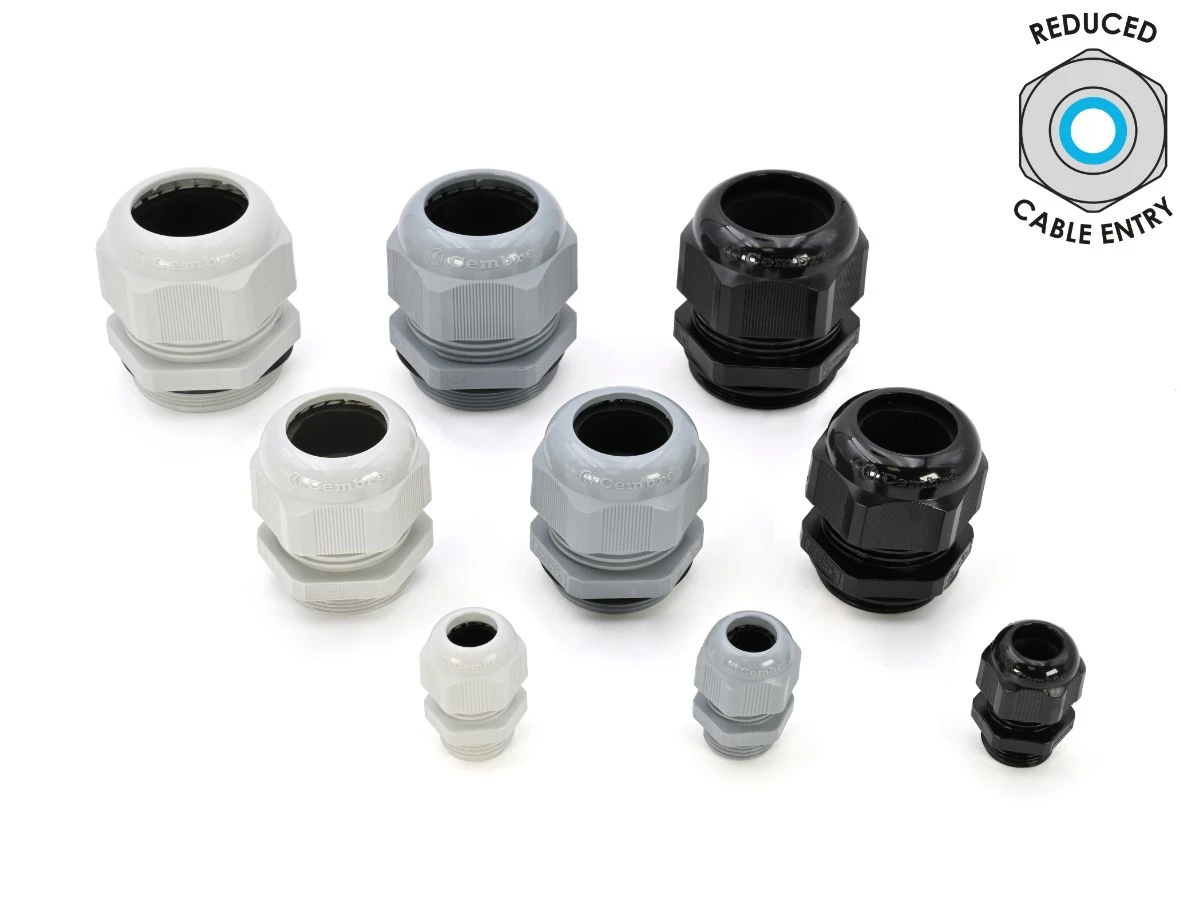

Cembre M16X1.5 Polyamide PA6.6 Reduced Cable Entry Cable Gland Light Grey

Technical Specifications  Technical Specifications Cable gland Colour Grey For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Degree of protection (IP rating) IP68 Material Plastic Model Straight Thread type Metric Type of sealing Sealing ring Material qualifier Polyamide (PA) Surface protection Untreated Pitch thread 1.5 mm Thread length 8 mm Nominal thread size metric/PG 16 Spanner width 19 mm Hexagon angular dimension 19 mm RAL number 7035 Suitable for cable outer diameter 3 – 7 mm Working temperature -40 – 100 °C Halogen free No Bend radius protection/trumpet flare No Screened No Shock resistant No Explosion-tested version No Locknut included No EMC-version No With strain relief Yes Glass fibre reinforced No Separable (split) screw gland No Flat cable sealing No Multi cable sealing No For armoured cable No Snapping in opening No · Technical Data Sheet – Click to Download
