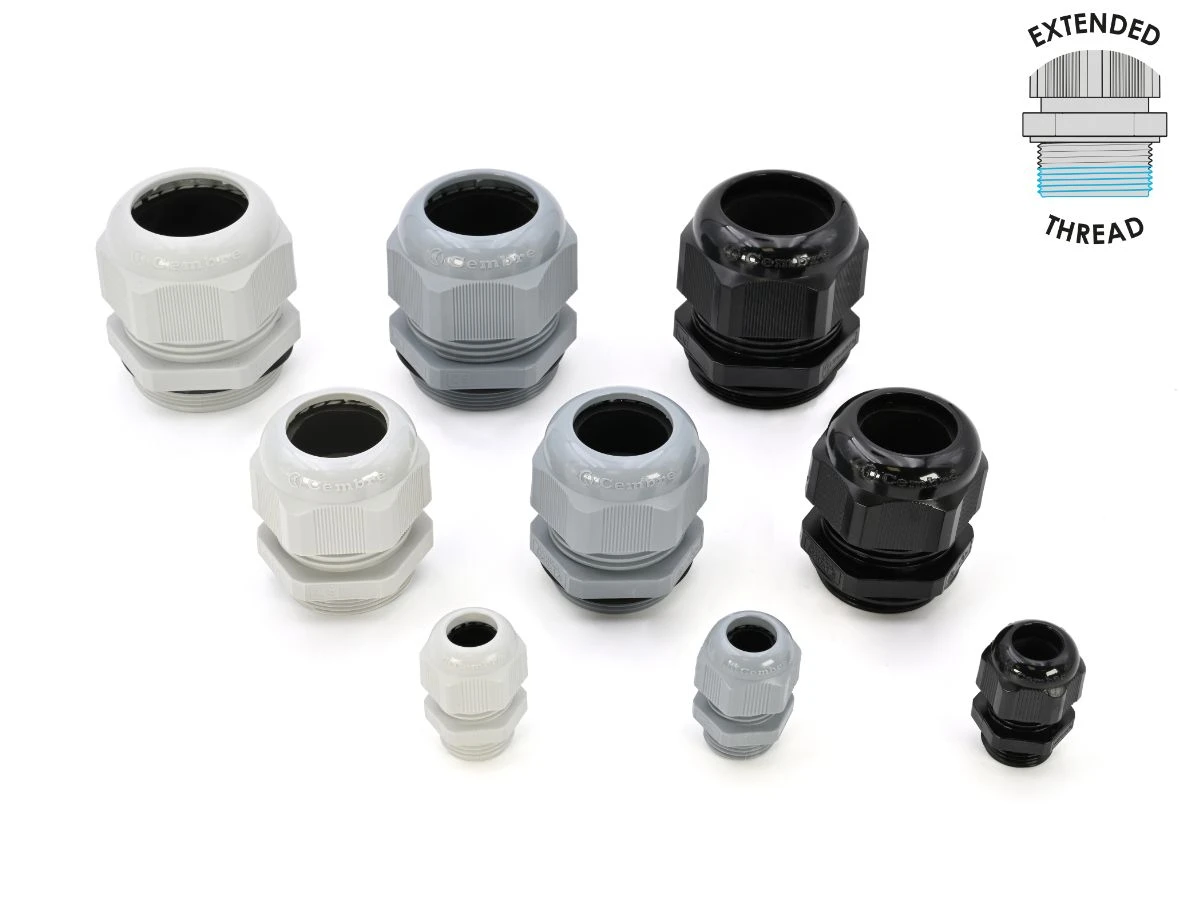

Cembre M63X1.5 Polyamide PA6.6 Extended Thread Cable Gland Black
Cembre M63X1.5 Polyamide PA6.6 Extended Thread Cable Gland Black
Cembre M63X1.5 Polyamide PA6.6 Extended Thread Cable Gland Black - Image 2
Cembre M63X1.5 Polyamide PA6.6 Extended Thread Cable Gland Black - Image 3

Cembre M63X1.5 Polyamide PA6.6 Extended Thread Cable Gland Black

£19.19 Incl. VAT

M63x1.5 Polyamide PA6.6 Extended Thread Cable Gland black · · · Polyamide PA6.6 Body · · Self-extingushing Class V2 (UL 94) · · -20°C to +90°C Temperature Range · · IP68 Protection Class · · Metric Thread M 1.5 · · RAL 9005 Black · · CE Marking

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1901.M63N Categories: , , Brand: Product Code: 1051115874

Description

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone dust None For ATEX classification, Ex-zone gas None Material Plastic Degree of protection (IP rating) IP68 Thread type Metric Model Straight Type of sealing Sealing ring Colour Black RAL number 9005 Material qualifier Polyamide (PA) Nominal thread size metric/PG 63 Spanner width 66 mm Hexagon angular dimension 66 mm Pitch thread 1.5 mm Thread length 18 mm Working temperature -40 – 100 °C Suitable for cable outer diameter 34 – 45 mm Glass fibre reinforced No Explosion-tested version No EMC-version No Bend radius protection/trumpet flare No Multi cable sealing No Separable (split) screw gland No Locknut included No Shock resistant Yes With strain relief Yes Screened No Flat cable sealing No For armoured cable No Snapping in opening No Halogen free No · Technical Data Sheet – Click to Download
