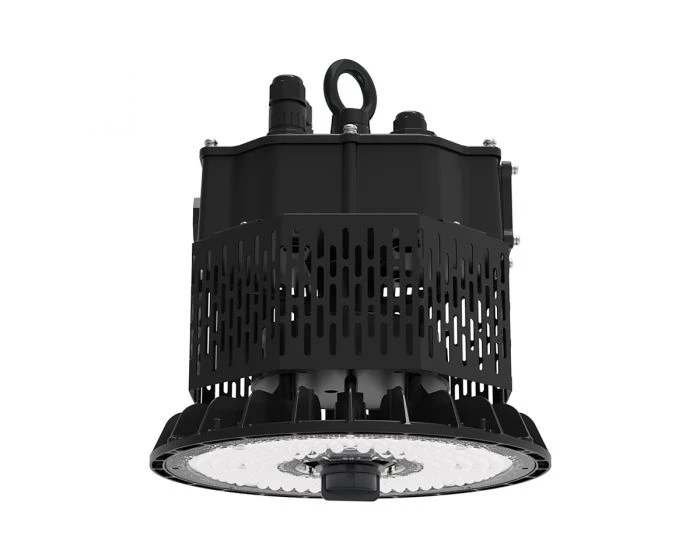

Matt Black Emergency 150W Ip65 24000Lm 4000K High Bay Luminaire (Replaces 250W Or 4X49W T5)

Matt Black Emergency 150W Ip65 24000Lm 4000K High Bay Luminaire (Replaces 250W Or 4X49W T5)

£227.75 Incl. VAT

A high-performance, IK10 and IP65 rated circular LED luminaire designed for high and low bay applications. Available in four lumen outputs, ranging from 16,000lm up to 38,000lm and 0-10V dimmable, the Area Bay offers energy efficient 4000K lighting, to cover a height range from 8-16 metres. The light emitted by each LED chip is perfectly refracted through a dedicated lens, ensuring optimal, controlled lighting at 110 degree beam angle, across a broad area. This effectively lights large spaces with fewer luminaires required. At 4000k and >80Ra, each unit radiates a bright and colour enriching light that helps productivity when picking stock within warehouses, quality control after manufacturing and despatch of production facilities. Efficiency is no good without good quality optical control and when used as part of a designed lighting scheme, our 160 lm/W Area High Bay offers low running costs for large area lighting projects.Engineered from corrosion resistant aluminium alloy, the low profile, perfectly balanced luminaire is incredibly lightweight and takes just minutes to instal by a single person.At a maximum weight of 2.28kg (standard) and 3.9kg (Emergency), the unit can be held in one hand, whilst attaching the unit to the single source hanging fixture, with the other.For light only when required, there are a range of easy fit, control options. Choose from PIR, microwave, daylight, DALI-2 and wireless options. Simply plug the unit in the centre of the light fixture and you are good to go in seconds, with no complex rewiring, or counterbalances required. For large installations, with multiple luminaires, the remote control features a bulk upload feature. This allows multiple lights to be programmed in one go. And, if for any reason your floor layout changes, our sensors are interchangeable, making it easy to re-apply your lighting control.A High Bay is a long term 10-to-20-year investment so the Area Bay has not only been engineered to last but also designed to quickly accommodate upgrades and replacement parts when required. The driver is repairable/upgradeable and for Emergency models, the 2yr life Emergency battery, is quickly accessible making it simple to replace when the time comes.With a 50,000 LED lifetime, and a 5 years warranty and 2 years on site, and low running costs, you can rest assured that the Area Bay is a smart lighting investment. · · · High efficacy of 160lm/W · · Very light weight for easy installation · · High performance dedicated lens for each LED provides efficient optical control · · Choice of PIR, microwave, daylight, DALI-2 and wireless control options saves energy and takes just seconds to fit, just plug-in to the centre of the high bay · · Choice of PIR, microwave, daylight, DALI-2 and wireless control options saves energy and takes just seconds to fit, just plug-in to the centre of the high bay · · Compact and lightweight, our product can be held in one hand and installed by a single person · · Quick access to LiFePO4 battery compartment for simple replacement · · Removeable driver for easy maintenance · · Impact and corrosion resistant aluminium housing which is 100% recyclable

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: HBA2VEM Categories: , , Brand: Part Number: 2501564013

Description

Technical Specifications  Technical Specifications High / low bay luminaire Rated luminous flux acc. IEC 62722-2-1 24000 lm Rated life time L70/B50 at 25 °C 54000 h Outer diameter 256 mm Maximum system power 150 W Number of lamps 1 Power factor 9 Height/depth 300 mm Luminaire efficacy 160 lm/W Nominal voltage 220 – 240 V Colour temperature 4000 – 4000 K Dimming trailing edge No Dimming leading edge No Replaceable control gear No Dimming LineSwitch No Light source included Yes Suitable for emergency lighting Yes Rated ambient temperature acc. IEC62722-2-1 20 °C Control gear included Yes Dimming 0-10 V Yes Dimming potentiometer (integrated) No Dimming DSI No Dimming DALI No Dimming RF No Dimming with push-button No Dimming DMX No Dimming manufacturer’s proprietary system No Dimming mains voltage modulation No Dimming touch and dim No Dimming 1-10 V No No dimming function No Dimming programmable No Dimming sine wave reduction No Emergency power supply integrated Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2009083
