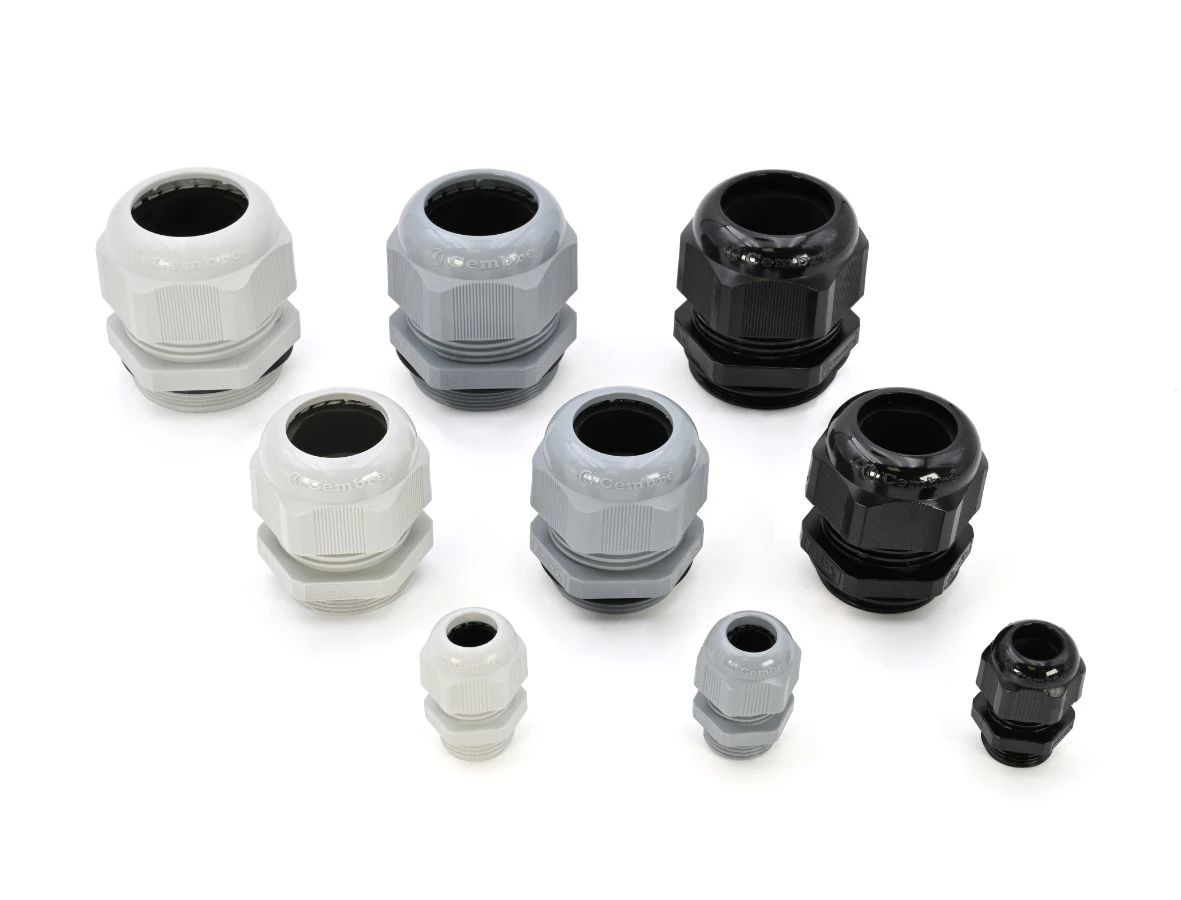

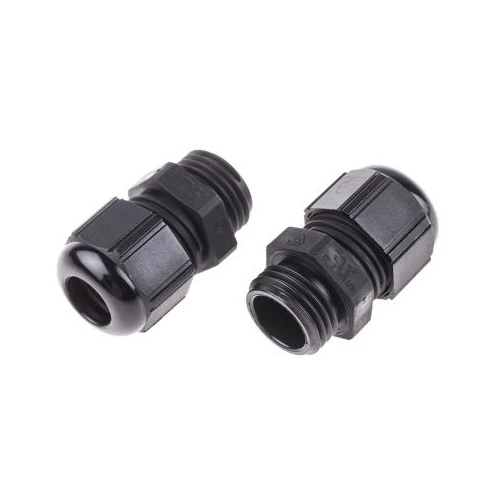

Cembre Maxiblock Gland IP68 M25 Black

Technical Specifications  Technical Specifications Cable gland For ATEX classification, Ex-zone gas None For ATEX classification, Ex-zone dust None Material Plastic Degree of protection (IP rating) IP68 Model Straight Thread type Metric Colour Black Type of sealing Sealing ring Material qualifier Polyamide (PA) Spanner width 30 mm Surface protection Untreated Nominal thread size metric/PG 25 Thread length 10 mm Pitch thread 1.5 mm Hexagon angular dimension 30 mm RAL number 9005 Suitable for cable outer diameter 10 – 17 mm Working temperature -40 – 100 °C Glass fibre reinforced No EMC-version No Explosion-tested version No Screened No With strain relief Yes Locknut included Yes Bend radius protection/trumpet flare No Multi cable sealing No Separable (split) screw gland No Flat cable sealing No Snapping in opening No For armoured cable No Shock resistant No Halogen free No · Technical Data Sheet – Click to Download
