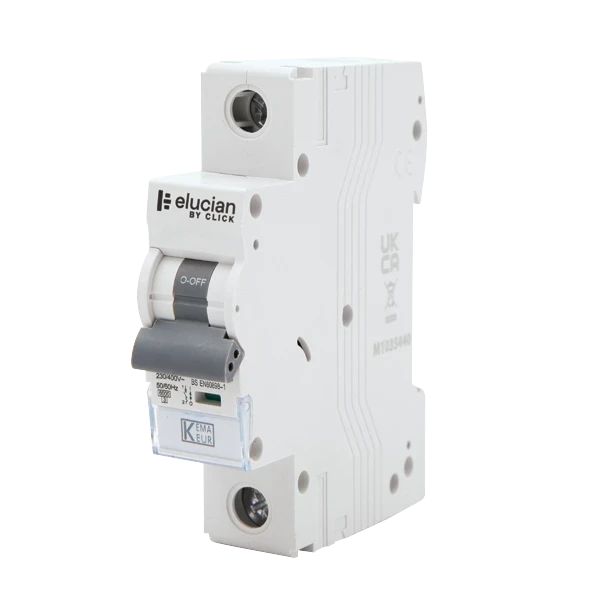

Click 32A B Curve True 6kA MCB
£3.43 Incl. VAT
The Elucian Protective Devices simply click onto the DIN Rail and can be secured with this locking mechanism. This means work can be carried out quicker and without dealing with tight spaces.Lockout devices (available at Unicrimp) are designed to attach to the moving part of the protective device, usually a switch toggle (rocker switch) which moves from the on to off position. This ensures the switch cannot be switched back on while work is being carried out · · · Clip in Devices · · Lock Off Capabilities · · Clear Indication · · 3 Year Product Warranty · · Zigbee Certified Product · · Supplied with cover plate, multi-standard support frame (with removable fins) and 2 removable stickers for fixing the control unit on any substrate · · To be equipped with 2-module plates
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) B Rated insulation voltage Ui 500 V Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Number of poles (total) 1 Number of protected poles 1 Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 6 kA Recess depth 70 mm Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 6 kA Rated voltage 230 V Rated current 32 A Width in number of modular spacings 1 Frequency 50 – 60 Hz Ambient temperature during operating -5 – 40 °C Connectable conductor cross section solid-core 2.5 – 35 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Flush-mounted installation No Explosion-proof No Additional equipment possible No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
